Product Description
Avlex MP-10 Booster Relay Power Supply 12v
The Superlux IS-103a is a complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship and educational institutions.
The IS-103a is a one-channel wired intercom system consisting of a power supply, two belt packs, a compact main station, a rack mounting kit and three intercom headsets.
FEATURES:
- The MP-10 independently provides power to external/internal antenna boosters. This allows complicated external antenna dividing systems to work more efficiently.
- Compensates for signal loss with longer antenna cable runs
- Aluminum casing provides excellent heat dissipation
- Stable 8V DC output voltage.
- Wide coverage bandwidth and low input loss : <1dB@0.1~1GHz，0.6dB@810MHz type
- RF output is fully isolated from DC power.
- Ground circuit for high frequency RF prevents ground loop noise

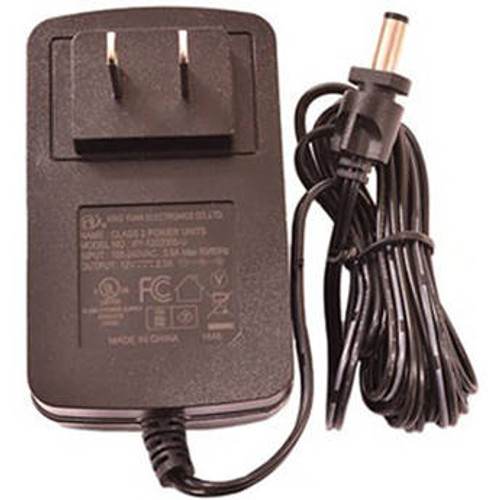

- Includes 12 VDC power supply.
SPECIFICATIONS:
- Input Power: 10~16VDC
- Regulated Output Power: 8V DC / 1A
- Attenuation: 100 MHz~1000 MHz <1dB
- Impedance: 50Ω
- Ground Isolation: RF output, DC ground isolation
- Connector: TNC×2, 2.0mm DC×1
- Dimensions: 90.3(W)×25(H)x55.4(D)mm / 3.5(W)x1(H)x2.2(D)”
- Weight: 100g / 3.5oz
