Product Details

The Mix320-D Personal Mixing System makes it easy to add Aviom monitoring to a Dante-enabled mixing console or audio network. No analog input module or console card is required; inputs get patched directly from your Dante network.

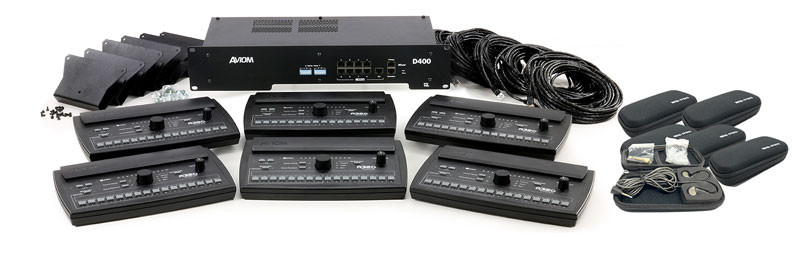

The Mix320-D system includes a D400-Dante A-Net Distributor that allows up to 32 channels to be patched from the Dante network to the personal mixing system inputs. The D400-Dante is also used to supply A-Net digital data and DC power to the mixers. The Mix320-D system includes six A320 Personal Mixer for the performers, plus six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

Intuitive Mixing

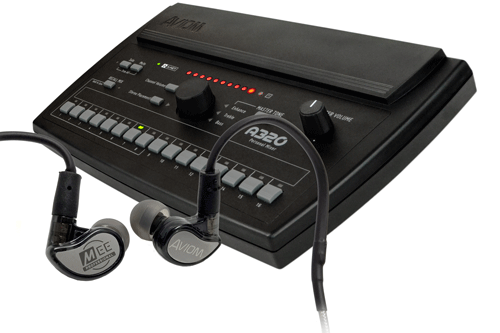

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features a 32-channel mix engine with 16 mono or stereo mix channels buttons and easy to use Stereo Placement controls.

Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.

Distribute Power and Audio Over Cat-5

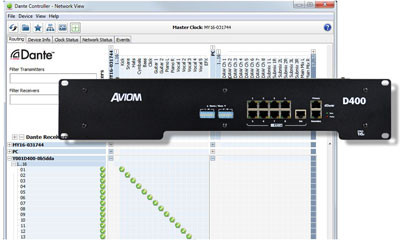

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400-Dante A-Net Distributor.

The D400-Dante also serves as the system's input device; it allows up to 32 channels from your Dante network to be assigned to the eight powered A-Net ports on its front panel. Stereo Link switches allow adjacent channels to be treated as a stereo pairs on the A320 Personal Mixers where they will appear on a single mix channel button.

In-Ears Included

The enhanced version of the Mix320-D system includes six MEE Audio M6 Pro IEMs. The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each IEM set also includes custom-engraved metal faceplates and a protective case.

System Options

The Mix320-D system uses a Dante network for its inputs. If you use a digital console, check out the Mix320-Y Personal Mixing System which includes a Y1 card for Yamaha® consoles for its inputs. Or, if you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need. It includes the 16-channel, line-level AN-16/i Input Module as its front end.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.
