Product Description
Avante Imperio SUB210W Subwoofer (White)
Key Features
- 700W RMS Class-D Amplifier Module
- Two 10" Woofers with 2.5" Voice Coils
- Switching Power Design
- LED Power/Signal/Clip Indicator
- 3-Pin XLR In & Out, powerCON In & Out
- Phase Selection and Selectable X-Over
- Integrated Rigging and Pole Socket
- Overhead Rigging with Optional Flybar
Overview
The white Imperio Sub210 Subwoofer from Avante is a versatile and powerful dual-driver sub designed with flexible controls and physical configurations for a variety of venues or situations, whether ground-stacked or flown. Featuring a powerful 1400W max Class-D amplifier, dexterous I/O, and integrated rigging for a modular setup, the Sub210 can handle everything from small to large stages through the addition of further Imperio speakers or Sub210s.
The Sub210 sports balanced XLR I/O, locking powerCON connectors for power input or speaker linking, selectable crossover frequencies and output modes as well as a robust cabinet constructed from plywood and a steel mesh grille. Whether stacking multiple Sub210s and Imperio speakers vertically, horizontally, or overhead, the Imperio Sub210 is an ideal core unit for any size PA system.
Massive Low-End Power
- 700W RMS Class-D amplifier, 1400W max
- Two 10" woofers with 2.5" voice coils
- Plywood and steel cabinet with 6th order bandpass design for potent projection
- Phase switchable between 0 and 180°
- Internal selectable crossover at 90 or 120 Hz
- Built-in peak limiter circuitry to protect your speakers
Build Your Own System
- Integrated rigging for stacking Sub210s vertically or horizontally (link pins required for vertical stacks)
- M20 pole socket on side and top for mounting line array speakers
- XLR balanced, line-level audio input and output
- powerCON locking inputs and outputs for linking satellite speakers

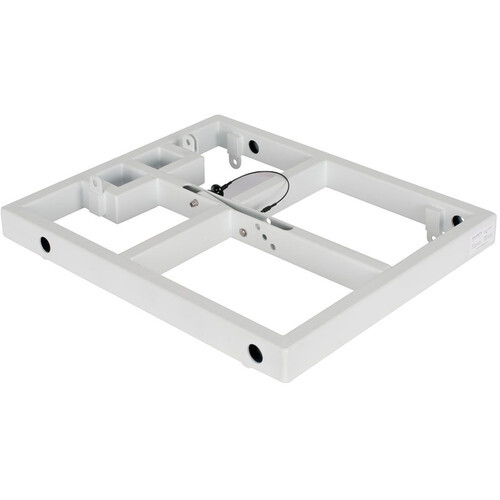

- Flyable mounting of Sub210 and satellites with optional flybar
Specs
Configuration | Active Dual Subwoofer |
Enclosure Type | Bandpass Subwoofer |
Total Power Capacity | 1400 W Peak (at 8 Ohms) |
Amplifier Power Rating | 2 x 350 W RMS (at 8 Ohms) |
Amplifier Class | Class-D |
System Impedance | 8 Ohms |
MF Driver | None |
LF Driver | 2 x 10" / 25.4 cm Woofer |
LF Voice Coil | 2.5" / 6.3 cm |
Frequency Response | 40 Hz to 150 Hz |
Maximum SPL | 124 dB (Peak) |
Protections | AC Fuse, RMS, Signal Limiter |
Audio I/O | 1 x XLR 3-Pin Female Balanced Line Input 1 x XLR 3-Pin Male Balanced Line Output |
Network I/O | None |
USB | None |
Wireless Connectivity | None |
Crossover | High-Pass: 90 / 120 Hz |
EQ | None |
Parametric EQ | None |
Semi-Parametric EQ | None |
Filters | None |
Dynamic Processing | Peak Limiter |
Alignment Delay | None |
Phase Adjustment | 0 / 180° |
AC Input Power | Factory Selectable: 100 to 120 VAC, 50 / 60 Hz (T 8 A H 250 V) 220 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V) |
AC Power I/O | 1 x powerCON Input (Locking) 1 x powerCON Output (Locking) |
Mounting | 1 x M20 Pole Socket (Top) 1 x M20 Pole Socket (Side) 4 x Integrated Rigging (Each Side) 4 x (Bottom, Top) |
Handles | 2 x Top 1 x Each Side |
Construction Material | Plywood, Stainless Steel Grille |
Certifications | ETL *as per Manufacturer |
Dimensions | 14.3 x 26.4 x 22.6" / 36.3 x 67.1 x 57.4 cm |
Weight | 76 lb / 34.5 kg |
