Product Description
Audix DP4 Four Piece Drum Microphone Package

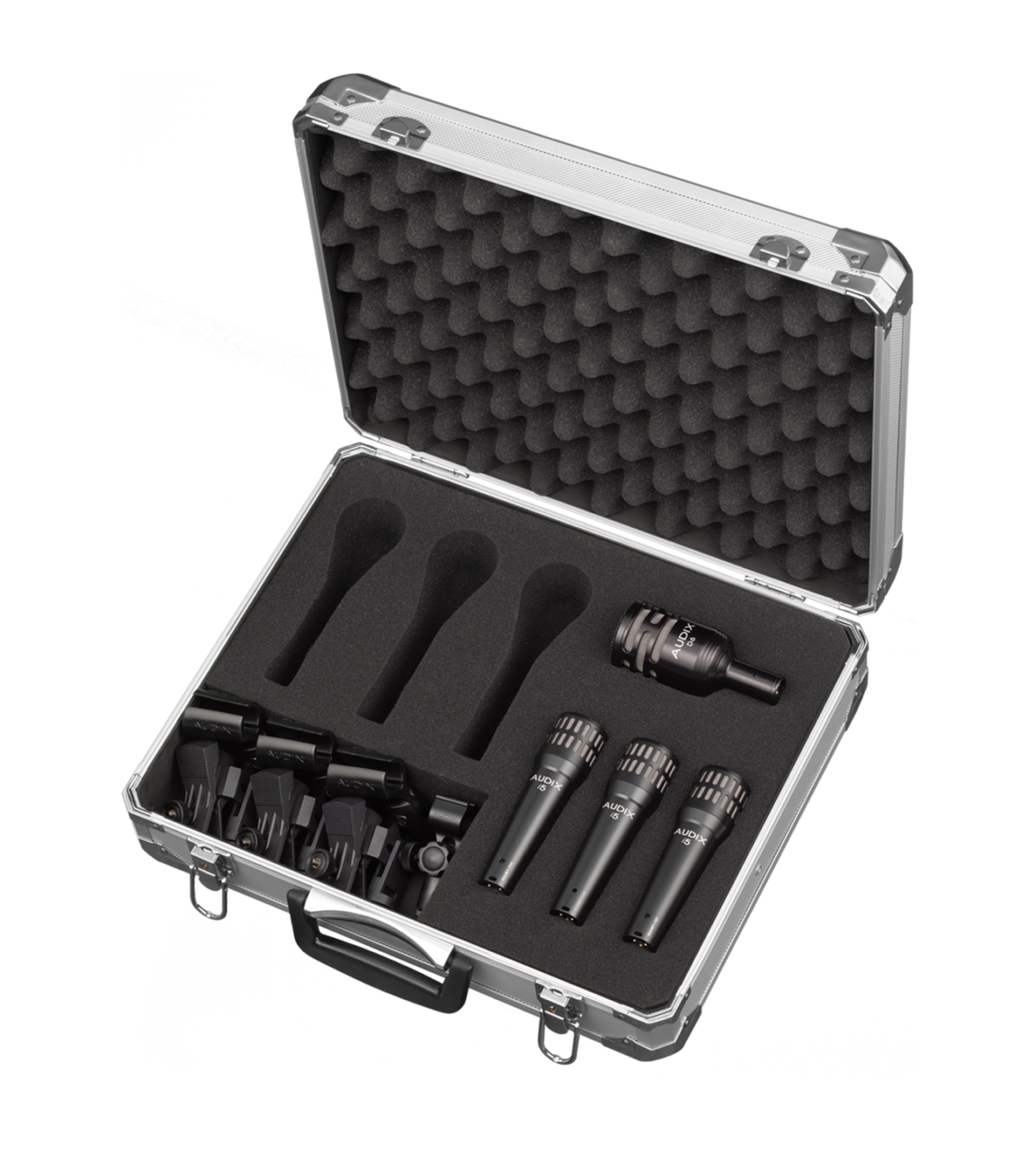

The DP4 is a perfect complement of dynamic microphones for close miking of a variety of sources on-stage or in the studio. Included in the DP4 microphone package are the D6, Audix’s flagship dynamic kick drum microphone, and three i5s, Audix’s best-selling instrument microphone. Also included are three DFLEX mic mounts for easy attachment to a wide variety of instruments. All microphones and clips are conveniently packaged in a foam-lined aluminum carrying case for travel and safekeeping when the microphones are not in use. The case also features three additional expansion slots for vocal microphones.
WHAT'S IN THE BOX?
- 3x i5 Snare Drum Microphones
- 1x D6 Kick Drum Microphone
- 3x MC1 Microphone Clips
- 3x DFLEX Mounts
- 1x DCLIP Microphone Clip
- 1x Aluminum Road Case
USER TIPS

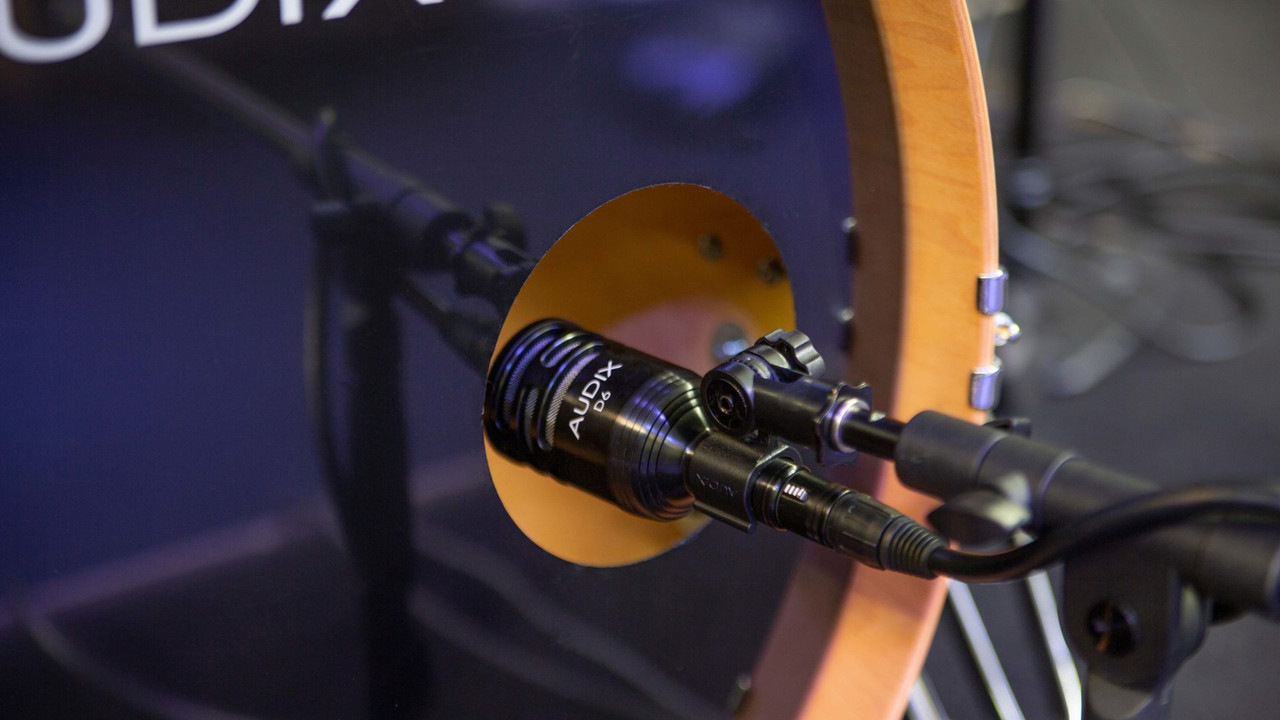

- D6 - Kick Drum: To position the D6, a good starting point is a few inches inside the port of the front head with the mic pointing off-center and not directly at the beater. For more attack, move the mic closer towards the beater. For more bass, pull the mic farther away from the beater.
- D6 - Bass Cabs: For bass cabinets, position the mic 90 degrees to the grill cloth and 1-2 inches inside the edge of the speaker.
- i5 - Snare and Toms: A good starting point is 2 inches above the rim with the mic pointing towards the center of the head. For more “rim” sound, pull the mic back closer to the rim. For more resonance and depth of field, pull the mic farther away from the head. The trick is to find the right balance between resonance and attack while still controlling bleed from the other drums.
- i5 - Guitar Cabs: The i5 can be placed within 1-2 inches of the grill cover at a 90 degree angle pointing directly towards the speaker. As the mic is placed closer to the edge of the speaker, you will minimize the higher frequencies and get a warmer, fatter tone. To capture more highs, move the mic closer towards the center of the speaker.
