Product Description

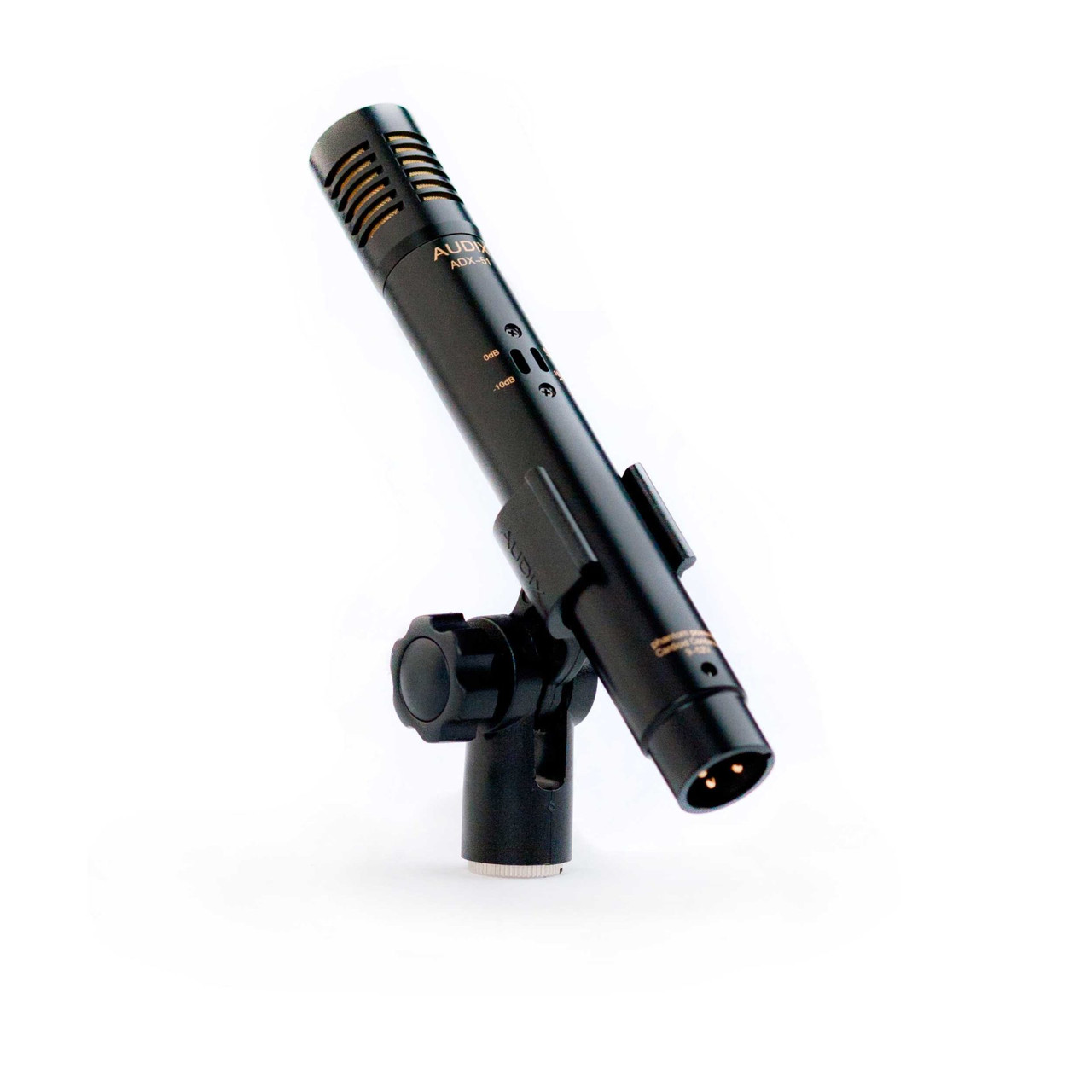

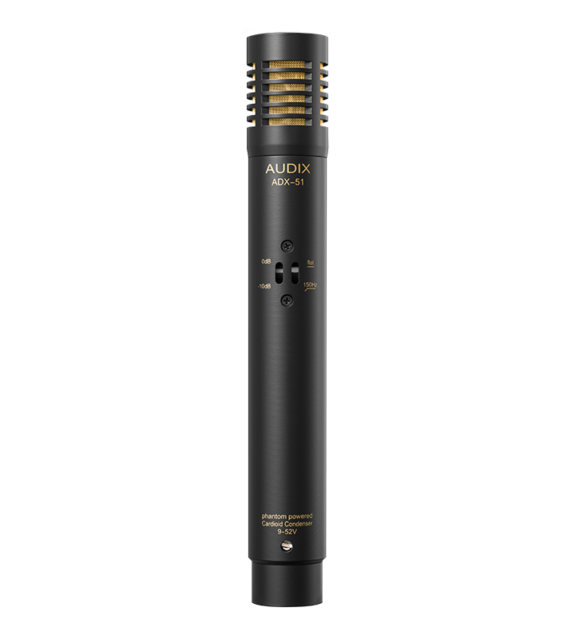

Audix ADX51 Professional Electret Condenser Microphone
The ADX51 is a professional pre-polarized condenser microphone used for stage, studio, and broadcast applications. The ADX51 is known for its clear, accurate response and flexibility to handle close or distance miking for a wide variety of acoustic instruments.
Characterized with a uniformly controlled cardioid polar pattern, the ADX51 condenser microphone is designed to capture the acoustics of the instrument being miked while at the same time isolating it from the rest of the instruments on stage. With a wide frequency range of 40 Hz – 18 kHz, the ADX51 features a 14 mm gold vapor diaphragm and a -10 dB pad and bass roll-off filter at 150 Hz.
The ADX51 cardioid studio condenser microphone is very easy to position, durable, and manufactured to high standards and tight tolerances. The ADX51 has a precision machined brass body, durable black E-coat finish, steel mesh grill, and gold plated XLR connector.
WHAT'S IN THE BOX?
- 1x ADX51 Studio Condenser Microphone
- 1x DCLIP Microphone Clip
- 1x WS81C External Windscreen
- 1x P1 Carrying Pouch
FEATURES
- Premium electret condenser microphone
- Smooth accurate frequency response
- Switches for -10 dB pad and bass roll-off
- Designed, assembled & tested in the USA
- 3 year warranty
APPLICATIONS
- Drum overheads, hi hat, cymbals
- Acoustic instruments
- Percussion table
- Group vocal, spoken word
- Ambient room miking
- Audience mics for in-ear monitors
SPECIFICATIONS
Transducer Type | Pre-Polarized Condenser |
Frequency Response | 40 Hz – 18 kHz |
Polar Pattern | Cardioid |
Output Impedance | 100 ohms |
Sensitivity | 17 mV / Pa @ 1k |
Capsule Technology | Black Electret GV Diaphragm |
Off-Axis Rejection | >15 dB |
Maximum SPL | ≥132 dB |
Power Requirements | 9-52 V Phantom |
Connector | 3-pin XLRm |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Materials / Finish | Brass / Black Finish |
Weight | 184 g / 6.5 oz |
Length | 160 mm / 6.3 in |
Other Details
Unless otherwise noted in the products listed below, all Audix products purchased in the USA feature a one-year limited warranty. All Audix products are warranted to the original purchaser to be free of defects in materials and workmanship from date of purchase as follows: 5 years for VLM Dynamic microphones 3 years for Fusion Series and Condenser microphones 1 year for all other products If a product fails within the warranty period due to materials or workmanship, Audix will repair or replace said product at Audix discretion, at no charge with proof of purchase from an authorized Audix dealer. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage, or failure to use or maintain the product per the supplied instructions. No Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any, for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of any kind. OTHER THAN THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THESALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. GOVERNING LAW: This agreement will be governed by and construed in accordance with the laws of the state of Oregon. Venue for any action or proceeding shall exclusively be in Multnomah County, Oregon, U.S.A.Product Videos
