Product Description

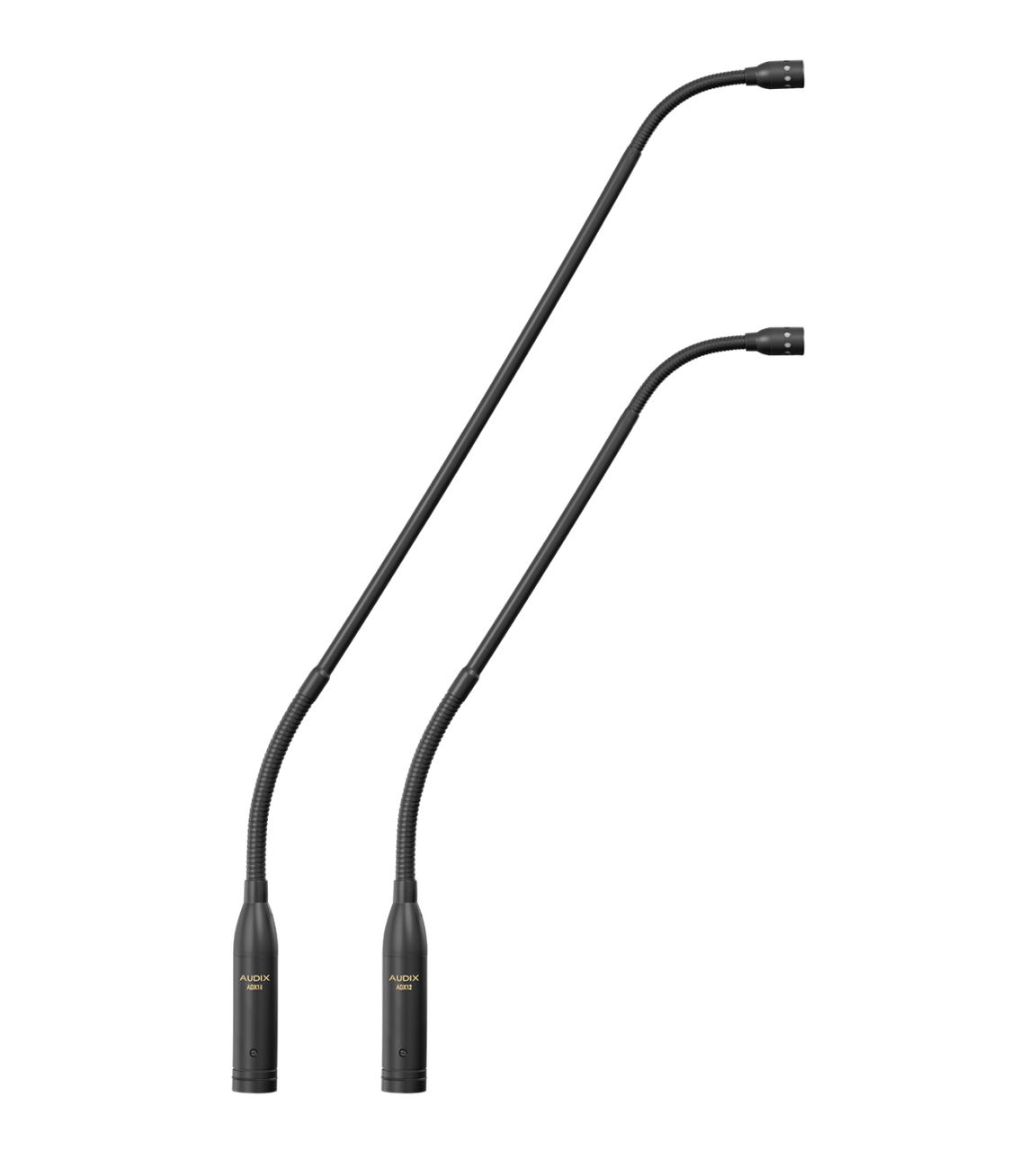

Audix ADX12 Miniature Gooseneck Condenser Microphone
The ADX12 is a professional miniature gooseneck condenser microphone designed for applications such as podium, presentation, meetings, and teleconferencing.
With a uniformly controlled cardioid polar pattern, the ADX12 helps isolate the speaker from ambient noise. The ADX series is available in a hypercardioid polar pattern for tighter pick-up control.
The ADX12 is designed with integrated preamp circuitry built into the base of the XLR. It can be mounted permanently via the supplied flange mount or with an optional base with an internal shock mount (see model ATS10, ATS1, ATS1L). The microphone may also be used on a standard microphone stand using the DCLIP snap to fit the microphone holder.
Designed, manufactured, assembled, and tested by Audix in the USA.
WHAT'S IN THE BOX?
- 1x ADX12 Miniature Gooseneck Microphone
- 1x TM1218 Flange Table Mount
- 1x WS1218 External Windscreen
FEATURES
- Natural accurate sound
- Interchangeable capsule
- Low profile design
- Dual gooseneck sections allows for precise positioning
- Low noise electronics
- Available with cardioid or hypercardioid polar pattern
- Designed, assembled, manufactured & tested in the USA
APPLICATIONS
- Pulpit, podium
- Board meetings, teleconferencing
- Video, recording
- Room security or monitoring
SPECIFICATIONS
Transducer Type | Pre-Polarized Condenser |
Frequency Response | 40 Hz – 18 kHz |
Polar Pattern | Cardioid/Hypercardiod |
Output Impedance | 150 ohms |
Sensitivity | 24 mV (C) / Pa @ 1k 30 mV (HC) / Pa @ 1k |
Equivalent Noise Level | 28 dB (A weighted) |
Signal to Noise Ratio | 66 dB |
Maximum SPL | ≥120 dB |
Power Requirements | 18 – 52 Volts phantom |
Connector | 3-pin XLRm |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Materials / Finish | Machined Aluminum / Black Finish |
Weight | 113 g / 4 oz (ADX12) 159 g / 5.6 oz (ADX18) |
Length | 403 mm / 16 in (ADX12) 558 mm / 22 in (ADX18) |
