Product Description
Audio-Technica ATW-F560EE1 Band-Pass Filter 530-590 MHZ
Overview
Band-Pass Filter Pair
These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range.
Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.
Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.
Features
- Passive operation
- Industry-standard BNC-type connectors
- Pair

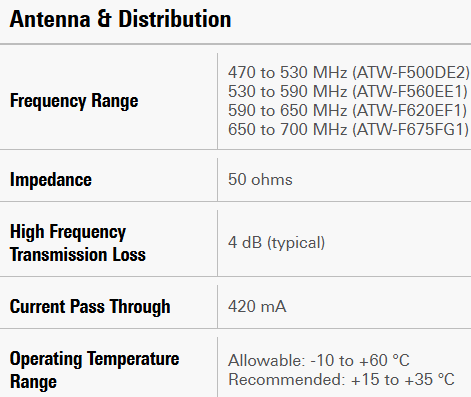

Specifications
