Product Description

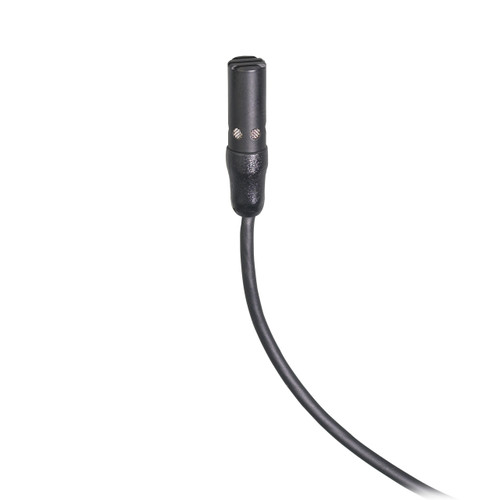

Audio-Technica AT899 Subminiature Omnidirectional Condenser Lavalier Microphone
Audio-Technica’s omnidirectional AT899 is engineered for intelligible, accurate voice reproduction. Its low-profile design (a mere 5 mm in diameter) assures minimum visibility. The mic may be worn as a lavalier and is easily hidden in clothing or hair. It offers the convenience of battery or phantom power; its switchable low-frequency roll-off reduces popping.
Features:
- Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and houses of worship
- Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
- Operates on battery or phantom power
- All wireless models available in either low-reflectance black or beige

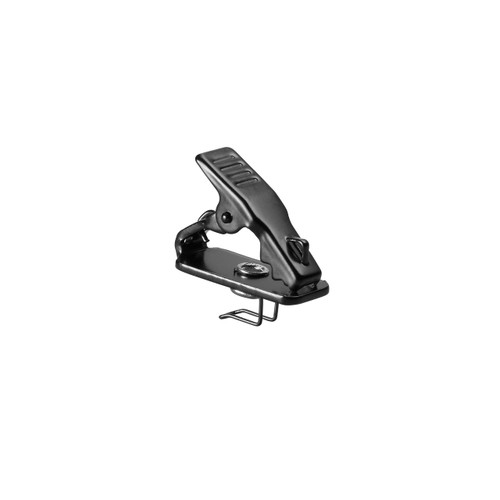

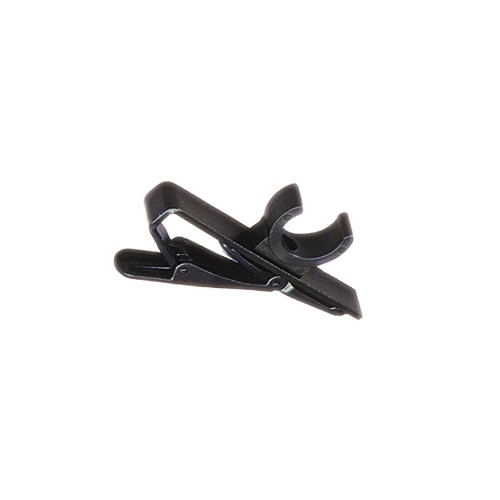

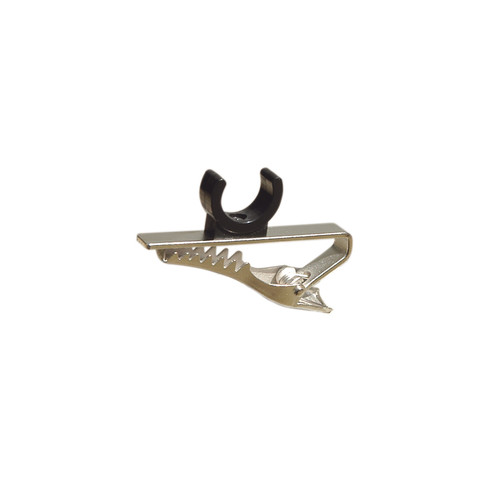

- Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, element covers, interchangeable single and double mic holders
- Accessories available separately include complete accessory kits, clothing clips, three-pack element covers and three-pack windscreens
- 9.8' (3.0 m) cable permanently attached to mic, TA3F connector at power module
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
- Also available as:
AT899c – less power module; 55" (1.4 m) cable, unterminated
AT899c-TH – same as AT899c but in "theater" color (beige)
AT899cL4 – less power module; 55" (1.4 m) cable terminated with Lemo connector for Sennheiser SK wireless systems
AT899cL4-TH – same as AT899cL4 but in "theater" color (beige)
AT899cT4 – less power module; 55" (1.4 m) cable terminated with TA4F connector for Shure wireless systems
AT899cT5 – less power module; 55" (1.4 m) cable terminated with TA5F connector for ATW-U101 body-pack wireless system
AT899cT5-TH – same as AT899cT5 but in "theater" color (beige)
AT899cW – less power module; 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak™ wireless systems
AT899cW-TH – same as AT899cW but in "theater" color (beige)
Specifications:
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Omnidirectional |
| FREQUENCY RESPONSE | 20-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
| OPEN CIRCUIT SENSITIVITY | Phantom: -43 dB (7.0 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa |
| IMPEDANCE | Phantom: 200 ohms Battery: 250 ohms |
| MAXIMUM INPUT SOUND LEVEL | Phantom: 138 dB SPL, 1 kHz at 1% T.H.D. Battery: 116 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | Phantom: 108 dB, 1 kHz at Max SPL Battery: 86 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 64 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| BATTERY TYPE | 1.5V AA/UM3 |
| BATTERY CURRENT / LIFE | 0.4 mA / 1200 hours typical (alkaline) |
| SWITCH | Flat, roll-off (recessed) |
| WEIGHT (MICROPHONE) | 0.02 oz (0.5 g) |
| WEIGHT (POWER MODULE) | 3.6 oz (102 g) |
| DIMENSIONS (MICROPHONE) | 0.63" (16.0 mm) long, 0.20" (5.0 mm) diameter |
| DIMENSIONS (POWER MODULE) | 5.71" (145.0 mm) long, 0.83" (21.0 mm) diameter |
| OUTPUT CONNECTOR (POWER MODULE) | Integral 3-pin XLRM-type |
| CABLE | 9.8' (3.0 m) long (permanently attached to microphone), 0.08" (2.0 mm) diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module |
| ACCESSORIES FURNISHED | AT8537 power module; AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two element covers; two windscreens; battery; protective carrying case |
| AUDIO-TECHNICA CASE STYLE | M29 |
| Click on the chart to view the larger image |
| POLAR PATTERN |
|
|
| FREQUENCY RESPONSE |
|
|
