Product Description

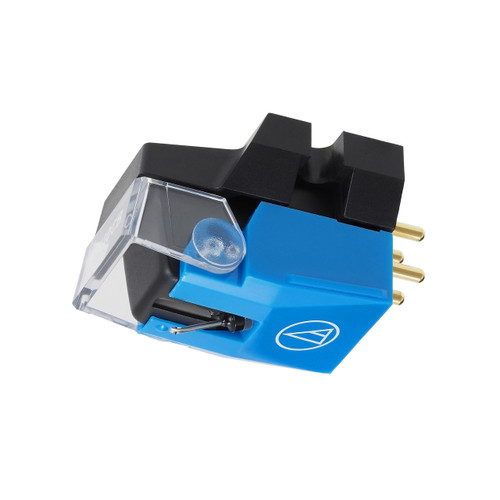

Audio-Technica AT-VM95EN Dual Moving Magnet Cartridge
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Specifications
Frequency Response | 20-23,000 Hz |
Channel Separation | 22 (dB at 1 kHz) |
Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
Stylus Construction | Nude round shank |
Recommended Load Impedance | 47,000 ohms |
Output | 3.5 mV (1 kHz, 5 cm/sec.) |
Channel Balance | 2.0 dB (1 kHz) |
Stylus Shape | 0.3 x 0.7 mil elliptical |
Cantilever | Aluminum pipe |
Mount | Half-inch |
Replacement Stylus | AT-VMN95EN |
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Load Capacitance: 100 to 200 pF
Coil Inductance: 550 mH (1 kHz)
Vertical Tracking Angle: 23°
Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Weight: 6.1 g (0.22 oz)
Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
