Product Description

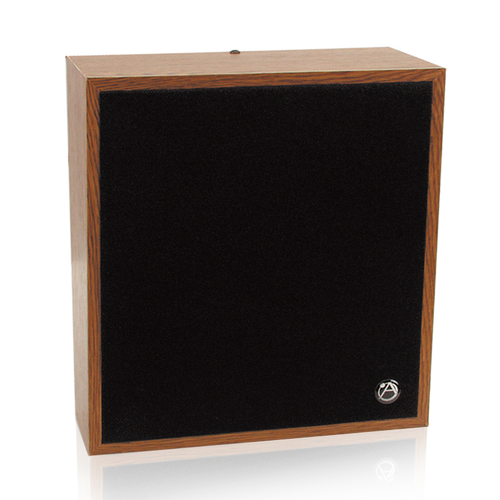

Atlas Sound WD417-25 8-inch Slant Wall Mount Speaker/Baffle Package, Pair
These speaker/baffle packages feature a walnut grain wall baffle/enclosure with an attractive black fabric grille.
Baffles are designed with a 9.5° slope to provide directional sound dispersion offset in the direction of radiation.
Each package contains a high-quality 8" dia. speaker with a 5-ounce ceramic magnet and pre-assembled 25 Volt transformer.
Features
- 9.5° Sloped Design Offers Directional Sound Projection
- Attractive Design is Suitable for Use in a Variety of Surface- Mount Applications
- Includes High-Quality 8" Loudspeaker with 25V Line Transformer
Specs
- Power Taps: .5, 1, 2, 4
- Magnet: 5.0 oz. (132g) Ceramic
- V.C. Diameter: 1" (25mm)
- V.C. Impedance: 8Ω
- Flux Density: 9,200 Gauss
- Sensitivity: 96dB @ 1W/1M
- Frequency Response: 50Hz - 15kHz
