Product Description

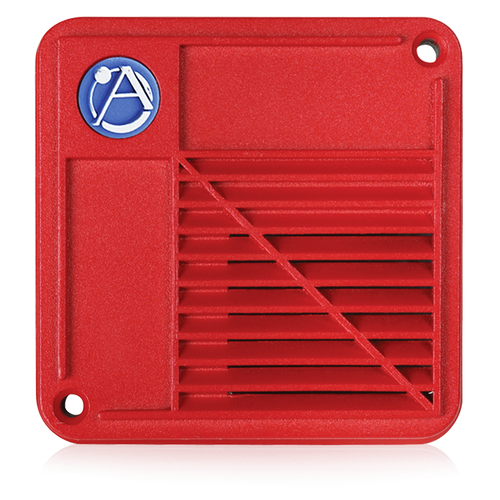

Atlas Sound VTF-152UCR Voice/Tone Compression Driver Speaker - Red

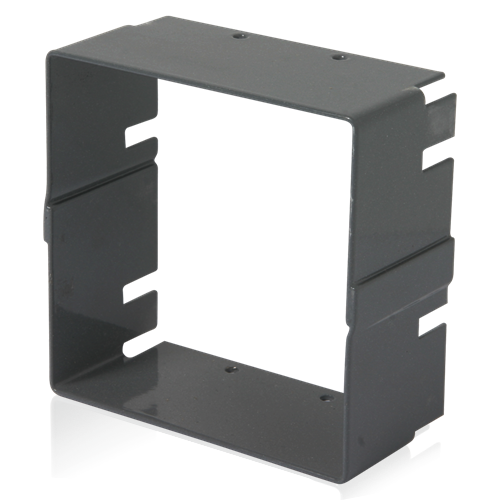

Through proven performance, patented VT/VTF Series have earned worldwide acclaim for service reliability. These cost-effective units offer compact size, functional flexibility, optimum intelligibility, effective sound distribution, and high-level output. All models contain a highefficiency compression driver with maximum acoustic conversion efficiency. (A quality which reduces number of units needed to attain specified sound pressure levels and provides substantial savings in amplification-power requirements and labor costs.) Die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use. Selection includes a basic 8-ohm version and 70.7 or 25-volt transformer models with DC blocking capacitor (C) where noted. All models terminate via barrier strips. VT Series models are surface-mount units; VTF Series are flush-mount units for recessed installation. VT Series mounts standard 4" E.O. Boxes; VTF Series mount 4" or 4 11/16" SQ backboxes and require model AR or MR adapter rings respectively (order separately) Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings. Suffix model with color: Red (R) or Neutral Gray (N). Ex: VT-157UCS.
Features
- 25 V
- Communications, Intercom, Electronic Alarm, and Monitoring Systems
- High Efficiency Compression Driver for Optimum Audio Intelligibility
- Metal Die-Cast Construction with Integral Exponential Horn
- Operates Within a Temperature Range of -30° F to 150° F
- Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
- Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
- UL-Recognized Speaker Component
- Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant
Specs
- Height: 6" (15.24 cm)
- Depth: 3 3/16" (8.09752 cm)
- Shipping Weight: 3.60 lbs (1.63 kgs)
- Frequency Response: 600Hz - 55kHz
- Sensitivity: 96.9dB (1W/1m)
- Power Taps: 15, 8, 4, 2
- Transformer: 25 V
- Safety Listed: 1480
