Product Description

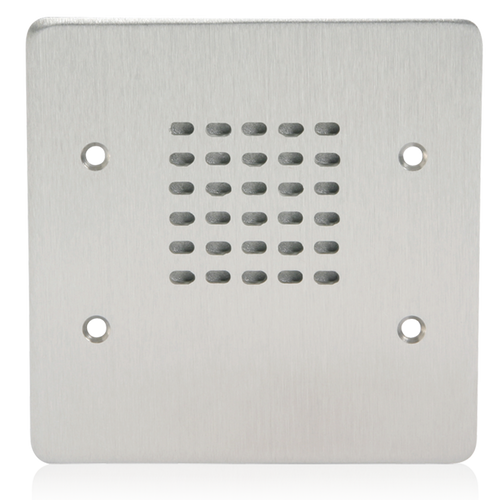

Atlas Sound VPCS-3GPB-245 3-Gang Intercom Station
Atlas-Sound’s VPCS Series 3-gang intercom systems (Patent applied for) provide superior intelligibility for one or two-way communication in high-security applications. Units are designed for installation in detention, correctional, and institutional facilities. VPCS intercom stations are also ideal for use in high-risk public-access spaces such as hallways, lobbies, and parking garages. Units withstand abuse, moisture, corrosion, dust, vibration, and temperature extremes from -10° to 150° F.
Features
- Shallow Depth of 2 1⁄8" (54mm) for Mounting in Standard 2 & 3-Gang Back Boxes
- Moisture-Resistant 2 1⁄2" (64mm) Diameter Cone Loudspeaker
- Offers Smooth Loudspeaker Response with High Output in the Speech Range
- Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
- Choice of Basic or Call Switch Equipped Models
- Unit Design Facilitates Quick and Easy Service Procedures
- Transformer Models Include 1⁄4, 1⁄2, 1, and 2 Watt Taps at 25V
- Durable 11-Gauge, Stainless Steel Face Plate
Specs
- Height: 4 3/4" (12.07 cm)
- Width: 6 3/8" (16.19 cm)
- Depth: 2 1/8" (5.398 cm)
- Shipping Weight: 4.00 lbs (1.81 kgs)
- Frequency Response: 350Hz - 45kHz
- Sensitivity: 88dB
- Power Taps: .25, .5, 1, 2
- Transformer: 25V
- Nominal Impedance: 45Ω
- Speaker Size: 2 1⁄2" (64mm)
- Power Handling: 5 Watts
