Product Description
Atlas Sound SM194-89 Surface Mount Clock/Speaker Enclosure
Use AtlasIED 194 Series protective enclosures for recessed or surface mounting of 830 Series clock/speaker baffles. The 194 Series models contain 12 triple-compound conduit knockouts (six on both top and bottom) to facilitate easy wiring; 195 Series has 12 knockouts (four on both top and bottom, two at each end). Enclosures are constructed of 20-gauge CRS and are heavily undercoated to prevent mechanical resonances. Units contain a compartment divider to separate high and low voltage wiring. Models for surface application include an (SM) prefix and are finished in textured white epoxy to match the clock/speaker baffle panel.
Features
- All Models Include Provisions for Easy Installation of Standard 8" Loudspeakers.
- Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
- Recessed and Surface Mounting Styles Meet Installation Requirements.
- Reliable Design Installs Quickly in New or Retrofit Construction
Specs
HEIGHT | 14 1/8" (35.8775 cm) |
WIDTH | 26 5/8" (67.6275 cm) |
DEPTH | 3" (7.62 cm) |
SHIPPING WEIGHT | 9.50 lbs (4.31 kgs) |

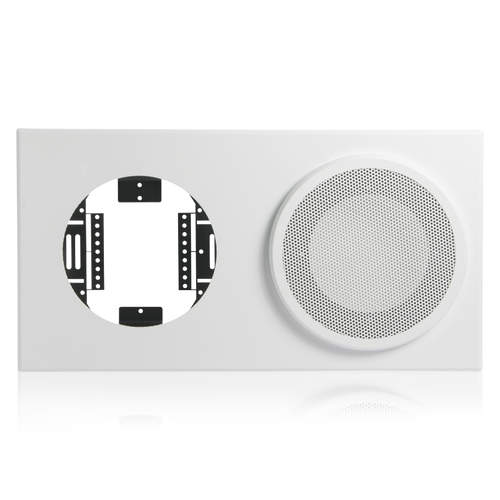

MOUNTS BAFFLE | 830-89A |
