Product Description

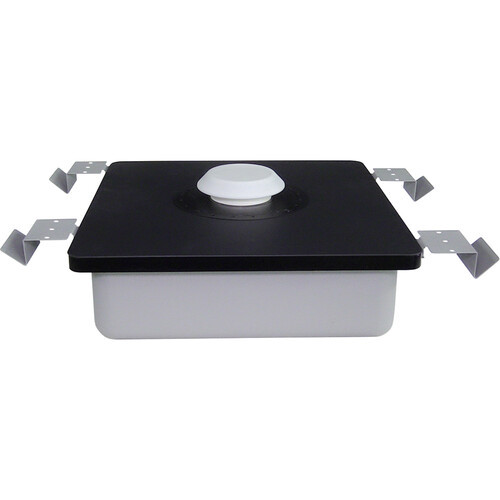

Atlas Sound SHS-6T2 Strategically Hidden Loudspeaker with 32-Watt 70/100V Transformer and Enclosure
Overview
The Atlas Sound SHS-6T2 Strategically Hidden Loudspeaker with 32-Watt 70/100V Transformer and Enclosure is a strategically hidden ceiling speaker. It is designed to blend into the aesthetic of any ceiling while retaining optimal sound performance. The perfect speaker for architecturally impressive environments where you want your high-definition audio heard, not seen. It comes packaged with three different adaptive dispersion lenses for a variety of applications and installation locations.
Features
- Includes 3 x Adaptive Dispersion Lenses
- 3" of Lens is Visible
- Installation Parts Built into Enclosure
- Installation Height from 10 to 14'
Specifications
Speaker Type | Coaxial |
Sensitivity | 86dB (1W/1m) |
Power Taps | 4, 8, 16, 32-Watts (70.7V) |
Power Taps | 8, 16, 32-Watts (100V) |
RMS Power (Watts) | 75 @ 4Ω |
Frequency Response | 100Hz - 15kHz (DSP Corrected) |
Dispersion | 130°, 2kHz Octave Band with 4mm Dispersion Lens |
Cut Out Diameter | 2.75" (69.85mm) |
Certified To Safety Listing | UL1480 / UL2043 |
Dimensions (HxWxD) | 12.73" (323.3mm) x 12.73" (323.3mm) x 3.92" (99.6mm) |
