Product Description
Atlas Sound RX14-25 25-inch Deep 14RU Mobile Equipment Rack
The RX14-25 mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.
Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.
Cabinet is 25 1/2" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.
Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange.
The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

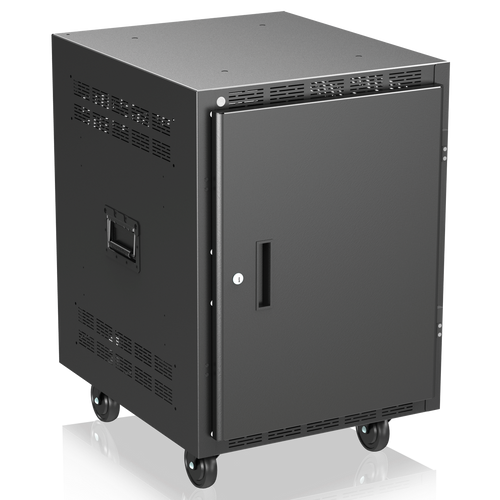

Shown with optional front door: SFD14.
Cabinet is finished in #962 black epoxy.
Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.
Cabinet is 25 1/2" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.
Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange.
The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.
Shown with optional front door: SFD14.
Cabinet is finished in #962 black epoxy.
Features
- 16-Gauge CRS Frame Manufactured to E.I.A. Standards
- Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
- Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
- Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
- Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
- Optional Removable Front Doors (Right or Left-Hand Hinging) is Available and is Identically Keyed to the Rear Door for Security and Convenience
- RR14 Optional Rear Mounting Rails Available
- Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
- Standard Rack Includes Base, Top Panel, Side Panels, and Casters
- Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
- Welded Frame for Long-Lasting Durability
Included
- Base, Top Panel, Side Panels, Casters, Handles, Rear Door, Fully Assembled
- Welded 16-gauge Cold Rolled Steel (CRS) Construction
- SFD Version Include Solid Front Door
- Vented Top, Base, Sides, and Rear Door
- One Pair of 12-Gauge, CRS Fixed Mounting Rails with Hash Marks to Denote RU Increments
- Removable Left/Right Rear Door with Identically Keyed Lock
- Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
Specs
RACK UNITS | 14 |
HEIGHT | 33 9/16" (85.25 cm) |
WIDTH | 22 5/16" (56.68 cm) |
DEPTH | 25 1/2" (64.77 cm) |
USABLE DEPTH | 24" (60.96 cm) |
