Product Description

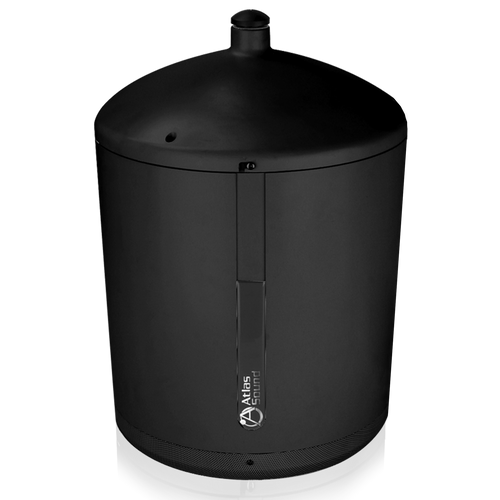

Atlas Sound PM8FA 8-inch 2-Way Pendant Mount Speaker
The AtlasIED PM8FA features the familiar response and dispersion of AtlasIED’s model FA138 high performance 8” Strategy Series driver. This speaker is the same FA Series device used in AtlasIED’s successful model FAP82T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM8FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications.
Attaching a PM8FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).
Available in Black or White.
- 70.7V Taps @ 1.9, 3.8, 7.5, 15, 30 & 60 Watts Plus 8-ohm Direct Input via Concealed Terminal Block
- Outstanding Full Range Frequency Response of 65Hz - 20kHz
- 8" FA138 Driver Provides 100 Degree (50 Degree Off-Axis) Coverage in the 2kHz Octave Band
- 3 Meters of 2mm Cable & Mounting Hardware Included
- Compatible with Standard 3/4" Ceiling Fan Hardware
SPEAKER TYPE | Coaxial |
SENSITIVITY | 90dB Average |
FREQUENCY RESPONSE | 65Hz - 20kHz |
IMPEDANCE | 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω |
DISPERSION | 100˚ |
HF DRIVER | Coaxially Mounted PEI Dome Tweeter |
