Product Description
Atlas Sound MAGPIE1-1 Atlas Learn MAGPIE Wireless Mic/IR Dome Kit

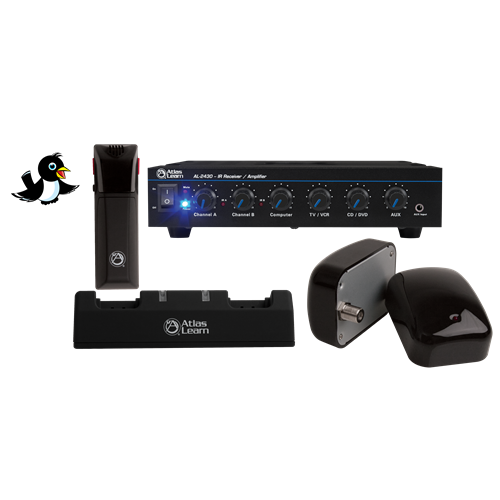

The Atlas Learn MAGPIE1-1 complete kit is the ideal solution for smaller classrooms or boardrooms. The kit includes one (1) AL2450 amplifier/receiver, one (1) AL-MAGPIE wireless microphone, one (1) AL-MAGPIE-NEST charging station, one (1) infrared dome transmitter, and ten (10) meters of coaxial cable to connect the AL-IRDS with the AL2450. This kit allows you to get all the benefits of the Atlas Learn system without paying for parts or accessories that are not needed.
AtlasIED offers a full line of compatible in-ceiling or surface mount speakers that can be used with an Atlas Learn system.
- AL2450 6 Input Mixer with Priority Page Override
- Front Panel Source Volume Control
- Supports Up to Two Infrared Wireless Microphone Transmitters
- AL-MAGPIE Wireless Infrared Microphone Transmitter
- AL-IRDS Includes 10m Coaxial Cable for Connection to AL2450

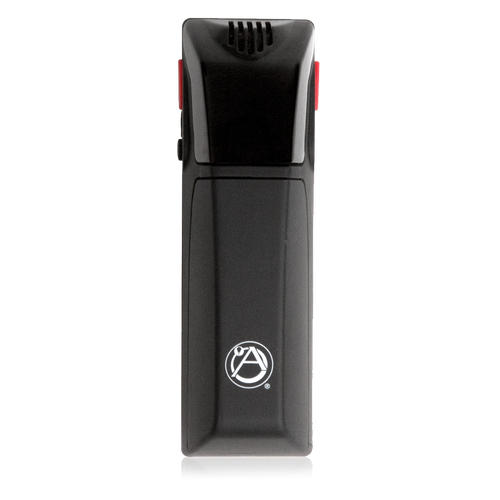

AL-MAGPIE Microphone Specifications
| IR Led’s | 6 |
| Aux Input | 1, 3.5mm Phono Jack, Mic Level |
| External Controls | Power, Panic, Mic Volume |
| Internal Controls | Lockout, Mic A/B Channel |
| Dimensions | 1.15" x 1" x 3.8" (29mm x 25mm x 97mm) |
| Weight with Battery | .14lb (65g) |
| Weight without Battery | .08lb (36g) |
AL-MAGPIE-NEST Charging Station Specifications
| AL-MAGPIE Ports | Two Charging Ports |
| Charge Indicator LED’s | Two Charge Indicator LEDs |
| PSU Type | 100VAC – 240VAC, 50/60Hz, 0.2A, 5VDC, 1A |
| Dimensions | 13 ⁄4" x 61 ⁄2" x 23 ⁄4" (45mm x 165mm x 70mm) |
AL2450 Amplifier/Receiver Specifications
| Type | Receiver / Amplifier |
| Multimedia Input Sensitivity | -10dB |
| Priority Page Input Sensitivity | 14dB |
| Computer Input Impedance | 56K |
| Multimedia Input Impedance | 22K |
| Multimedia Input Connector Type | Dual RCA |
| AUX Front Input Connector Type | 3.5mm |
| Line Output Impedance | 1K |
| Line Output Voltage | 1.3V |
| Line Output Connector Type | Dual RCA |
| Mic EQ (100Hz, 3kHz, & 10kHz) Adjustment | ±10dB |
| IR Input Impedance / Connector Type | 75Ω F Connector |
| Panic Output Contact Rating | 5A@ 36V |
| Speaker Output | 50W RMS @ 8Ω, 25V or 70.7V |
| In Line PSU Type | 100V–240V In, 24VDC / 2.5A Out |
| Dimensions | 81 /2" W x 13 /4" H x 131 /2" D (216mm x 45mm x 343mm) |
| Weight | 5.75lbs (2.6kg) |
