Product Description

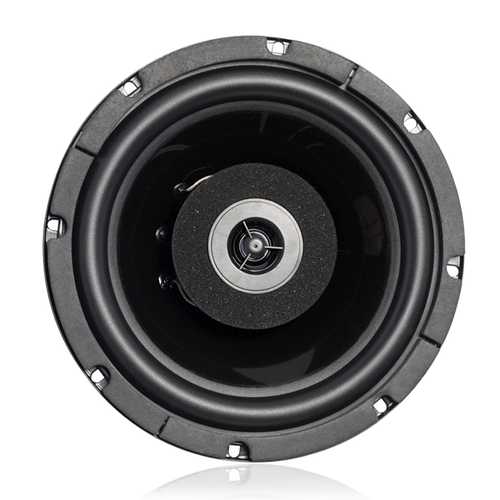

Atlas Sound FA138T167 8-inch Coaxial Speaker
Model FA138T167 is AtlasIED's premium 8" coaxial speaker with a factory installed, high efficiency 16 Watt 70.7V transformer.
The speaker includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid cooled tweeter for clean and powerful weather-resistant performance.
The integral 16 Watt 70.7V transformer features a 40Hz - 15kHz frequency response (±1dB) with 4, 8 and 16 watt primary taps.
For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.
Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.
For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.
Features
- 100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
- Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring
- Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity
Specs
SPEAKER TYPE | Coaxial |
SENSITIVITY | 89.5dB Average, 93dB Peak |
POWER TAPS | 4, 8, & 16 Watts |
FREQUENCY RESPONSE | 75Hz - 20kHz |
DISPERSION | 110° |
DEPTH | 5 3/4" (14.605 cm) |
DIAMETER | 8 1/4" (20.955 cm) |
SHIPPING WEIGHT | 7.42 lbs (3.37 kgs) |
MOUNTING DIMENSIONS | 7 3⁄4" (197mm) Bolt Circle |
SAFETY LISTED | 1480 |
