Product Description

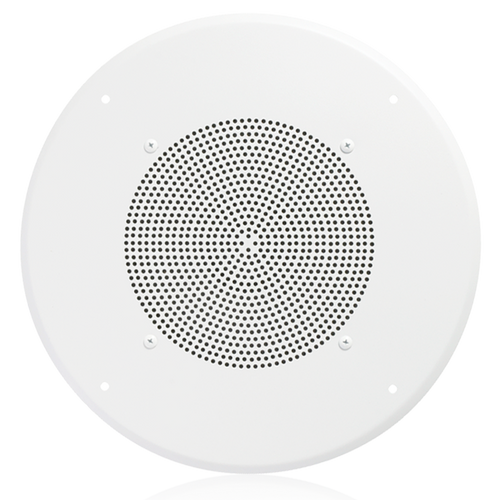

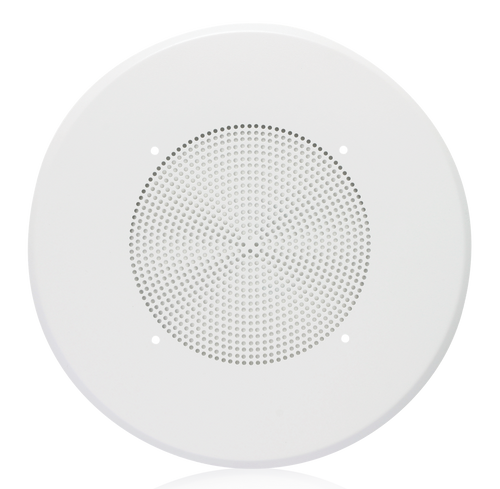

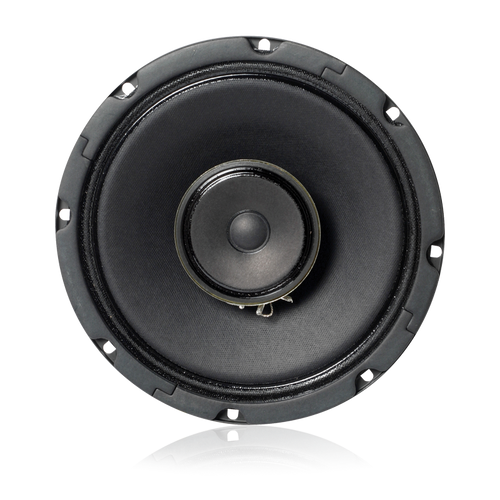

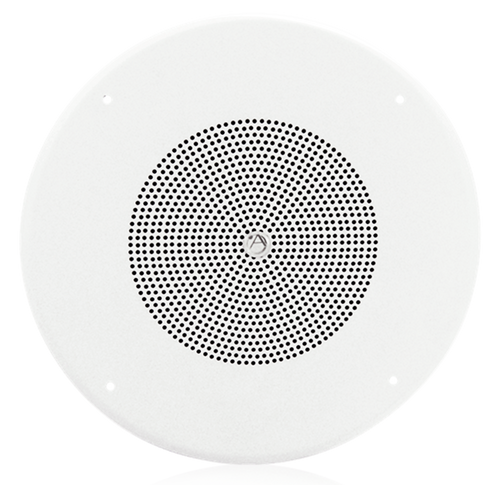

Atlas Sound EZHD72W 8-inch In-Ceiling Speaker with 4W 25V/70V Transformer, 51-8 Baffle, and Drop Tile Support Rails, Pair
The EZ Mount Support System transfers the composite weight of the speaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.
The support rails are heavy-gauge CRS and finished in a galvanized coating.
Features
- Equipped with 25/70.7V Transformer
- Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
- 51-8 Style Grille with White Finish
Specs
FREQUENCY RESPONSE |
100Hz - 10kHz |
SENSITIVITY |
97dB Peak, 94dB Average |
POWER TAPS |
.25, .5, 1, 2, & 4 Watts |
SPEAKER TYPE |
Treated Paper |
DISPERSION |
105° |
DEPTH |
2 7/8" (7.30 cm) |
DIAMETER |
8" (20.32 cm) |
SHIPPING WEIGHT |
5.17 lbs (2.35 kgs) |
