Product Description

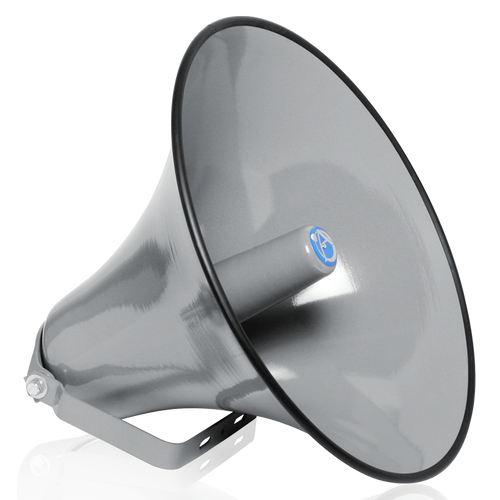

Atlas Sound DR-32 95° Uniform Coverage Horn
AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.
Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
Features
- Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
- Exponentially-Flared for Uniform Sound Distribution
- Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
- Weatherproof, All-Metal Construction for Year Round Use
Specs
DISPERSION | 95° |
DEPTH | 12 1/2" (31.75 cm) |
DIAMETER | 16 1/2" (41.91 cm) |
SHIPPING WEIGHT | 11.00 lbs (4.99 kgs) |
