Product Description

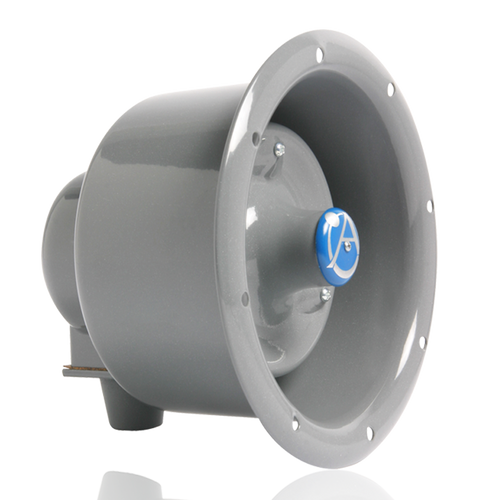

Atlas Sound APF-15T Flanged Horn Speaker
Provide 15 watts of continuous power handling with superior intelligibility and efficiency with AtlasIED APF Series Omni-Purpose speakers. Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.
Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap Control/connect center with 7 position, wattage/impedance selection switch.
Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter speakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5-1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Speakers are finished in grey baked epoxy.
Features
- Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
- Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
- High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
- May be Flange or Recess Mounted
- Transformer(T) Equipped Version for 25, 70.7, or 100V Line
- Vandal Resistant Metal Construction for Indoor Use
Specs
FREQUENCY RESPONSE |
600Hz - 14kHz |
SENSITIVITY |
104dB |
POWER TAPS |
1, 2, 3.8, 7.5, 15W @ 70.7V |
DISPERSION |
95° |
POWER RATING |
15 Watts |
OPERATING TEMPERATURE RANGE |
-40 to 70C |
DEPTH |
5 3/16" (13.18 cm) |
DIAMETER |
5 5/8" (14.29 cm) |
SHIPPING WEIGHT |
4.00 lbs (1.81 kgs) |
