Product Description

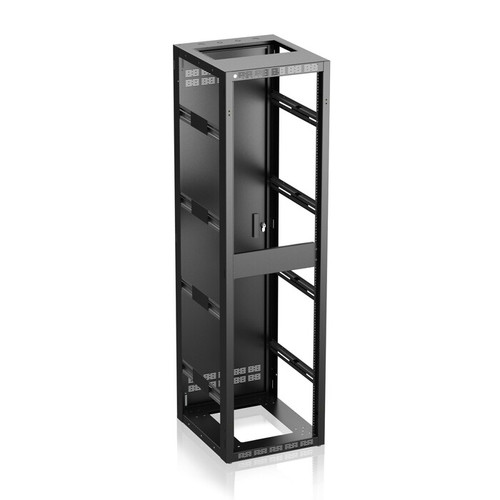

Atlas Sound 540-25-MPRD Standalone/Gangable 25" Deep 40RU Rack, Perforated Rear Door
Overview
For basic ganging rack requirements, Atlas offers the newly-designed 540-25-MPRD. The 540-25-MPRD is 22 5/16” wide, 25 1/2" deep with 40 vertical panel spaces that featuers a perforated rear door.
Installer friendly, the 540-25-MPRD features a 6 rack unit standard panel width opening in the cabinet top and conduit arrays. The top opening can be closed off, used for wire access, or for mounting EFP series fans depending on the application. Convenient and plentiful knockouts and conduit arrays are also provided on the top and bottom panel surface, and across the top and bottom back flanges of the cabinet frame.
This sturdy rack comes assembled for immediate use and features 16 ga. CRS welded frame with open sides for easy wiring access in single or multi-bay configurations, offering superior wire management, ventilation, and styling.
A flush-mounting, removable rear door on quick-release spring hinges rotates 180° for left or right-hand opening. One pair of adjustable 11 gauge precision tapped and recessed mounting rails are also included. These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8”-5/8”-1/2” spacing to accommodate vertical accessory mounting with plenty of ventilation provided by punched vents located at the cabinet’s front edge - top and bottom.
Features
- Innovative & Easy Side Panel Attachment
- Perfect for Any Multi-Rack Installation
- Rear Door Offers Right or Left Handed Hinging Capability
- Slotted Mounting Rail Supports Vertical Wire Management and are E.I.A. Spaced for Vertical Mounting of 19" Accessories
- Includes Perforated Front, Rear and Side Vents for Heat Dissipation
- Pre-Drilled to Accept M-1A Cabinet Mount IR Repeater
- UL 1678 Listed
Specifications
- Rack Units: 40
- Height: 74 1/4" (188.595 cm)
- Width: 22 5/16" (56.67 cm)
- Depth: 25 1/2" (64.77 cm)
- Usable Depth: 23 9/16" (59.77 cm)
- Safety Listed: 1678
