Product Description
Astera REX1-VM-4-SET RuntimeExtender V-Mount Set of 4
Overview
Kit of 4 RuntimeExtenders with all accessories stored in a durable protective plastic case.
Astera RuntimeExtender V-Mount
RuntimeExtender is a battery plate to connect standard camera batteries to many Astera lights. This enables you to extend your production and work without worries when shooting films or lighting events. The RuntimeExtender supports a wide range of Astera products.
SUPPORTED LIGHTS
|
Titan Tube |
2 |
|---|---|
|
Helios Tube |
2 |
|
Hyperion Tube |
1 |
|
HydraPanel |
4 |
|
PixelBrick |
4 |

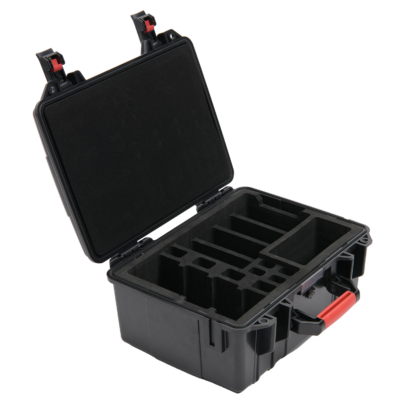

Astera 1 x Transportation Case for RuntimeExtender (REX1-CSE-4)
Sturdy plastic case to carry 4 RuntimeExtender and accessories.
Astera HEXCONNECT Bolt
Special bolt for mounting RuntimeExtender via SuperClamps and GripHeads. The hexagon shape ensures that the bolt will not untie itself. HexConnect can be inserted via the RuntimeExtender’s Airline Track.

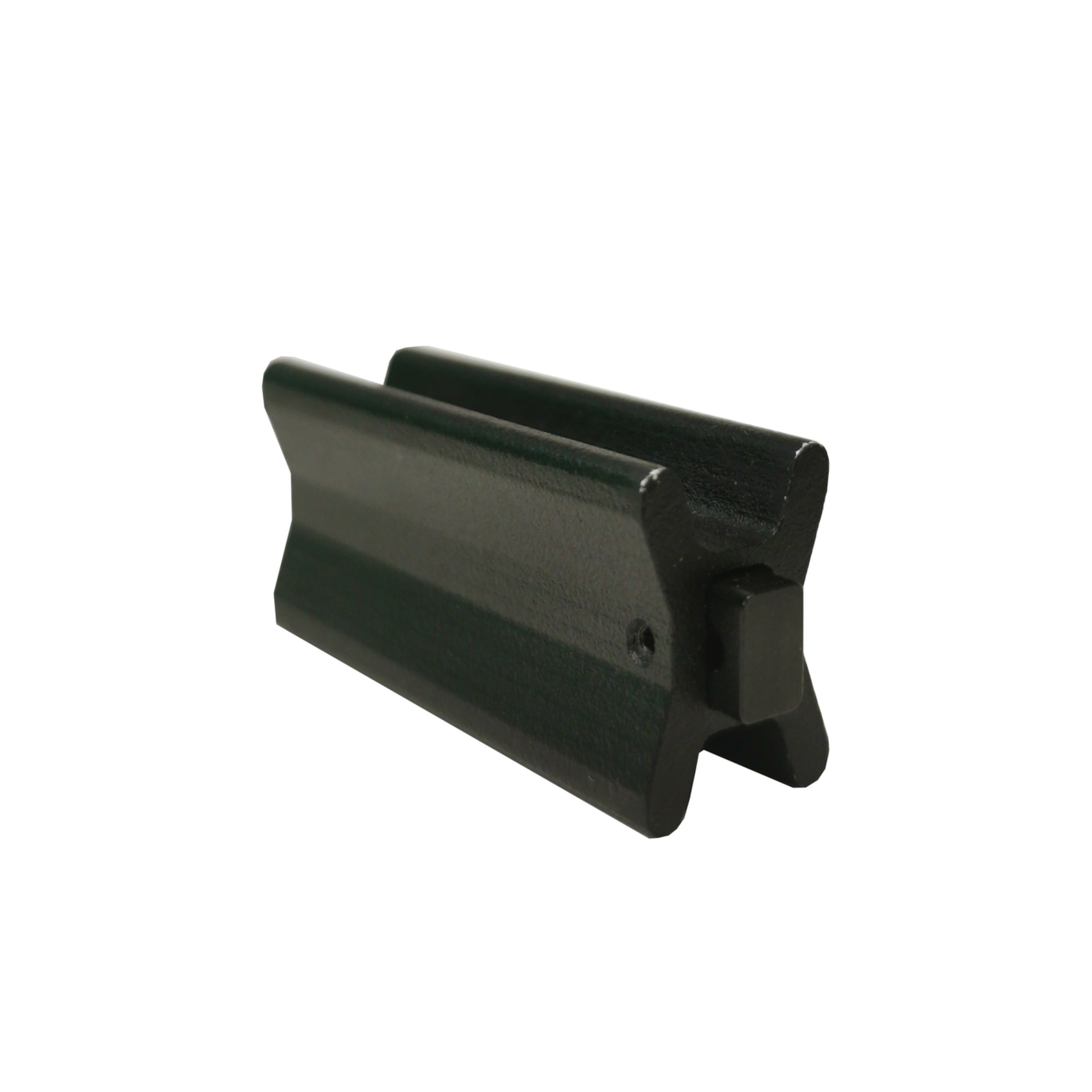

Astera BrickConnect
Connect 2 PixelBricks to each other’s side.
Astera 4 x Power/Data Combination Cable (1.5 m / 5 ft) (PWB-CAB-1.5)
Connects PixelBrick and other lights to their PowerBox and daisy-chains them. Groundbreaking technology enables power and data to both run through a single cable for maximum convenience. Also compatible with Titan PowerBox, DataLink, ChargingBox and other Astera devices.
What's Included
- Astera WATERPROOF PROTECTION COVER (PB15-PLG)
- Astera 4 x Power/Data Combination Cable (1.5 m / 5 ft) (PWB-CAB-1.5)

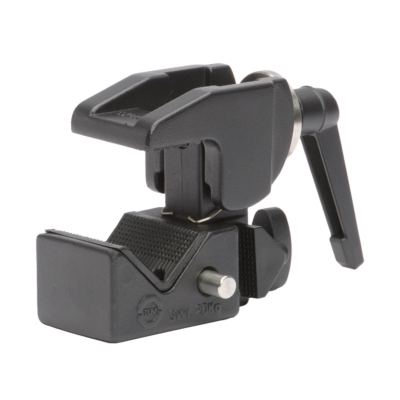

- Astera 4 x Super Clamp
- Astera 1 x Transportation Case for RuntimeExtender (REX1-CSE-4)
- Astera 4 x BrickConnect (PB15-BCN)
- Astera 4 x HexConnect (AX-HCN)
- Astera 4 x RuntimeExtender V-Mount (REX1-VM)
Specifications
Astera RuntimeExtender V-Mount
|
Battery Voltage |
14.4 VDC or 26 VDC |
|---|---|
|
Battery Runtime |
Dependant on third party battery used and type of fixture |
|
Battery Runtime max. Brightness |
Dependant on third party battery used and type of fixture |
|
DC Output on DC Barrel Connectors |
24 VDC – 100 W combined on two outputs |
|
DC Output on XLR |
Direct passthrough from attached battery |
|
DC Connectors |
2 x 5.5 mm x 2.1 mm / 1 x 3-Pin XLR |
|
Housing Material |
Polycarbonate and Metal |
|
IP Rating |
IP20 |
|
Ambient Operating Temperature |
0 – 40 °C / 32 – 104 °F |
|
Weight |
617 g / 1.36 lb |
|
Dimensions L x W x D |
148 mm x 112.8 mm x 45.5 mm / 5.8" x 4.45" x 1.79" |
|
Mounting Options |
2 x AirlineTrack compatible with PB15 accessories |
Astera BrickConnect
|
Dimensions (L x W x D) |
50 mm x 23 mm x 15.2 mm / 1.97" x 0.9" x 0.59" |
|---|---|
|
Weight |
0.027 kg / 0.059 lbs |
|
Material |
Aluminium |
Astera HexConnect Bolt
|
Material |
Aluminium & Brass |
|---|---|
|
Weight |
kg / lbs |
|
Dimensions L x W x D |
50 mm x 24.9 mm x 36.2 mm / 1.97" x 0.98" x 1.43" |
