Product Description
Astera FP3-SET-US Set of 4 Hyperion LED Tubes with Charging Case
Set of 4 Hyperion Tube with Charging Case comes with accessories (data link, 4 individual power supplies incl., 4 wing plates, 4 spigots, holders and eyebolts)
Overview

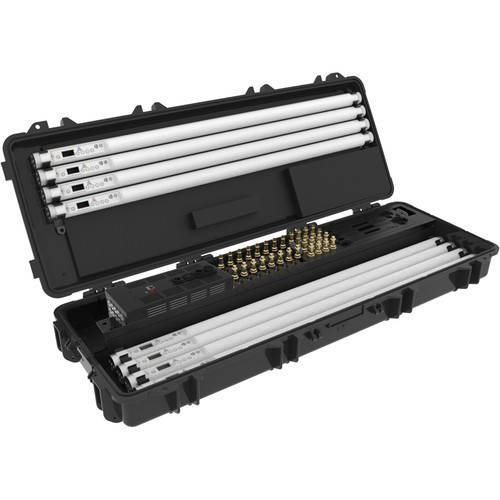

This Set of 4 Hyperion 66.4" LED Tubes with Charging Case from Astera is an impressive setup designed to travel. The set includes four Hyperion LED lights, a hard, shippable charging case, four multi-voltage AC adapters, and a Data Link to translate XLR-DMX, Art-Net, and sACN protocols to DMX. Astera has provided an array of mounting options that includes four each: wing plates, holders with cotter pins for truss mounting, eyebolts for hanging the tubes, and four spigots for joining tubes together or to be used as mounting studs for optional floor stands.
Astera Hyperion LED Tube
With an omni-directional 180° beam spread, the Astera Hyperion LED Tube is ideal for creating a soft direct light on your subject, for use as an accent light, or as a design element on location or on set. Suitable for cine, theatrical, and event productions, the wireless tube is powered by an integrated LG Chem li-ion battery that will give you two hours of runtime on a three-hour charge. The light features 32 LED emitters in a 64.6" long tube that you can mount into a set, onto a stand, hang from a grid, or even hold in your bare hand. The Hyperion has an impressive CRI/TLCI rating of 96/96 indicating high accuracy in the rendition of color. The Hyperion also uses RGB, Mint, and Amber LEDs and Hue, Saturation, and Intensity control to access literally millions of custom colors.
Color and control are at the heart of the Hyperion's design. The tube has an expansive white-light range of 1750 to 20,000 to seamlessly blend into any ambient light situation, or just to exercise creative expression. You can make these adjustments locally on the fixture or there are several ways to do it remotely. Most familiar is from a console with the Hyperion wired to it. Wireless DMX, CRMX, and other types of units can adjust functions at distances up to 990'. There's also an AsteraApp that lets you control the light via Bluetooth, and IR control via an optional remote.
The Hyperion ships without a power supply. An AC adapter/charger or a PowerBox are available for separate purchase.
Control
- You can use the Astera infrared remote control (not included) by simply pointing it at individual lights to set the desired effect
- The downloadable AsteraApp is an efficient way to quickly create a customized lightshow using your smart device. It can group several lights together, address individual lights or groups of lights, and send complex effects with a user-defined color palette to all lights in range
- The light can also be controlled by CRMX (wireless DMX), as the built-in receiver is compatible with all LumenRadio CRMX transmitters as well as W-DMX G2, G3, G4, and G4S transmitters
Wireless Modules
902 to 928 MHz
2.4 GHz
TruColor Calibration
Tunable White
Green/Magenta Correction
20-Hour Runtime
Effects
Talkback +
Anti-Theft
Flicker-Free Filming
Scheduled Stand-By Mode
DJ Application
Dynamic Power Boost
Emergency Lights
Other Features
Astera Hyperion Case (Black)
Store, transport, and protect your Hyperion light fixtures with this black Hyperion Case from Astera.
Astera Individual Charger/PSU for Hyperion Tube
The Individual Charger/PSU for Hyperion Tube from Astera provides power to the Hyperion Tube's Li-Ion battery. The charger takes 3 hours for a full charge.
Astera Data Link for Hyperion, Titan, and Helios Series Tubes
Featuring rugged aluminum construction, the Astera Data Link for Hyperion, Titan, and Helios Series Tubes sends wired DMX to these fixtures via XLR-DMX, Art-Net, and sACN protocols. Made for indoor use, both IP address and Universe ID can be selected and set.
Astera WingPlate for Two AX1 Tube Holders
The Astera WingPlate for Two AX1 Tube Holders can be used to hang or mount tubes, as well as to create shapes such as squares or triangles. The WingPlate requires two separately purchased AX1-H holders for use.
Astera Baby Pin Double-Ended Spigot
An essential accessory for mounting on Super Clamps or any piece of grip gear with female threads, the Baby Pin Double-Ended Spigot from Astera has 1/4"-20 threads at one end and 3/8"-16 threads at the other for mounting onto clamping gear and support lights with a 5/8" receiver. The stainless steel pin is 2.7" long and compatible with the AX3 bracket, AX3 housing, AX5 bracket, AX1 Holder, AX1 Wing Plate, and more.
Astera M5 Eyebolt for Ax1 Pixel, Helios, Titan and Hyperion Tubes (Pair)
This pair of M5 Eyebolts for Ax1 Pixel, Helios, Titan and Hyperion Tubes from Astera screw into the tube and allow it to be suspended without a frame. They can also be used for suspending four tubes via safety wire.
Key Features
- 4 Hyperion 66.4" LED Tubes
- 1 x Data Link, 4 x AC Adapters
- 4 x Wing Plates, 4 x Spigots
- 4 x Holders, 4 x Eyebolts
- White Light Range: 1750 to 20,000K
- Hue, Saturation, and Intensity Control
- Wireless DMX, CRMX, W-DMX Compatible
Specifications
Astera Hyperion LED Tube
| Item Type | 1 x LED Light Tube/Wand |
| Lumens | 5800 (at 4000K) |
| Photometrics | 4000K 145 fc / 1570 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 1750 to 20,000K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 96 TLCI 96 |
| Cooling System | Passive |
| Dimming | Yes, Built-In Dimmer |
| Expected Lamp Life | 50,000 Hours |
| Beam Angle | 180° |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Wi-Fi Wireless CRMX Wireless DMX |
| Wireless Range | 984.3' / 300 m |
| Power Source | Battery (Built-In) AC to DC Adapter (Not Included) |
| Inputs/Outputs | 1 x Barrel / Coax (2.1 x 5.5 mm) Power Input (24 VDC) |
| Battery | 1 x Rechargeable (Built-In) • Up to 20-Hour Runtime • 3-Hour Charge Time |
| Battery Charging | 1 x AC to DC Adapter (Not Included) |
| AC Input Power | 90 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 24 VDC at 4 A |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 96 W |
| Fixture Mounting | 2 x M5 Female Thread 1 x 1/4"-20 Female Thread (Via Mounting Clip) |
| Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP65 |
| IP Rating | IP65 |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 100% |
| Materials | Metal, Polycarbonate |
| Dimensions | 66.4 x 0.2" / 168.7 x 0.5 cm (Fixture) |
| Weight | 6.39 lb / 2.9 kg |
Astera Hyperion Case (Black)
| Casters | None |
Astera Individual Charger/PSU For Hyperion Tube
| Recharge Time | 3 Hours |
| Number of Battery Bays | 1 |
| Certifications | EU *as per Manufacturer |
Astera Data Link For Hyperion, Titan, And Helios Series Tubes
| DC Input Power | 24 VDC at 4 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| IP Rating | IP20 |
| Material of Construction | Aluminum |
| Dimensions | 10.5 x 2.7 x 2.5" / 267.0 x 69.0 x 64.0 mm |
| Weight | 1.1 lb / 0.5 kg |
Astera WingPlate For Two AX1 Tube Holders
| Material of Construction | Stainless Steel |
| Thread | 1/4"-20 UNC |
| Dimensions | 7 x 2.2 x 0.7" / 180 x 55 x 19 mm |
| Weight | 4.6 oz / 130 g |
Astera Baby Pin Double-Ended Spigot
| Mounting | 1/4"-20 Male, 3/8"-16 Male |
| Rotation | 360° |
| Material | Steel |
| Dimensions | ø: 0.7 x L: 2.7" / ø: 19.0 x L: 68.0 mm |
Astera M5 Eyebolt For Ax1 Pixel, Helios, Titan And Hyperion Tubes (Pair)
| Dimensions | Inner Diameter: 0.47" / 12 mm Outer Diameter: 0.82" / 21 mm Length: 1" / 27 mm |
| Thread | M5 |
| Weight | 0.35 oz / 11 g |
