Product Description
Astera AX1-Individual Tube AX1 Pixel Tube RGB LED Tube Light (3.4', Basic Kit)
Overview

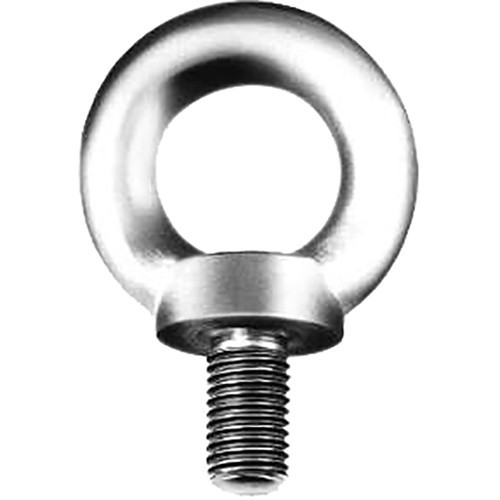

B&H has put together this AX1 Pixel Tube Basic Kit to give you everything you need to get up and running with this unique, multi-featured light source. The kit includes the battery-powered 3.4' RGB tube and a charger. Also included is a floor stand for mounting the light vertically, two tube holders and two eye bolts for hanging it, and an international plug adapter set.

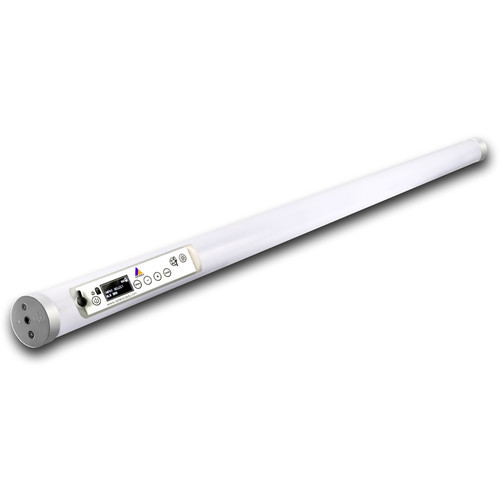

Astera AX1 Pixel Tube RGB LED Tube Light (3.4')
The Astera AX1 Pixel Tube RGB LED Tube Light emits up to 253 lux at 3.3' (5500K) with an integrated battery that is suitable for a variety uses in cine, theatrical, and event productions. The AX1 features 16 individually addressable LED emitters in a 3.4' long tube that you can mount into a set, on a stand, hang from a grid, or even hold in your bare hand. The AX1 features a CRI/TLCI rating of 88, which provides for good color rendition. The fixture can be used to create a soft, direct light on your subject or be used as an accent light as well as a design element in the location or set.
The fixture features five different Dimming Curve modes, as Astera refers to it. Selection of these modes along with the Pulse Width Modulation dimming of the fixture enables flicker-free video shooting. The Pixel Tube features an integrated battery that charges in approximately 7 hours using the included charger and has a run time of 20 hours. It can be controlled remotely by IR, a downloadable app, and wireless DMX. The Pixel Tube has an IP rating of 65 for dust and water ingress, when the rubber plug to cover the charging port is in place. The IP65 rating means the fixture is completely dust tight, and it is impervious to low-pressure jets, which means you can use this fixture in dusty environments and in wet conditions.
Control
- You can use an Astera ARC1 infrared remote control (not included); simply point it at individual lights to set the desired effect.
- The downloadable AsteraApp is an efficient way to quickly create a customized lightshow using your device. It can group several lights together, address individual lights or groups of lights, and send complex effects with a user defined color palette to all lights in range. Please note the AsteraBox (not included) is required to control the light fixture through the app. You can also use the Astera ARC2 remote control (not included).
- The light can also be controlled by CRMX wireless DMX, as the built-in receiver is compatible with all LumenRadio CRMX transmitters as well as W-DMX G2, G3, G4, and G4S transmitters, although G4 and G4S is only supported in 2.4 GHz mode.
- You can also use an Astera ART3 Wireless DMX Transmitter to send DMX in the UHF frequency band, although CRMX is the recommended method.
Wireless Modules
902 to 928 MHz
2.4 GHz
TruColor Calibration
Seamless Runtime
Talkback +
Flicker Free Filming
Scheduled Standby Mode
DJ Application
Dynamic Power Boost
Dimmer Curve
- FAST: For pixel mapping and similar applications, provides a totally unfiltered response
- STANDARD: Good compromise between response and smoothness for most applications
- HALOGEN: When slow and smooth dimming is required, emulates the characteristics of a halogen light
- THEATER: For theater use, provides very smooth response and increased dynamics although some colors are darker in this mode
- TV: For filming on Broadcast and other shows. The dimming response is faster but still smooth dimming. Although this mode produces less blue light due to its fixed white point of 6500K, it also provides increased dynamics with some colors being darker
Specifications
Astera AX1 Pixel Tube RGB LED Tube Light (3.4')
Item Type | 1 x LED Light Tube/Wand |
Included Storage Case | None |
Lumens | Not Specified by Manufacturer |
Photometrics | 3200K 24 fc / 254 Lux at 3.3' / 1 m* 4000K 24 fc / 255 Lux at 3.3' / 1 m* 5500K 24 fc / 253 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
Color Temperature | Not Specified by Manufacturer |
Color Accuracy Standard | CRI 88 |
Cooling System | None |
Expected Lamp Life | 50,000 Hours |
Beam Angle | 180° |
Front Accessory Mount | None |
Wireless Remote Control Type | Bluetooth Wi-Fi IR Wireless CRMX |
Wireless Range | 984.3' / 300 m |
Power Source | Battery (Built-In) |
Inputs/Outputs | 1 x Barrel / Coax (2.1 x 5.5 mm) Power Input (48 VDC) |
Battery | 1 x Rechargeable (Built-In) • Up to 20-Hour Runtime • 7-Hour Charge Time |
Battery Charging | 1 x AC to DC Adapter (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 48 VDC at 0.5 A |
Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 16 W |
Fixture Mounting | 2 x M5 Female Thread 1 x 1/4"-20 Female Thread (Via Mounting Clip) |
Environmental Protection | None |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 100% |
Display | None |
Materials | Metal, Polycarbonate (Housing) |
Dimensions | 40.7 x 1.6" / 103.4 x 4.1 cm (Fixture) |
Weight | 2.2 lb / 1 kg |
Package Weight | 3.8 lb |
Box Dimensions (LxWxH) | 43 x 2.5 x 2.5" |
Astera Accessory Kit For AX1 Wireless PixelTube
Package Weight | 1.8 lb |
Box Dimensions (LxWxH) | 10.8 x 5.1 x 3.4" |
