Product Description

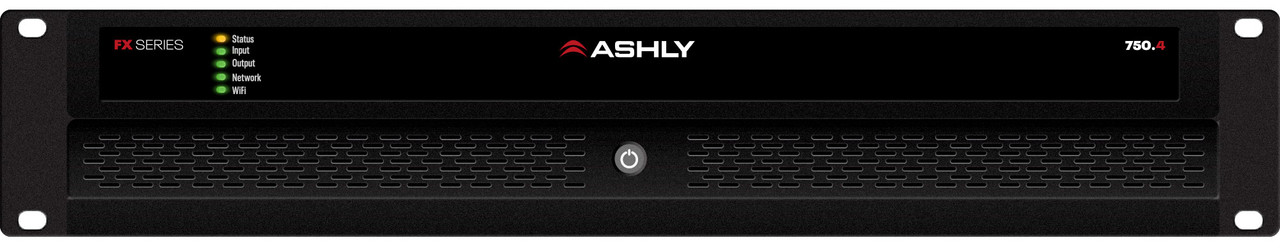

Ashly FX750.4 1/2-Rack Compact 4-Channel Power Amplifier With DSP 4 x 750W
The FX series is a range of multi-purpose installation DSP-equipped amplifiers. The FX series amplifiers feature a built-in Wireless-Access-Point (WAP) for simple connection and configuration via WiFi as a well as an intuitive web-based software UI.
With 6 models to choose from starting at 2 x 60W in a half rack unit to 4 x 500W in a two rack unit, there’s an FX that will fit just about any project.
Ashly’s FX comes in two configurations: 1/2 Rack Units (RU) for fitting into those tight spaces where other high-powered amps won’t go. And for when you need the “big guns”, the 2 RU FX 500.2 & FX500.4 deliver power enough for even the largest speakers in your system (like those big subs). All FX models are lightweight for their power levels (the 2,000W FX 500.4 is only 16.5 lbs!). FX does more, in a smarter, more comprehensive package.
Naturally, they have the rugged reliability that Ashly is known for…including a 5-year warranty.
FX isn’t just another amplifier with a pretty face. Under the hood, the FX Series sports a powerful DSP engine that can be configured to suit a wide range of tasks, without the need for additional equipment. From processing input sources, routing and output DSP that can fine tune the sound of any speaker. Everything you need is right there. These can route into Zones A-D and then into Outputs (2 or 4 depending on the number of amplifier channels). All models have a 4-channel DSP configuration, including:
To control FX’s powerful DSP, you’ll find its user-friendly software interface that offers an intuitive workflow and easy access to even FX’s most advanced functions. A webpage-like directory on the lefthand side of the UI keeps all necessary functions clearly visible and accessible at all times. No multi-page layering, no right-click or hidden menus and no getting “lost in the weeds”.
This starts with the FX Dashboard, where you will quickly see the amp’s status displayed, along with Zone controls. The directory then takes you through the signal flow from Inputs to Zones to Outputs, followed by general settings. Easy. Simple.
An added feature is the ability to create, save & load speaker presets to accommodate virtually any loudspeaker (including Ashly AW, IS & SP models, of course). These can be loaded independently per channel, so different speakers may be used for different zones, or satellites and subs may be used for a bar or auditorium.
Rather than being tethered to a PC with an installed app, FX can be accessed anytime, anywhere with almost any browser-enabled device. FX software provides easy viewing and control from virtually any PC, tablet or smartphone, regardless of OS. No software to install (it’s built into the FX unit). Just connect using the Ethernet port or built-in WiFi and you’re ready to Rock & Roll. The WiFi connection allows secure ID and password protection from unauthorized use and for more advanced users, Ethernet allows custom IP settings for use on a more complex wired LAN.
• FX can change gears to work for whatever type of speakers your system requires. Its multi-mode operation with switchable Low Z (4/8 Ohms) or Hi Z (25/70/100V) can be selected in software, so you can mix and match speaker types as needed. All models also offer convenient power-sharing technology that balances power between channels to meet different load requirements.
• Each channel of the FX Series can operate at Low Z mode or be bridged for 70/100V constant Voltage output by selecting the appropriate Output Mode in the DSP software on each channel (Note: HiZ operation requires two channels to be bridged)
• The SPDIF Digital I/O may be used to connect other compatible equipment or may be used to bridge two FX amplifiers and digitally expand the system.
OVERVIEW
The FX Series’ pedigree is the culmination of compact Class D design so successfully implemented in the FA Series and Ashly’s years of providing easy-to-use software. Along with a newly incorporated DSP engine & software UI, FX takes amplification to new levels. FX is networkable via Ethernet for wired LAN connection, or directly via its built-in WiFi hotspot. No network router needed. FX allows system configurations that don’t require additional equipment, such as stand-alone DSP or speaker system processors. All of that is in one box. That saves space, money & time.
With 6 models to choose from starting at 2 x 60W in a ½ RU to 4 x 500W in 2 RU, there’s an FX that will fit just about any project. Each offers a healthy compliment of IO (include Digital SPDIF In & Out) and programmable integration ports for remote Volume control, GP triggers and more.
FEATURES
• Offers high power density:
• 60W x 2 Ch or 4 Ch, 125W x 2 Ch or 4 Ch in ½ RU chassis
• 500W x 2Ch or 4 Ch in 2 RU chassis
• Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
• Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
• 2-channel SPDIF Digital IO
• Front panel status LEDs for amp, Input, output & network
• Advanced Dynamic Power Sharing distributes power between channels, with up to 4x channel power**
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
• Browser-based UI accessed via PC or mobile device. No software to install.
• All models have 4 Input channels x 2 or 4 Output channels
• Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
• Customized Speaker Presets made be created, saved & loaded for each output channel
• Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
• ½ RU models easy to hide in “non-rack” installations.
• Highly efficient Class D and lightweight
• Optional hardware for ½ RU models for rack & wall/surface mounting.
*FX 500 models only
** 4x power is for FX 60.4 only. Other models are up to 2 x power between pairs. Spec is total power with a single channel driven.
