Product Description

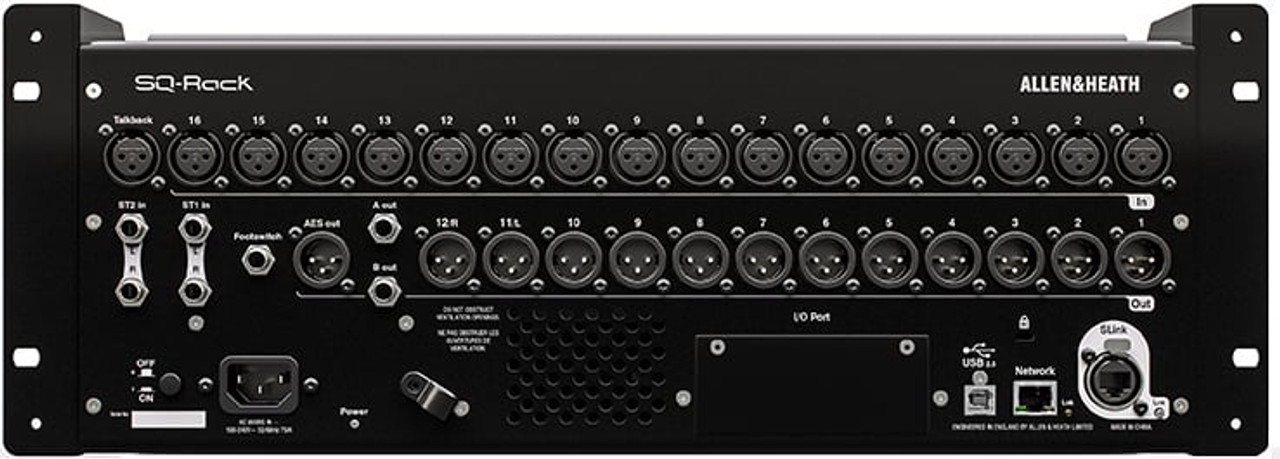

Allen & Heath AH-SQ-RACK SQ Series 48 Channel 96kHz XCVI Core Rack Mountable Digital Mixer
Overview
Take the legendary quality of Allen & Heath audio wherever you go with the SQ-Rack. This rackmount mixer delivers 48 input channels, 12 Stereo mix output channels, onboard RackExtra FX processing, and A&H's signature 96kHz SQ core performance in a space-saving 4U housing.
SQ-Rack connects instantly to your existing setup through versatile I/O options, including integrated preamps and SLink connectivity for the Everything I/O family of expanders, plus optional expansion cards for Dante, Waves, and MADI that let you expand and re-configure the system as needed. Take control with intuitive front panel tactile controls and a gorgeous 7" customizable touchscreen display, or manage your mix remotely through dedicated SQ apps. And if you want to capture the show, multichannel USB connectivity makes digital recording and playback to a computer or drive a breeze.
From intimate venues to touring rigs, the SQ-Rack delivers uncompromising sound quality and road-tested reliability. Its flexible architecture adapts to any scenario, whether you're running monitors for a touring band, installing a permanent system in a venue, or building a professional recording setup. Experience the perfect blend of power and simplicity, backed by Allen & Heath's acclaimed audio bonafides.
Features
- 96kHz XCVI Core with 48 input processing channels and stereo Main LR output
- 12 Mixes (Group/Aux, Stereo/Mono) and 3 Stereo Matrix outputs
- 17 XLR mic/line inputs with preamps, 4 TRS line inputs, and 1 stereo 3.5mm input
- 12 XLR outputs, 2 TRS outputs, and 1 AES3 stereo digital output
- 128x128 SLink Port for expansion and system connections
- 64x64 I/O port for option cards (e.g., Dante, Waves, MADI)
- Stereo headphone output and 8 FX engines with dedicated returns
- 7" capacitive touchscreen with rotary control, 8 SoftKeys, and 4 Soft Rotari
Specifications
- Inputs
- Mic/Line Inputs: Balanced XLR, fully recallable
- Input Sensitivity: -60 to +0dBu
- Switchable Pad: -20dB
- Analogue Gain: 0dB to +60dB, 1dB steps
- Maximum Input Level: +30dBu
- Input Impedance: >5kΩ
- THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
- Phantom Power: +48V (+3V / -2V)
- Stereo Line Inputs
- ST1, ST2 connectors: Balanced, 1/4" TRS jack
- ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
- Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
- Trim: +/-24dB
- Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
- Input Impedance: >7kΩ
- Mic/Line Inputs: Balanced XLR, fully recallable
- Outputs
- XLR Outputs: Balanced, XLR
- Outputs A and B: Balanced 1/4" TRS Jack
- Source: Patchable
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
- AES Digital Output
- Balanced XLR 2 channel,
- 96kHz sampling rate (Default with SRC Bypassed)
- Switchable output sample rates,44.1kHz/ 48kHz/ 88.2kHz/ (96kHz)
- 2.5Vpp balanced terminated 110Ω
- XLR Outputs: Balanced, XLR
- SLink
- Connection: Neutrik EtherCON (RJ45)
- dsnake mode (48kHz devices): 40 input 20+40(ME) output channels
- DX mode (96kHz devices): 32 input 32 output channels
- GigaACE/GX (96kHz devices): 128 input 128 output channels
- Inputs: Fully Patchable
- Outputs: Fully Patchable
- Sync/SRC: Assignable as master audio sync for all modes, 48kHz<>96kHz SRC
- I/O Port-Multi-channel I/O option module
- Inputs: Fully Patchable
- Outputs: Fully Patchable
- Sync/SRC: Assignable as master audio sync
- System-Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 112 dB
- Frequency Response: +0/-0.5dB 20Hz to 20kHz
- Headroom: +18dB
- Internal operating Level: 0dBu
- THD+N, Mic/Line routed to Main L/R Out: Unity gain faders@0dB, 0.006%, -84dBu (20 - 20kHz)
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Main Meter Type: 2 x 12 segment, fast (peak) response
- Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness
- Peak Indication: -3dBFS (+19dBu at XLR out), multi-point sensing
- Sampling Rate: 96kHz
- Bit Depth:Uses XCVI core custom bit widths in algorithms, up to 96bits
- Latency: <0.7mS, Local Mic Input to Main L/R
- Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mains Power: 100-240V AC, 50/60Hz
- Max Power Consumption: 75W
- Dimensions & Weights
- Width x Depth x Height
- Unit only (rack ears not fitted): 430 x 214 x 173 mm (16.9" x 8.4" x 6.8")
- Packed in shipping box: 545 x 350 x 265 mm (21.5" x 13.8" x 10.5")
- Unpacked weight: 5.8 kg (12.8 lbs)
- Packed weight: 8 kg (17.7 lbs)
- Width x Depth x Height
- Control
- Touch Screen: 7" Capacitive, 800 x 480 resolution, 24 bit RGB
- SoftKeys: 8
- SoftRotarys: 4
- Mute Groups / DCA Groups: 8 / 8
- Network: TCP/IP Ethernet for MIDI and Control
- MIDI: TCP/IP and USB-B
- Footswitch: Single or Dual, Momentary or Latching
