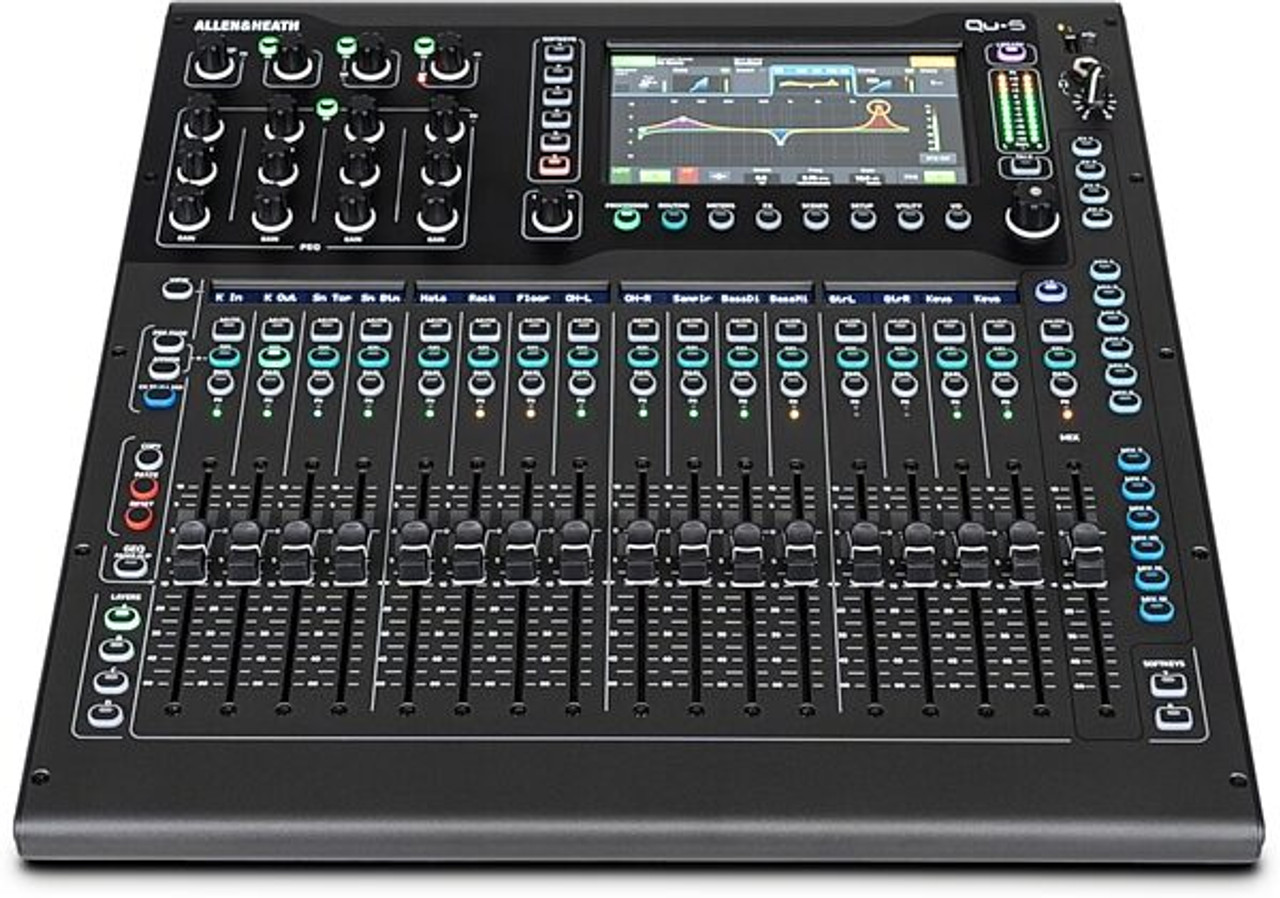

Allen & Heath AH-QU-5 32-Channel Digital Mixer, 96kHz FPGA Core, 17 Faders
Overview
Allen & Heath's Qu Series digital mixers have been a top choice for live sound productions thanks to their powerful features, flexible workflow, and budget-friendly price point. Continuing that legacy, Allen & Heath is now introducing the next evolution of the Qu Series with the Qu-5!
Allen & Heath's Qu-5 takes the form factor of the Qu-16 and pushes things to the next level with powerful processing, improved workflow, and expanded connectivity. This digital mixer boasts 96kHz FPGA DSP for low-latency, high-resolution processing coupled with six Multi-FX engines with dedicated Return Channels. The built-in 128x128 intelligent SLink port allows for connectivity to Allen & Heath's Everything I/O range of input expanders.
The Qu-5 comes equipped with 16 mic/line combo inputs, two stereo line inputs, 12 XLR outputs, two TRS outputs, and one AES3 stereo digital output. It features a 7" capacitive touchscreen, 17 motorized faders, four channel strip layers, and eight SoftKeys. Additionally, the Qu-5 includes multiple options for recording/playback including a stereo USB-A port, 32x32 USB-C port, and SD card slot.
Features
- 96kHz FPGA Core for high-resolution audio processing
- 36 Input Channels (32 Mono/Linkable, 2 Stereo)
- Stereo Main LR Output
- 12 Mix Buses (6 Mono/Linkable Aux, 6 Stereo Aux/Groups)
- 4 Matrix Buses (Mono/Linkable)
- 16 XLR/Jack ‘Combi’ Mic/Line Inputs
- 2 Stereo Line Inputs (each with 2 TRS connectors)
- Dedicated Talkback Input
Specifications
- 6x Inputs to Mix (32x Mono/Linkable, 2x Stereo)
- 12x Mixes (6x Mono/Linkable Aux, 6x Stereo Aux/Group)
- 4x Matrix (Mono/Linkable)
- 16x XLR/Jack 'Combi' Mic/Line Input Sockets
- 2x Stereo Line Input Sockets (each 2x TRS)
- 1x Talkback Socket
- 12x XLR Output Sockets
- 2x TRS Output Sockets
- 1x AES3 Stereo Digital Output Socket
- 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
- 16x16 48/96 kHz Dante interface (Qu-5D only)
- 17x 100mm Motorised Faders
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32x32)
- SD Card Slot for multichannel audio record/playback (16x16@96kHz, 32x32@48kHz)
- Configurable single/dual Footswitch Connection
- Configurable Chromatic Channel Meter LED's
- IEC Mains Connection with Worldwide PSU
- RJ45 Network Socket
