Product Description
Allen & Heath AH-DX88-P 8x8 Half-Rack I/O Audio Expander with Phoenix Connectors
Overview
DX88 is a 96kHz digital audio expander, designed to facilitate the seamless integration of 8 microphone/line inputs and 8 line outputs into fixed installations. This is achieved through the utilization of standard Phoenix/Euroblock connectors, ensuring a straightforward and reliable means of extending analog audio connectivity.
The DX88-P exhibits remarkable versatility by enabling placement up to 100 meters away from the mixer, thus offering optimal positioning flexibility. Connection to the mixer or an upstream DX Expander is established via a single Cat5e cable through the DX A port. Additionally, the DX B port allows for the convenient daisy-chaining of a downstream DX Expander to further expand remote input and output capabilities.
Features
- Compatible with AHM, SQ, Avantis and dLive systems
- 8 Phoenix/Euroblock Inputs with recallable 5-60dB gain, Phantom power and 20dB PAD
- 8 Phoenix/Euroblock Outputs
- Cascade mode
- Multiple DX88-P can be added to a system (up to 8 units on a single DX Hub)

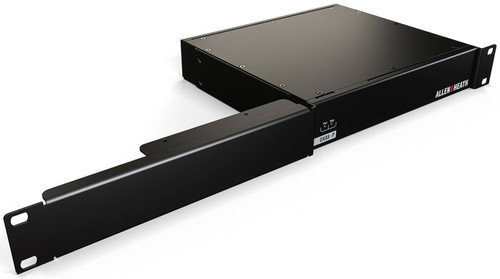

- Optional rack mount kit
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
