Product Description

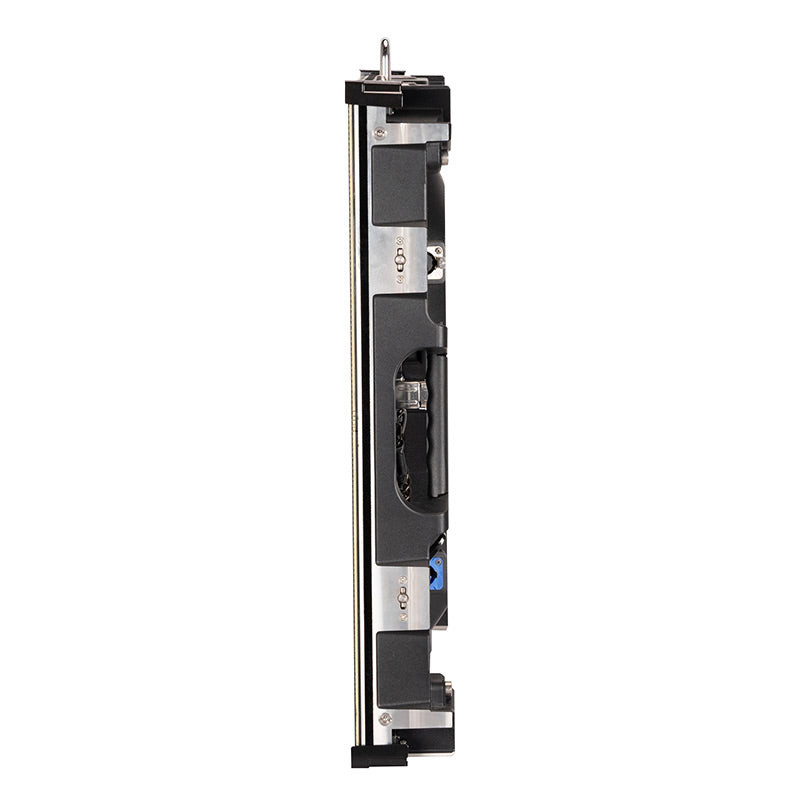

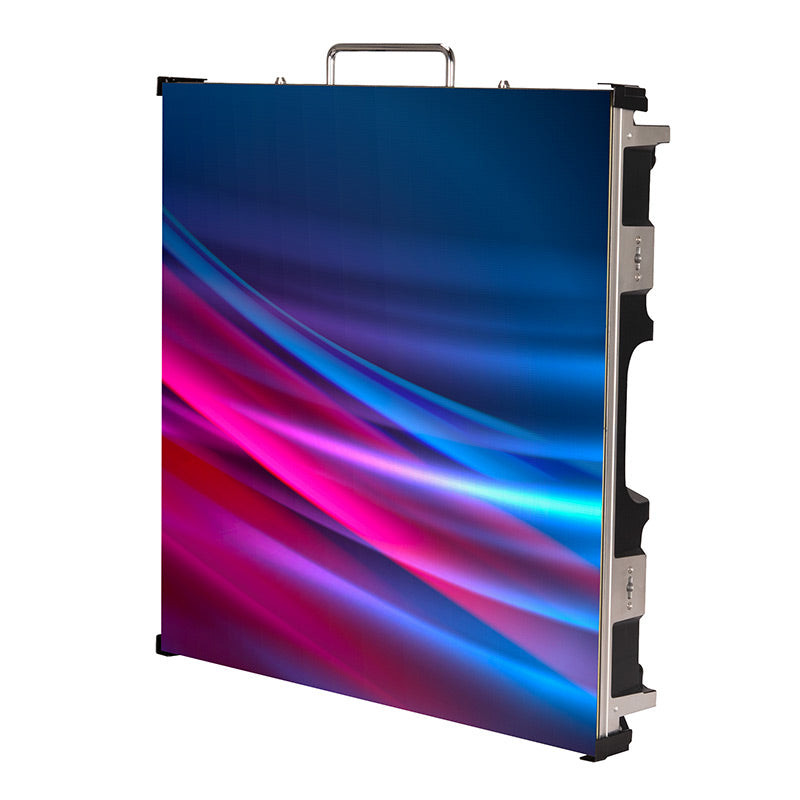

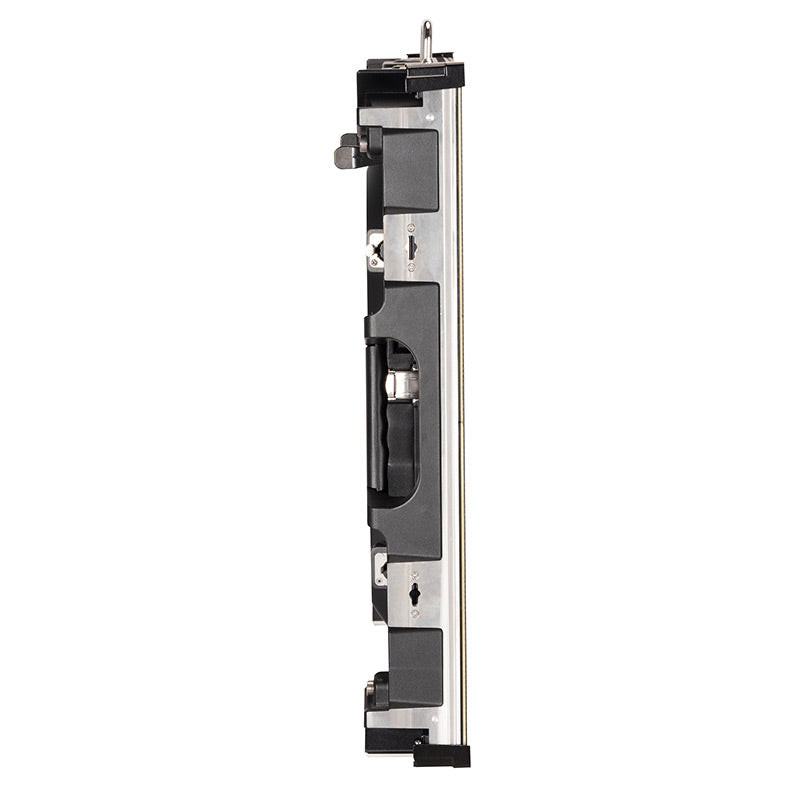

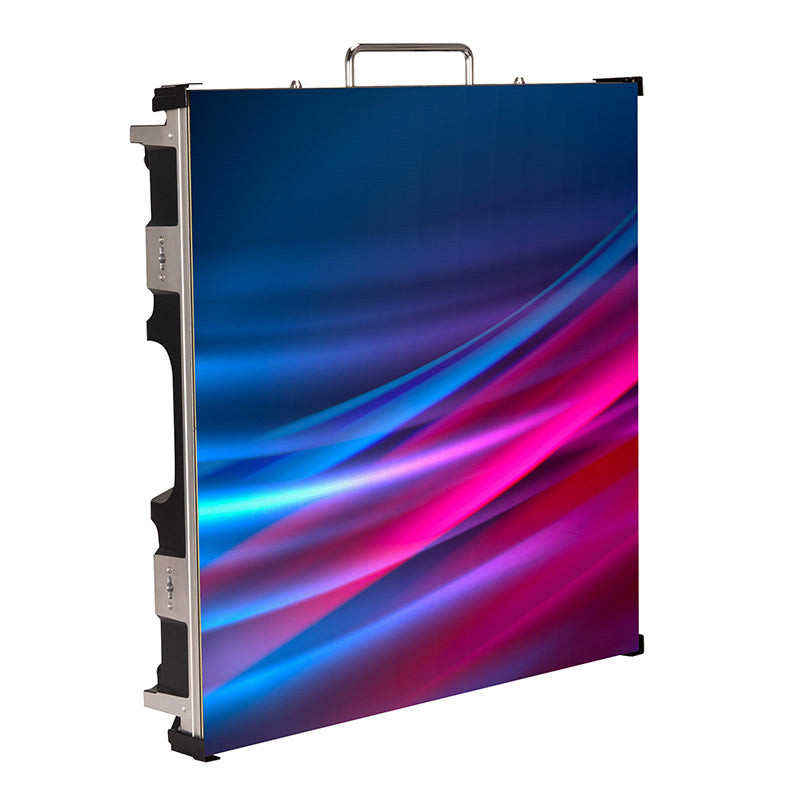

ADJ VS1 1.95mm Pixel Pitch LED Video Panel
Overview
The VS1 model is a high-resolution video panel with a 1.95mm pixel pitch and 4-in-1 MiniLED configuration. It boasts 1500 NITS brightness and an ultra-high refresh rate of 7680Hz, delivering exceptional image quality. With four LED modules per panel, servicing is quick and simple. The VS1 features PowerLock In/Out and DataLock In/Out connections and comes equipped with a Novastar A5s receiving card. Up to eight VS1 panels fit into the VSFC8 flight case, and the VSRB1 rigging bar allows up to 20 panels to be hung vertically. Additionally, the VS1 incorporates Memory on Module (MOM) technology to optimize performance, reliability, and usability. MOM allows the LED panel to store and recall important configuration data, such as calibration settings, brightness levels, color profiles, and other essential parameters. The VS1 panel includes four individual mini-modules and is designed for easy rear serviceability.
Features

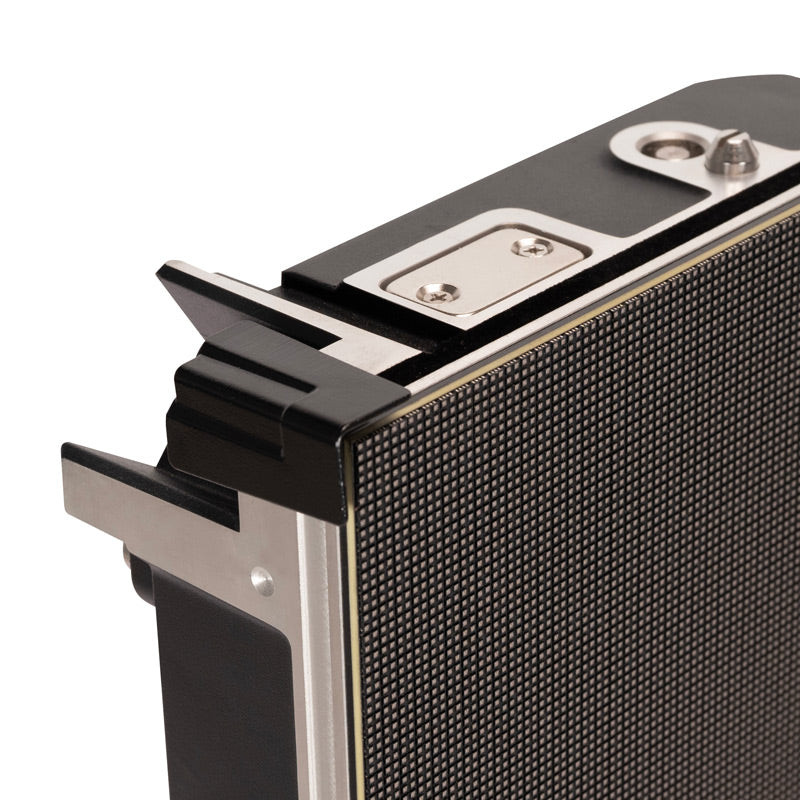

- Corner Protectors to protect the corners of the VS1 during transport, set-up and teardown
- Memory on Module (MOM): Enhanced functionality for seamless operation
- Rear Serviceable: Easily replaceable video modules ensure continuous performance
- Built-in Novastar A5s receiving card
- Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
Specifications
- Pixel Pitch: 1.95mm (0.07”)
- LED Configuration: MiniLED 4-in-1
- Pixel Density: 256x256; 262144 per square meter
- Size :19.68” x 19.68” x 2.76” / 500 x 500 x 70mm
- Module Quantity: 4
- Weight: 17.64 lbs. / 8kg.
- Surface Flatness: Gaps<0.5mm for a smooth visual experience
- Brightness: 1500 NITS for vivid, clear visuals
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) for wide coverage
- Gray Scale: ≥14-bit for precise color representation.
- Display Color: 256 for vibrant images
- Brightness Adjustment: 0~100% with 100 Levels for customizable viewing
- Contrast Ratio: 10000:1 for enhanced contrast
- Processing: 16-bit ensures seamless performance
- Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage
- Operation Power: 100~240V 50-60Hz for global compatibility.
- Max. Power Consumption: 150W/per panel, conserving energy.
- Ave. Power Consumption: 60W/per panel for efficient operation.
- Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.
- Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
- Frame Update Frequency: 50-75Hz for smooth playback.
- Scan Mode: 1/16 for seamless scanning.
- Refresh Rate: 7680Hz ensures flicker-free visuals.
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.
- Support VGA Mode: Various resolutions supported for compatibility.
- Brightness Correction: Pixel, Module, Cabinet for precise adjustment.
- Operating Temperature: -4° to 104°F (-20° to +40°C) for reliable performance in diverse conditions.
- Operating Humidity: 10 - 90% (No Condensation) ensures stable operation.
- Storage Temperature: -40° to 176°F (-40° to +80°C) for safe storage.
- Storage Humidity: 10-90% (No Condensation) for long-term preservation.
- cETLus (Pending)
