Product Description
ADJ Pixie Driver 8000 V2
Overview
ADJ's Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.
Features
• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via KlingNet, ArtNet and sACN (1,020 Pixels per port)

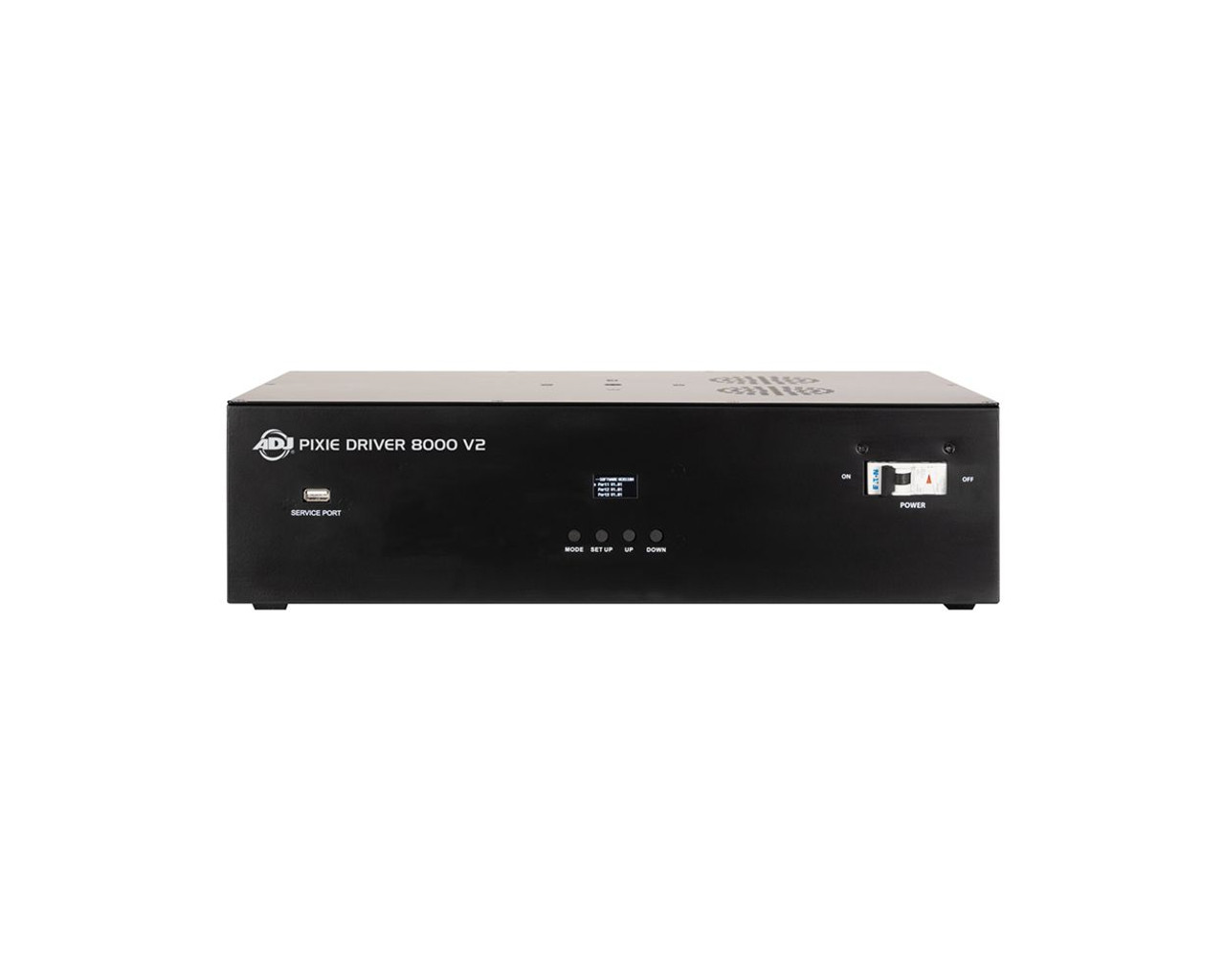

• OLED screen with 4-button menu
• USB port for Firmware Updates
Includes
- (1) PIXEL BC10 (PIX339): 10', 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip.
- (1) SIP20MPC (SIP293): Power Input cable
- (2) 19" Rack Ears
Specifications
Control Quantity:
KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's (8) Pixie Strip 120's or (17) Pixie Curve 60's (Per port. Or any combination not exceeding 1,020 pixel per port)
ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)
sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)
Connections:
• Power: PowerLock Input
• Two locking RJ45 ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options:
• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye
Electrical:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 1,600W max
• -4°F to 113°F (-20°C to 45°C)
Dimensions / Weight:
• Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
• Weight: 13.4 lbs. / 6.1 kg.
