Product Description

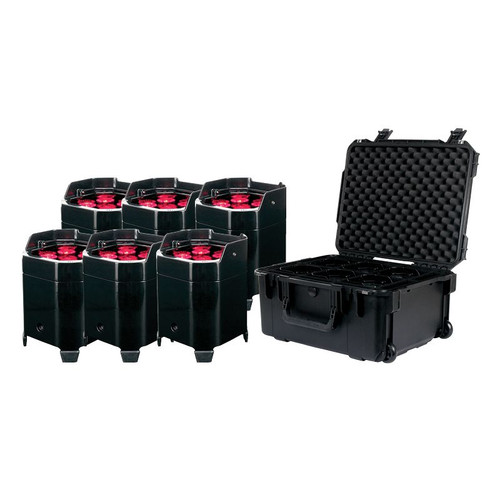

ADJ Mirage Q6 Pak Black with Charging Case
Overview
Lighting designers and event coordinators looking for a set of weatherproof RGBA LED uplighting fixtures will be impressed with the black, IP65-rated American DJ Mirage Q6 PAK Black, a complete, all-in-one lighting system with six battery-powered LED PAR fixtures in a durable flight case with onboard battery charging, well suited for clubs, mobile DJ setups, houses of worship, bands, live stages, and more.
Each fixture is powered by four 10W RGBA LEDs that produce an 11° beam angle, making them great for wall washing. A built-in handle and feet allow the lights to be simply dropped into place—ready to go. A built-in kickstand allows the beam to be angled inward towards the wall if required, which creates a more intense wash and minimizes light spill onto the ceiling.
With an IP65 rating, the Mirage Q6 fixture can withstand the rigors of on-the-road wear and tear, indoors and outdoors. The fixture is suitable for temporary use in rain, snow, dust, and sand. The integrated WiFLY EXR wireless DMX provides wireless control from a supported lighting controller up to 2500' away. The robust battery will operate up to 40 hours on a single color or up to 14 hours changing colors.
Features
- IP65 outdoor rated
- Built-in kickstand to angle fixture when sitting on the floor
- 4-touch button OLED display on rear panel
- Built-in WiFLY EXR wireless DMX: Up to 2500' when used with ADJ’s WiFLY EXR
- Battery transceiver
- 64 built-in color macros
- Variable RGBA color mixing offers a smooth unlimited color palette
- LED pulse and strobe effect (0.2 to 11 Hz)
- Flicker-free operation
- Electronic Dimming: 0 to 100% with 6 dim modes and 4 dim curves
- Run it all night—no duty cycle
- Energy Save mode
- Built-in alarm system with on/off
- Battery charge indicator on each fixture
Specifications
Fixture Type | PAR |
Light Source | 4 x Color LED - 10 W |
Light Source Life Expectancy | 50,000 Hours |
Colors | Red Green Blue Amber |
Photometrics | 920 fc / 9903 Lux at 6.6' / 2 m 213.9 fc / 2303 Lux at 13.1' / 4 m |
Shutter / Strobe | Electronic |
Zoom Adjustment | None |
Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
Operating Modes | Automatic, Color Change, Color Dimmer, Program, Static Color |
Macros / Programs | 64 x Color Macro 13 x Internal Program 1 x Color Fade |
Effects | Strobe (Variable Speed) |
Gobos | None |
Control Protocols | WiFly |
DMX Channel Modes | 11 Mode(s): 4 / 6 / 7 / 8 / 9a / 9+ / 10 / 11 / 12 / 15 / 18-Channel |
Display / Controls | OLED / 4-Button |
Remote Control | IR Remote (with Included Equipment) |
App Compatible | Yes: iOS Only App Name: Airstream DMX Functionality: Adjust Settings, Remote Control *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Inputs/Outputs | None |
Wireless Range | 2500' / 762 m |
AC Input Power | 100 to 240 VAC, 50/60 Hz |
AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
DC Input Power | 17.3 VDC |
Fuse | None |
Power / Current Consumption | 400 W / 4 A |
Battery Type | 14.8 V Lithium-Ion |
Battery Capacity | 11,000 mAh |
Approximate Battery Life | Single Color: Up to 40 Hours All On: Up to 20 Hours |
Battery Charging Time | 7 Hours |
IP Rating | IP65 |
Operating Temperature | 14 to 113°F / -10 to 45°C |
Mounting | Floor Base |
Included Accessories | 1 x Power Supply |
Exterior Color | Black |
Certifications | CE, ETL *as per Manufacturer |
Dimensions | 8.3 x 5.6 x 5.6" / 21.1 x 14.2 x 14.2 cm |
Weight | 6.1 lb / 2.8 kg |
