Product Description

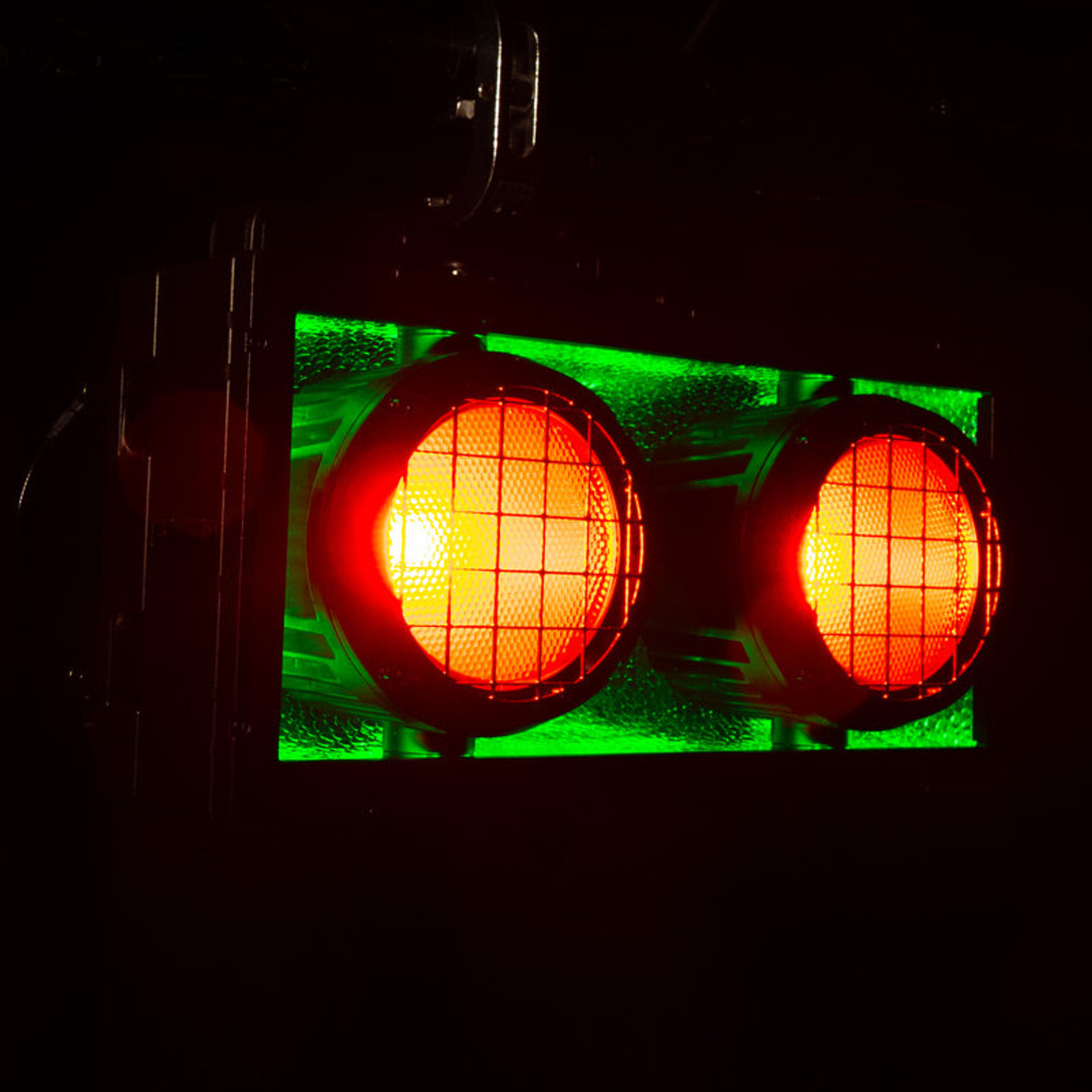

ADJ Encore DBX LED Dual-Lens Blinder/Strobe
Overview
Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.
Multiple Encore DBX fixtures can be seamlessly connected in an array pattern, either horizontally or vertically, using the custom locking pin system. Up to eight units can be suspended in a vertical configuration.
Features
- 2 Cell, Five Color (RGBAW) LED Blinder
- Background RGB LEDs
- Individually Controllable Cells
- Built-In Cell Programs
- Built-In Background LED Programs
- Tungsten Control Mode
- Variable White Color Temperature Control (2,700K ~ 6,500K)
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (1 ~ 20Hz)
- Electronic Dimming
- Aria X2 Wireless Management System
Includes
- (1) Outdoor Locking Power Cable
- (1) Safety Cable
Specifications
Source:
- 2x 150W RGBAW LED's
- RGB Background LED's
- 50,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometrics:
- Total Lumen Output: 11,465
- CRI: 89
- Optical:
- Beam Angle: TBA
- Field Angle: TBA
Effects:
- Variable Strobe Rate: 1- 20Hz
- Variable 16-bit Dimming Modes and Curves
- RGB Background Reflector Effect
Color:
- RGBAW Color Array
- RGB Background
- Variable CCT 2700K - 6500K + five presets
Physical:
- IP65 Housing
- OLED Digital display
- Adjustable Mounting Yoke with Omega Receivers
- Second Set of Omega Receivers on Rear
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM (Remote Device Management)
- (21) DMX Channel Modes (1CH/ 2CH-A / 2CH-B / 4 CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections:
- 5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- IP65 Locking Power Sockets
- Dimensions & Weight:
- Length: 9.1” (231mm) Width: 16.5” (420mm) Height: 10.3” (261mm)
- Weight: 25.4 lbs. (11.5 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 347W Power Consumption
- Link 2 pieces @120VAC or 6 pieces @ 230VAC
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP65
