Product Description
ADJ ElectraPix Bar 8 Pak 6x ElectraPix Bar 8
Overview
The ElectraPix Bar 8 Pak is a bundle consisting of six ELE080 ElectraPix Bar 8 fixtures and their related accessories.
ADJ's ElectraPix Bar 8 redefines wireless DMX lighting with 1 meter of creative power. Eight 20-watt Hex Color LEDs, flexible power options, and advanced features offer you unparalleled creative control. Individual pixel control, fore and background LED programs, and white color temperature variability allow you to create the type of dynamic productions that leave a lasting impression. IP65-Rated and equipped with various control options, including DMX512, Aria X2 Wireless DMX, Bluetooth, and UCIR24 remote, this fixture allows you to take on any challenge. Its certifications, durability, and included accessories make the ElectraPix Bar 8 a reliable, comprehensive professional lighting solution. Illuminate the world your way with the ElectraPix Bar 8.
Features
- 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
- Battery or wall-powered
- 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,700K ~ 9,900K)
- English & Spanish User Menu
- Built-In Alarm
- Color Calibrated LED's
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User-Selectable Dim Curves
- Electronic Strobe (0.3Hz ~ 11Hz)
- Electronic Dimming
ADJ ElectraPix Bar 8 Pak Includes:
- (6) Outdoor Locking Power Cable
- (6) UCIR24 Remote
- (6) 20° Diffusion Filter
Specifications
- Source
- (8) 20W Hex Color RGBAL+UV Foreground LED's
- (32) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- Optical
- 2,300K ~ 9,900K White Color Temperature Range
- 17° Beam Angle
- 45mm Lens Diameter x8
- Physical
- IP65 Housing
- OLED Digital display
- L Track system for locking accessories/rigging
- Glare Shield
- Diffusion Filter slot
- Angle adjustable feet
- Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
- Control
- DMX512
- Aria X2 Wireless DMX
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 48, 52 & 66 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
- Connections
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
- Dimensions & Weight
- Length: 3.38” (85.7mm) Width: 23.24” (590.3mm) Height: 7.53” (191.2mm)
- Weight: ? lbs. (? kg)
- Power
- AC100-240V/50Hz-60Hz Input
- 60W Power Consumption
- Link 15 pieces @120VAC or 28 pieces @ 230VAC
- Battery
- Rechargeable Lithium-ion
- Battery Capacity: 7,000mAh
- Battery Voltage: 22.2V
- Charge Time: 6 Hours (To Full)
- 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
- Battery Cycles: 500
- Thermal
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
- Certifications & IP Rating
- CE
- cETLus (Pending)
- FCC
- IP65
- Included Accessories
- (1) Outdoor Locking Power Cable
- (1) UCIR24 Remote
- (1) 20° Diffusion Filter
- Optional Accessories

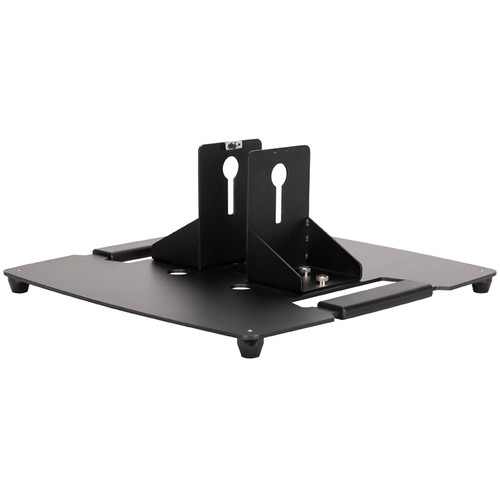

- Accu Stand VFB (Floor Base)
- LTrack A2 (LTrack Adapter Only)
- LTrack CA2 (LTrack Adapter with Narrow Clamp)
