Product Description

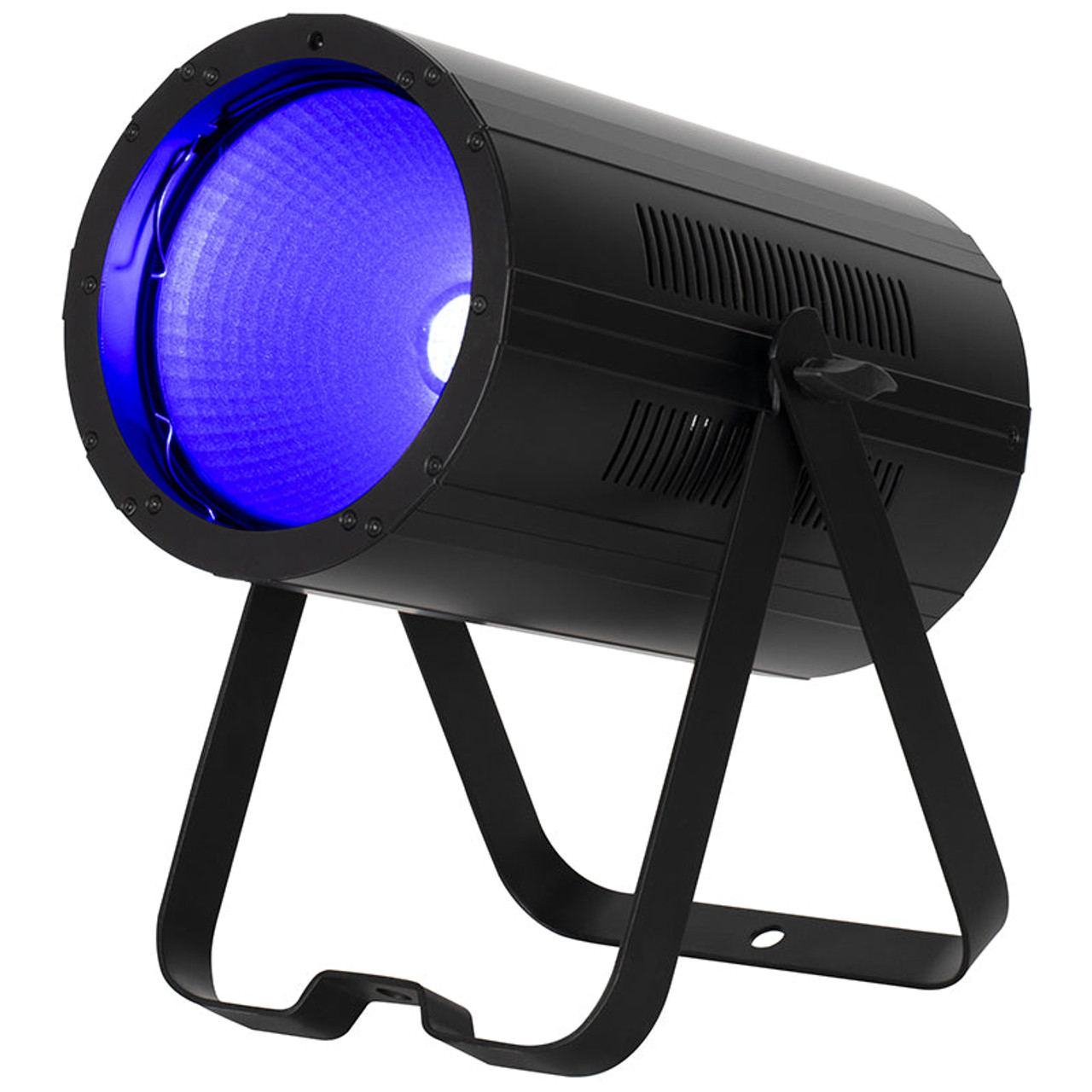

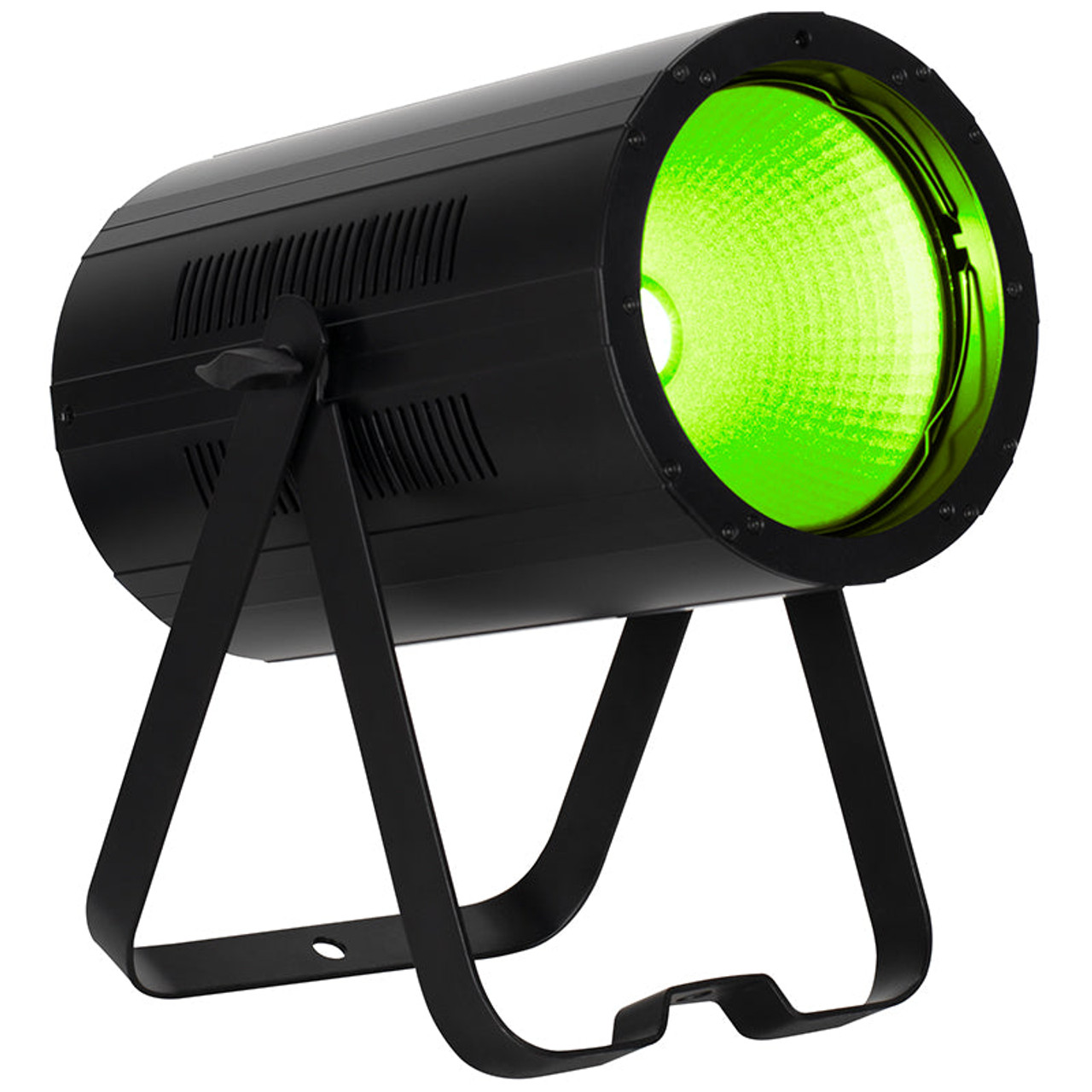

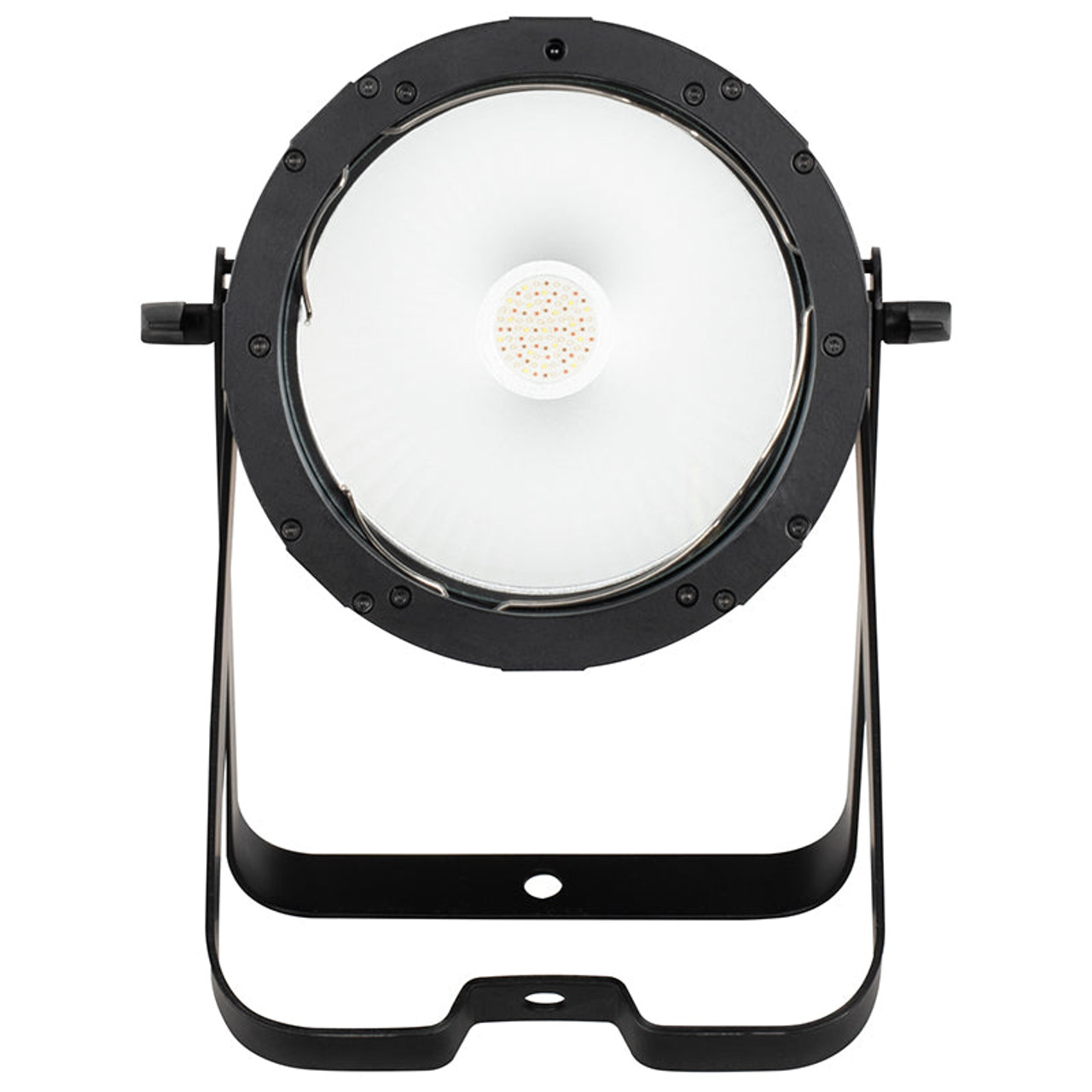

ADJ COB240 COB Cannon LP200X
Overview
The ADJ COB Cannon LP200X is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a tunable white color temperature between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90.
Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory. An Omega Bracket is included so that this fixture can be hung vertically as a pendant light.
Features
• Embedded Aria X2 Wireless Management System
• Primary / Secondary Mode
• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBAL color mixing with
rich palettes of color
• Scissor yoke allows fixture to be mounted on truss or
set on the ground
• Optional Barn Doors (BAR001) sold separately
Includes
• (1) 50-degree lens
• (1) 40-degree lens
• UCIR24 Wireless IR Remote
• Power Cord
• Scissor Yoke
• Omega Bracket
Specifications
Optical:
• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
• LED Engine Life Rating: Approximately 50,000 hrs.
• CRI: >90
• Tunable White Color Temperature: 2300~9900K
• 80-degree beam angle
• Includes lens kit to change to 40-degrees or 50-degrees beam angle
Connections:
• 5-pin XLR connectors for DMX data linking
• Indoor locking power In & Out connections to daisy chain power
Electrical:
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Power Draw: 175W max
• Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum
Dimensions / Weight:
• Dimensions (LxWxH): 16.5”x10.3”x7.5” / 418x262x190mm)
• Weight: 9.45 lbs. / 4.30 kg.
