Product Description
Audio-Technica BP40 Large Diaphragm Hypercardioid Dynamic Broadcast Microphone
-
Rich, natural, condenser-like sound
-
Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
-
Humbucking coil prevents electromagnetic interference (EMI)
-
Hypercardioid polar pattern improves isolation
-
Switchable 100 Hz high-pass filter
-
Superior off-axis rejection for maximum gain before feedback
-
Optimized capsule placement for commanding vocal presence even at a distance
-
Multistage windscreen provides superior internal pop filtering
-
Rugged, all-metal construction for dependable use in professional broadcast environments
ELEMENT | Dynamic |
POLAR PATTERN | Hypercardioid |
FREQUENCY RESPONSE | 50-16,000 Hz |
OPEN CIRCUIT SENSITIVITY | –48 dB (3.9 mV) re 1V at 1 Pa |
IMPEDANCE | 450 ohms |
SWITCHES | Flat, roll-off |
WEIGHT | 632 g (22.3 oz) |
DIMENSIONS | 164.0 mm (6.45") long, 56.0 mm (2.20") diameter |
OUTPUT CONNECTOR | Integral 3-pin XLRM-type |

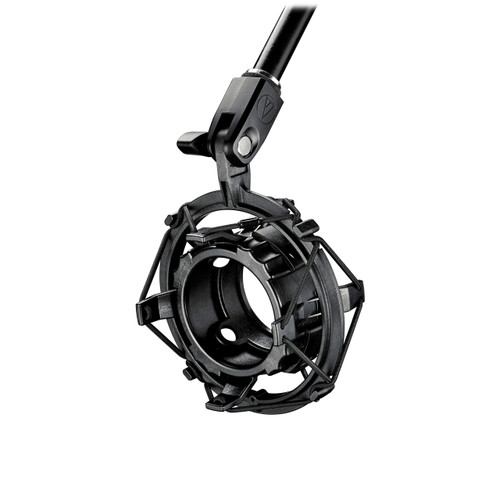

ACCESSORIES FURNISHED | AT8483 mounting clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch OPTIONAL ACCESSORY: AT8484 shock mount for 5/8"-27 threaded stands |
Audio-Technica CASE STYLE | R12 |
Click on the chart to view the larger image |
Polar Pattern |
Frequency Response |
