Product Description
ETC PAC S Pharos Switch Unmanaged 5-Port Switch with 4 PoE Ports (10W per port)
Overview
Pharos Switch is a convenient unmanaged Ethernet switch providing simple power and networking solutions for up to four Power over Ethernet (PoE) devices. An elegant and easy solution to connect and power PoE controllers, remote devices and touch devices, with the Ethernet-in non-powered port connecting directly to the programming laptop or joining to a local network. This DIN rail mount PoE network switch only requires a 24 VDC power supply
Features
- PoE Convenience - Combine power and data in a single Ethernet cable using PoE (IEEE 802.3af) technology, making it easy to locate your Pharos PoE devices where you need them
- Installer Friendly - Made for permanent installation, with installer-friendly 0.200” (5.08 mm) plug-in rising clamp terminals requiring convenient 24 VDC power; standard RJ45 sockets, and easy DIN rail and keyhole mounting options
- No Commissioning - The simple unmanaged switch operates out of the box, with no commissioning required
- Flexible - Automatically detects the requirements of the connected device to provide the correct power level
- Protected - Resettable fuses protect each port with the appropriate level of over current protection for the Class of device that is attached
- Multiple Ports - Use four ports to power and connect Pharos PoE controllers, remote devices and touch devices (or other IEEE 802.3af compliant devices). One additional port (without PoE) available to connect to your computer, other networks or other devices that do not require Power-overEthernet.
- Reliability - Made for permanent installation and designed for 24/7 operation and reliability

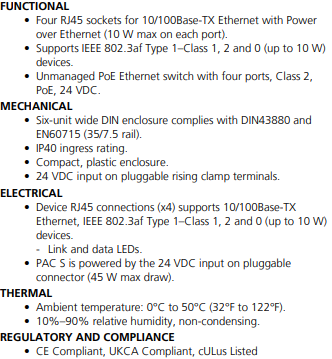

Specifications
