Product Description
ETC RIO G4 Pharos Express RIO G4, Remote Gateway 4-Port
Overview
The Pharos Remote 4-Port Device (RIO G4) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports. The RIO G4 is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos Control systems. Includes four DMX output ports that can be flexibly assigned, providing an elegant data distribution solution over an Ethernet network with minimal setup required.
Features
- Isolation - The RIO G4 offers four DMX512 output ports to control your fixtures. Each port is independently galvanically isolated up to 2 kV, ensuring the control circuitry and each port of the RIO G4 is protected against a multitude of electrical line faults, including earth potential rise and ground loops.
- Protection - The RIO G4 is equipped with “self-healing” DMX ports, giving your equipment added protection from incorrect setup and energy surges, such as short circuits and power induction. Should an energy surge occur, it will be contained by the RIO G4, preventing it from flowing into other components. Once an external fault is cleared, the ports “self-heal”, restoring DMX output automatically.
- Scalable - Multiple Remote Devices can be combined on the same network to build the ideal system for your installation. System totals and maximum device limits depends on the controller type.
- Power over Ethernet - As a Power over Ethernet (PoE) device, the RIO G4 can be placed at any remote location and only needs a single Ethernet cable that provides both power and data
- Commissioning Software - Programmed and configured using Pharos software – available free for Windows or macOS – with upload over Ethernet
- Reliable - Solid-state design for 24/7 operation and reliability
- Installer Friendly - Made for permanent installation, with installer-friendly DIN rail mounting
- Network - Works with Pharos controllers and links using standard protocols over an Ethernet network

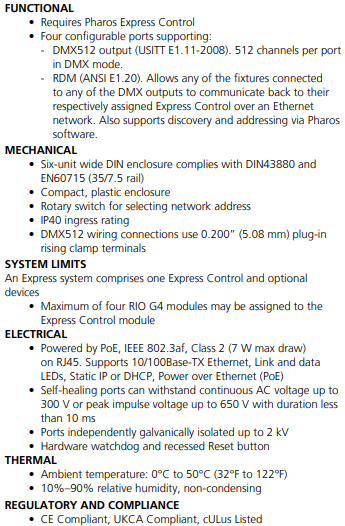

Specifications
