Product Description
ETC PAC R Pharos Repeat 4 Port DMX/RDM Splitter/Repeater
Overview
Pharos Repeat is a convenient DMX512 splitter/repeater with four output ports compatible with the RDM standard (ANSI E1.20), providing DMX distribution to luminaires. The incoming isolated DMX signal from your controller is regenerated four times on isolated, self-healing ports for distribution to your fixtures. This DIN rail mount repeater with install‑friendly connectors requires a power supply in the range of 9–48 VDC.
Features
- Installer Friendly - Made for permanent installation, with installer-friendly 0.200” (5.08 mm) plug-in rising clamp terminals, flexible power requirements from 9–48 VDC, and easy DIN rail and keyhole mounting options.
- Isolation - The input and output ports are independently galvanically isolated, ensuring the control circuitry and each port of the Repeat is protected against a multitude of electrical line faults, including earth potential rise and ground loops.
- Protection - Repeat is equipped with four self-healing DMX ports, giving your equipment added protection from unwanted energy, such as miswiring, short circuits, and surge events caused by lightning. Should a fault occur, it will be contained by the Repeat, preventing it from flowing into other components in the system; once the external fault is cleared, the ports “self-heal”, restoring DMX output automatically.
- Four Port Outputs - Repeats a DMX signal to four outputs, each output allowing for 32 DMX devices to be connected.
- RDM - Supports the Remote Device Management protocol (ANSI E1.20) allowing devices connected to any of the four outputs to be discovered and to communicate back to controllers over the DMX link.
- Reliability - Made for permanent installation and designed for 24/7 operation and reliability.

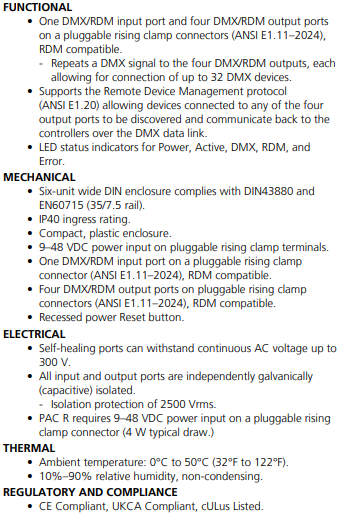

Specifications
