Product Description
Shure SLXD35+-G57 Digital Camera-Mount Wireless Plug-On Transmitter System (G57: 470 to 608 MHz)
Overview
The Shure SLXD35+ is a professional digital wireless audio system designed for field production, broadcast, documentary, and mobile content creation. Built on the SLX-D+ platform, it delivers transparent 24-bit digital audio, expanded RF coverage, and automated wireless management in a compact, camera-ready configuration. This system pairs a single-channel camera-mount receiver with an XLR plug-on transmitter, making it ideal for converting handheld, shotgun, or boundary microphones into reliable wireless sources for location-based workflows.

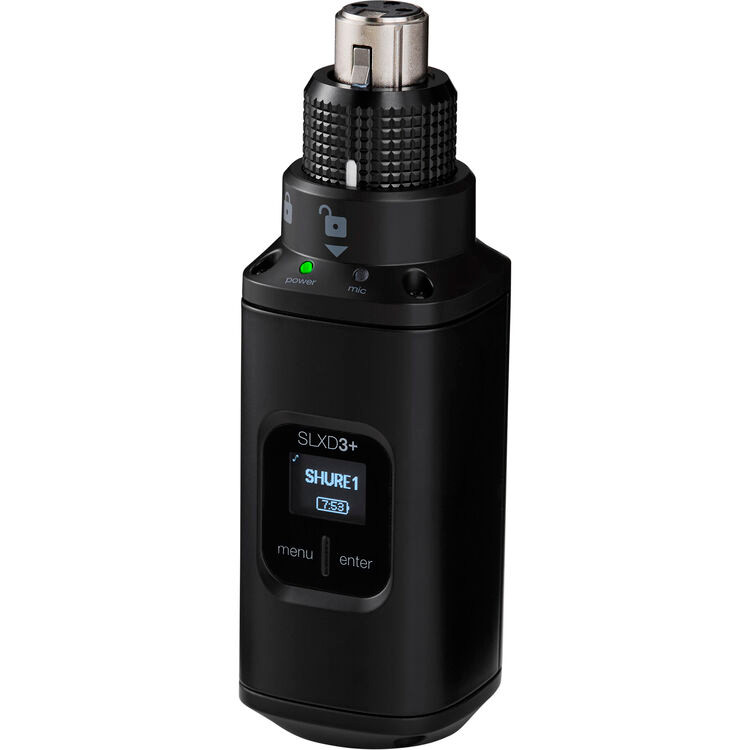

SLXD3+ Digital Plug-On Transmitter
The SLXD3+ plug-on transmitter converts any XLR microphone into a wireless transmitter compatible with SLX-D+ systems. It provides selectable +12 to +48 VDC phantom power for condenser microphones and features a patented locking mechanism that ensures a secure, wobble-free XLR connection. Delivering transparent 24-bit digital audio with greater than 118 dB of dynamic range, the SLXD3+ is well suited for broadcast microphones, boom-mounted condensers, and dynamic handheld mics.

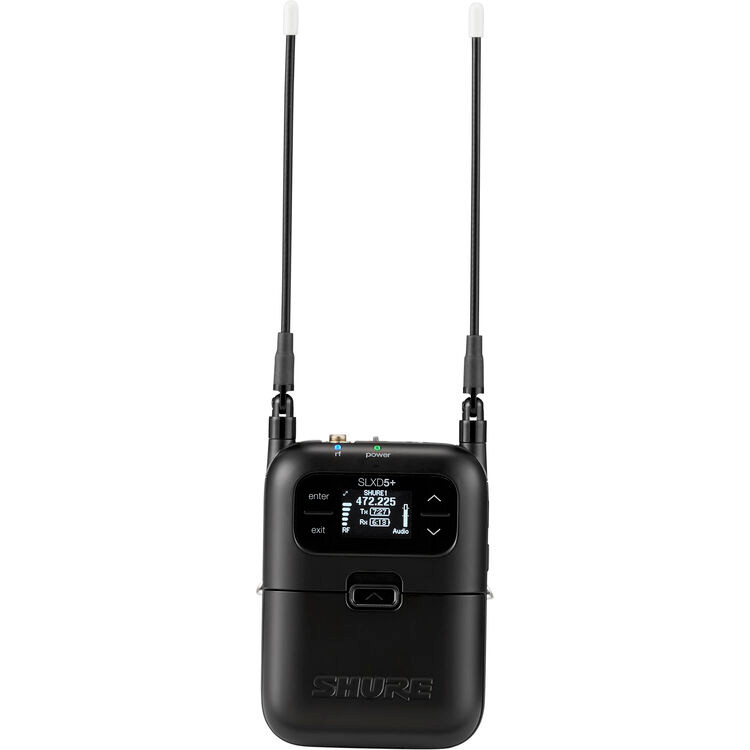

SLXD5+ Camera-Mount Digital Wireless Receiver
The SLXD5+ is a single-channel portable digital wireless receiver designed for on-camera cold-shoe mounting or audio-bag use. It delivers pristine 24-bit digital audio with rock-solid UHF RF performance and greater than 118 dB of dynamic range. Dual 3.5mm outputs provide a dedicated headphone monitoring output and a switchable mic/line output for direct connection to cameras, recorders, and mixers. A backlit LCD provides clear visibility of system status, making the SLXD5+ ideal for fast-paced mobile production environments.
Transparent Digital Audio and Expanded RF Performance
SLX-D+ delivers clean, detailed 24-bit digital audio with exceptional headroom. A wide 138 MHz tuning range (regionally dependent) provides greater geographical coverage and simplified frequency coordination. The system supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, enabling scalable multi-channel deployments, even in challenging RF environments.
ShowLink Ease Automated Wireless Management
ShowLink Ease enables real-time two-way communication between paired SLX-D+ receivers and transmitters using a dedicated control link. Once linked, transmitters automatically stay synchronized with receivers across power cycles and frequency changes. Users can remotely change transmitter frequency, adjust RF power, lock or unlock controls, deploy interference mitigation, and perform over-the-air firmware updates directly from the receiver or a paired mobile device.
Wireless Workbench Desktop and Mobile Control
The SLXD35+ integrates with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app for comprehensive system monitoring and control over Wi-Fi or Bluetooth. Users can scan and coordinate frequencies, manage transmitters via ShowLink Ease, and monitor RF and battery status from a centralized interface—ideal for broadcast crews and mobile production teams.
Secure Operation and Flexible Power Options
All SLX-D+ systems ship with AES-256 encryption enabled for secure wireless transmission. The SLXD3+ plug-on transmitter delivers up to 8 hours of operation using two AA batteries or an optional SB903 lithium-ion rechargeable battery. The SLXD5+ camera-mount receiver provides up to 5.5 hours of runtime using the same battery options and is compatible with Shure charging accessories (available separately).
Features
- 1-Channel Camera-Mount Receiver
- Plug-On Transmitter for XLR Microphones
- 12 to 48V Phantom for Condenser Mics
- ShowLink Ease Remote Transmitter Control
- Wide 138 MHz Frequency Band
- AES-256 Encrypted Digital Audio
- Wireless Workbench & Mobile App Control
- Up to 11 Systems per 6 MHz TV Band
- Transmitter 8-Hrs, Receiver 5.5 Hrs
Includes
- Shure SLXD35+ Digital Camera-Mount Wireless Plug-On Transmitter System (G57: 470 to 608 MHz)
- 2 x Carrying Bag
Specifications
System
| Wireless Technology | |
| Diversity | |
| RF Frequency Band | |
| Number of RF Channel Frequencies | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Dynamic Range | |
| Latency | |
| Encryption | |
| Built-In Recorder | |
| Timecode Support | |
| Mobile App Compatible |
Receiver
| Receiver Type | |
| Mounting Options | |
| Antenna | |
| Number of Audio Channels | |
| Audio I/O | |
| Network I/O | |
| USB/Lightning Connectivity | |
| Gain Range | |
| Display | |
| Power Requirements |
Transmitters
| Included Transmitters | |
| RF Output Power | |
| Antenna | |
| Input Level | |
| Audio I/O | |
| Bias/Plug-In & Phantom Power | |
| USB I/O | |
| Muting | |
| Auto-Level/Gain | |
| Sync Method | |
| Display |
Microphones
| Microphone Type |
Power
| Receiver Battery Type | |
| Receiver Battery Life | |
| Transmitter Battery Type | |
| Transmitter Battery Life | |
| Included Charging Case |
Charging Case
| AC/DC Power Adapter |
Physical
| Environmental Resistance | |
| Housing | |
| Dimensions | |
| Weight |
