Product Description

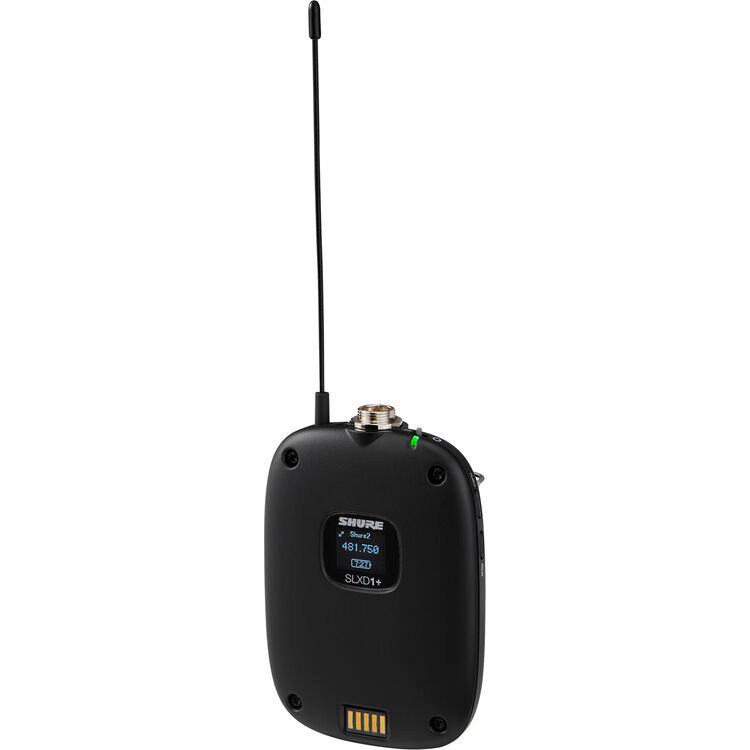

Shure SLXD1+=-G57 Digital Wireless Bodypack Transmitter (G57: 470 to 608 MHz)
Overview
The Shure SLXD1+ is a professional digital wireless bodypack audio transmitter designed for use with compatible SLX-D+ receivers in live sound, installed sound, broadcast, and presentation applications. It delivers transparent digital audio, expanded frequency coverage, and advanced remote management for reliable operation in demanding RF environments.
Compact Bodypack Design with TA4M Input

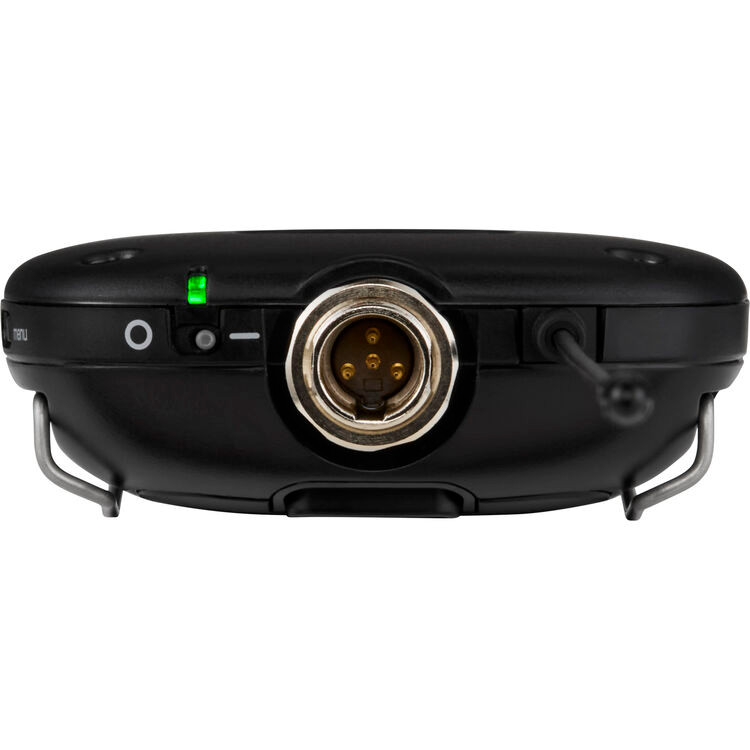

The SLXD1+ features a lightweight, low-profile ABS chassis with an integrated belt clip for comfortable, discreet wear. A locking TA4M connector supports a wide range of compatible lavalier, headset, and instrument microphones as well as Shure instrument cables for guitar and bass players. A front-panel LCD provides clear visibility of essential system status, including battery life, RF level, and frequency information.
Transparent Digital Audio and Expanded RF Performance
The SLX-D+ system delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range for clean, accurate sound reproduction. A wide tuning range of up to 138 MHz (regionally dependent) simplifies frequency coordination and supports up to 11 simultaneous systems per 6 MHz TV band and 14 per 8 MHz band, making it well suited for scalable multi-channel deployments.
ShowLink Ease and Wireless Workbench Control
ShowLink Ease enables real-time, two-way communication between paired SLX-D+ receivers and the SLXD1+ transmitter using BLE transmission. Once linked, the transmitter automatically follows receiver frequency changes and power cycles. Integration with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app allows for centralized monitoring, transmitter control, and system management.
Secure Operation and Flexible Power Options
The SLXD1+ supports AES-256 encryption for secure wireless transmission. It operates for up to 8 hours on two AA batteries (included) and is also compatible with the optional SB903 lithium-ion rechargeable battery, providing precise runtime readouts when used with compatible Shure charging accessories (available separately).
Features
- For Use with SLXD+ Receivers
- Use with Lav/Headset Mic or Instrument
- TA4M Locking Input Connector
- ShowLink Ease Remote Transmitter Control
- Wide 138 MHz Frequency Band
- 24-Bit Transparent Digital Audio
- AES-256 Encrypted Wireless Signal
- Up to 8-Hour Battery Runtime
Includes
- Shure SLXD1+ Digital Wireless Bodypack Transmitter (G57: 470 to 608 MHz)
- 2 x AA Battery
- Carry Bag
Specifications
System
| Wireless Technology | |
| Diversity | |
| RF Frequency Band | |
| Number of RF Channel Frequencies | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Dynamic Range | |
| Latency | |
| Encryption | |
| Built-In Recorder | |
| Timecode Support | |
| Mobile App Compatible |
Transmitters
| Included Transmitters | |
| RF Output Power | |
| Antenna | |
| Input Level | |
| Audio I/O | |
| Bias/Plug-In & Phantom Power | |
| USB I/O | |
| Muting | |
| Auto-Level/Gain | |
| Sync Method | |
| Display |
Microphone
| Microphone Type |
Power
| Transmitter Battery Type | |
| Transmitter Battery Life | |
| Included Charging Case |
Charging Case
| AC/DC Power Adapter |
Physical
| Environmental Resistance | |
| Housing | |
| Dimensions | |
| Weight |
