Product Description
Pathway Connectivity PWCTRL DIN PERFORM U4 Perform Architectural Controller, DIN-mount, 24VDC / PoE, DMX, sACN, 4 Universes
Overview
The Perform™ Controller delivers stunning effects, beautiful color and movement to your architectural spaces, whether indoor or outdoor. Controls up to 4 universes (2048 channels) of DMX/sACN.
With no programming expertise needed, leverage the power of Pathscape software to paint your space with color changes, tunable white, dynamic sequences and more.
Complete the solution with the Perform™ Touchscreen wall station for an easy user experience. Additionally, the Perform™ Remote app is available, letting users adjust lighting intensity, color temperature, and color, as well as activate Looks and view scheduled events via their mobile device when connected to the WiFi network.
Features
- Create static and dynamic Looks with ease as well as user defined timelines and shows with the free Pathscape software
- Operate a variety of White, RGB, RGBW, RGBx, Tunable White, HSI, Int/CCT and many more DMX lighting fixtures and devices
- Built-in logic engine to automate lighting rhythms, holiday Looks and scheduling of Conditions based on astronomical or time-clock events
- Cloud management through SixEye
- Compatible with the 5" or 8" Perform™ Touchscreen by Pathway Connectivity
- Equipped with two DMX512/RDM ports. Utilize the free Pathscape Software to address fixtures
- Supports up to 2048 channels of control utilizing DMX Ports, sACN, ssACN, Art-Net, and KiNET
- Out-of-Box test button for contractor to verify DMX
- 10 position rotary encoder to perform startup programs, test patterns and to disable the clock schedule.
Ordering Information

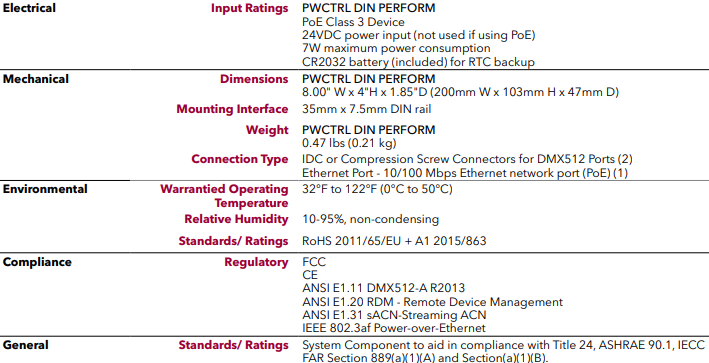

Specifications
