Product Description

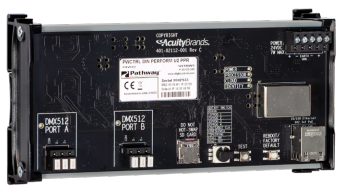

Pathway Connectivity PWCTRL DIN PERFORM U2 Perform Architectural Controller, DIN-mount, 24VDC
Overview
The Perform™ Controller by Pathway delivers stunning effects, beautiful color and movement to your architectural spaces, whether indoor or outdoor.
With no programming expertise needed the Pathscape software allows users to create spectacular architectural scenes using predefined dynamic looks or user crafted timelines. With the ability to control up to 4 universes (2048 channels) of DMX, the Perform Controller has the channel count and the flexibility to bring the aesthetics of color changes, tunable white, and dynamic sequences to your project.
Features
- Create static and dynamic Looks with ease as well as user defined timelines and shows with the free Pathscape software
- Operate a variety of White, RGB, RGBW, RGBx, Tunable White, HSI, Int/CCT and many more DMX lighting fixtures and devices
- Built-in logic engine to automate lighting rhythms, holiday Looks and scheduling of Conditions based on astronomical or time-clock events
- Cloud management through SixEye
- Compatible with the 5" or 8" Perform™ Touchscreen by Pathway Connectivity
- Equipped with two DMX512/RDM ports. Utilize the free Pathscape Software to address fixtures
- Supports up to 2048 channels of control utilizing DMX Ports, sACN, ssACN, Art-Net, and KiNET
- Out-of-Box test button for contractor to verify DMX
- 10 position rotary encoder to perform startup programs, test patterns and to disable the clock schedule.
Ordering Information

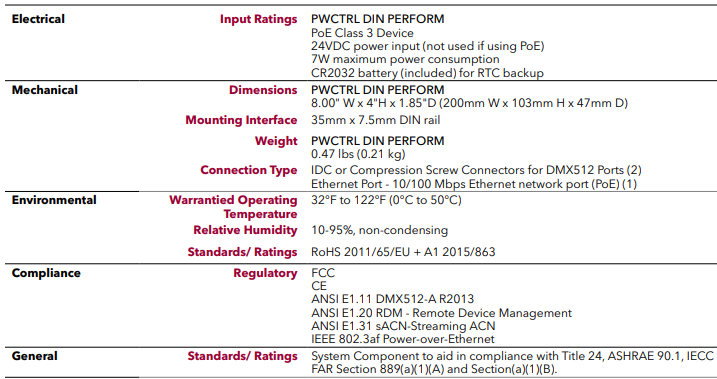

Specifications
