The Lightronics AB0602N is a non-dim (relay contact), switched HOT relay interface ballast driver designed for DMX-512 operation and for integration into Lightronics Unity Architectural Lighting Control systems. Installed between the control system and lighting loads, it provides centralized on/off control of multiple circuits through Unity Architectural remote stations, DMX-512 control input, or contact closures. This configuration supports reliable switched power control of non-dimmable lighting and other 120V devices.

Users can quickly recall preset lighting scenes while maintaining simple control through Unity Architectural wall stations or DMX-512 input. This allows consistent, repeatable operation in environments where ease of use is essential. In addition, the non-dimming relay design makes the unit ideal for applications where lighting or equipment requires only on/off control.

Integration into existing lighting systems is straightforward. The AB0602N supports Unity Architectural remote stations for simple preset scene control, while DMX-512 allows connection to broader lighting control systems. Softpatching simplifies system setup and addressing, and contact closure inputs expand control options for automated or external triggering. As a result, the unit works well in both new installations and retrofit applications where simple, reliable switching control is required.

Designed for dependable, long-term operation, the AB0602N delivers consistent performance in architectural lighting environments. Its durable construction and relay-based control make it a practical solution for facilities requiring straightforward operation, reliable switching, and long-term system stability.

Features

• 6 control channels, 2,400W per channel (14,400W total)
• Relay contact output with switched HOT control
• Compatible with Unity Architectural Lighting Control systems
• Supports Unity Architectural remote station control
• Supports DMX-512 control input
• Programmable for up to 64 preset lighting scenes
• Softpatch capability for flexible channel assignment
• Contact closure inputs for external control integration
• Nonvolatile memory retains scenes when powered down

Specifications

Weight	13.3 lbs
Dimensions	15 × 15 × 3.25 in
Communication Protocol	DMX-512, Unity Architectural Lighting Enabled (LitNet)
Channels	6
Wattage Per Channel	2400W
Load Control Type	Relay Contact
Input Power Type	Hardwired
Line Voltage	120V (USA)
Programmable Scenes	64 Programmable Scenes
Unity Architectural Lighting Enabled (LitNet)	Yes
Output Power Type	Hardwired
Load Voltage	120V (USA)
Mount Type	Wall
UL-Listing	UL-Listed

Other Details

All Lightronics products are warranted for a period of TWO/FIVE YEARS from the date of purchase against defects in materials and workmanship. This warranty is subject to the following restrictions and conditions: A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies. Warranty is valid only for the original purchaser of the unit. C) This warranty does not apply to damage resulting from abuse, misuse, accidents, shipping, and repairs or modifications by anyone other than an authorized Lightronics service representative. D) This warranty is void if the serial number is removed, altered or defaced. E) This warranty does not cover loss or damage, direct or indirect arising from the use or inability to use this product. F) Lightronics reserves the right to make any changes, modifications, or updates as deemed appropriate by Lightronics to products returned for service. Such changes may be made without prior notification to the user and without incurring any responsibility or liability for modifications or changes to equipment previously supplied. Lightronics is not responsible for supplying new equipment in accordance with any earlier specifications. G) This warranty is the only warranty either expressed, implied, or statutory, upon which the equipment is purchased. No representatives, dealers or any of their agents are authorized to make any warranties, guarantees, or representations other than expressly stated herein. H) This warranty does not cover the cost of shipping products to or from Lightronics for service. I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty without prior notification.

Shop by Category

Shop by Brand

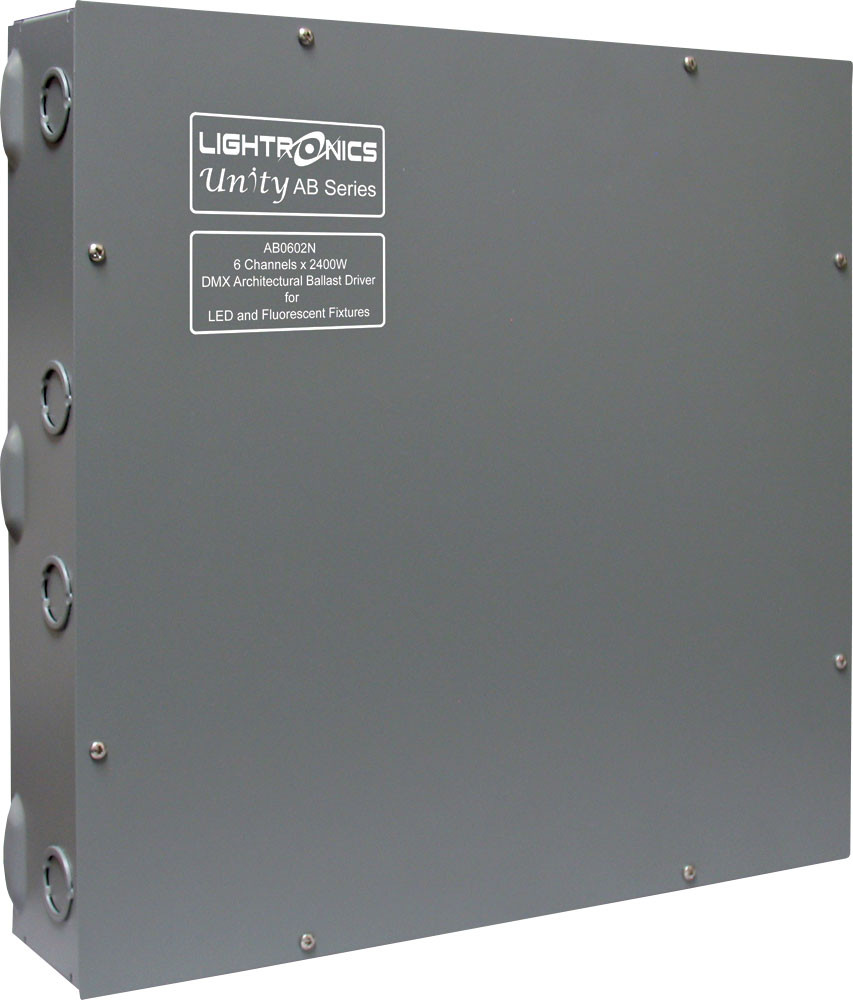

Lightronics AB0602N 6 Circuit, 2400 Watts Per Circuit Ballast Driver, Non-Dim, Switched Hot
