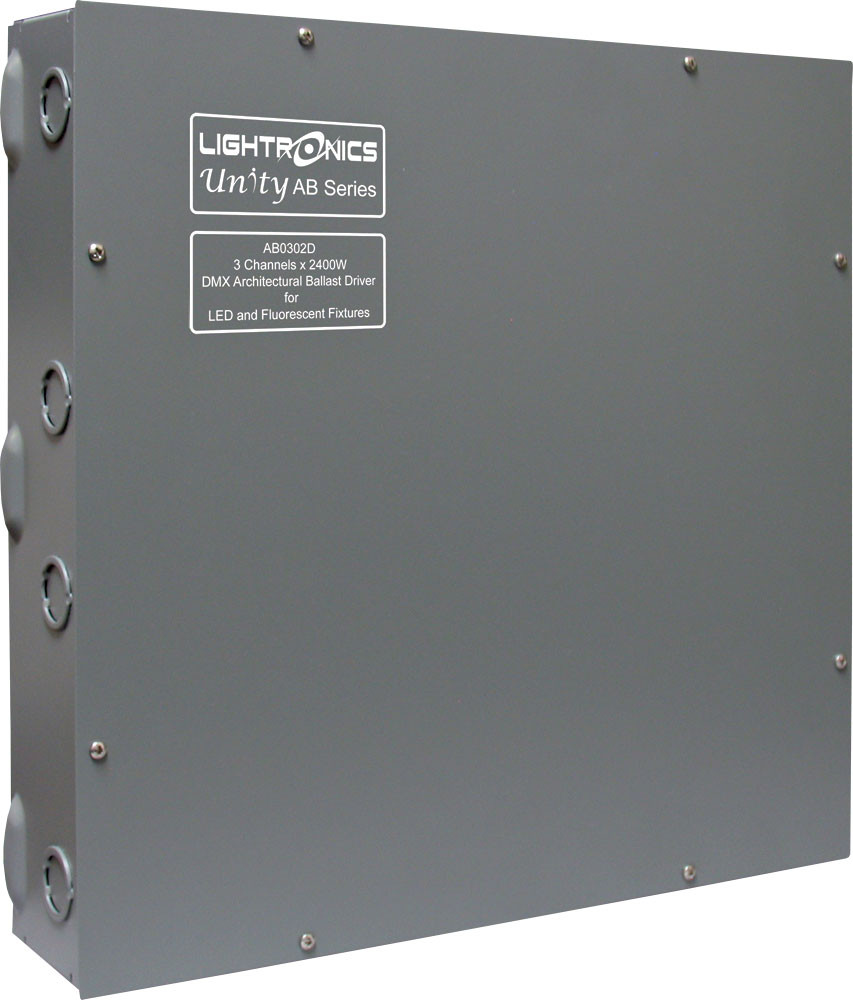

The Lightronics AB0302D is a D/C dimmed, 0–10V control interface ballast driver designed for DMX-512 operation and for integration into Lightronics Unity Architectural Lighting Control systems. Installed between the control system and lighting loads, it provides centralized control of dimmable fixtures through Unity Architectural remote stations, DMX-512 control input, or contact closures. Utilizing a 120VAC hot feed with a Class II 0–10VDC analog control signal, it supports low-voltage dimming control of LED and fluorescent lighting systems.

Users can quickly recall preset lighting scenes while maintaining simple control through Unity Architectural wall stations or DMX-512 input. This allows consistent, repeatable lighting operation in environments where ease of use is essential. In addition, the 0–10VDC dimming capability supports smooth, low-voltage control of modern LED and fluorescent lighting systems.

Integration into existing lighting systems is straightforward. The AB0302D supports Unity Architectural remote stations for simple preset scene control, while DMX-512 allows connection to broader lighting control systems. Softpatching simplifies system setup and addressing, and contact closure inputs expand control options for automated or external triggering. The unit can also operate as a relay-style device when only switched HOT control is required, providing added flexibility in mixed system applications.

Designed for dependable, long-term operation, the AB0302D delivers consistent performance in architectural lighting environments. Its durable construction and low-voltage dimming capability make it a practical solution for facilities requiring energy-efficient control, smooth dimming performance, and reliable system integration.

Features

3 control channels, 2,400W per channel (7,200W total)
0–10VDC Class II low-voltage dimming control
Compatible with Unity Architectural Lighting Control systems
Supports Unity Architectural remote station control
Supports DMX-512 control input
Programmable for up to 64 preset lighting scenes
Softpatch capability for flexible channel assignment
Contact closure inputs for external control integration
Nonvolatile memory retains scenes when powered down

Specifications

Weight	13.3 lbs
Dimensions	15 × 15 × 3.25 in
Communication Protocol	DMX-512, Unity Architectural Lighting Enabled (LitNet)
Channels	3
Wattage Per Channel	2400W
Load Control Type	D/C Dimming and D/C Non-Dimming
Input Power Type	Hardwired
Line Voltage	120V (USA)
Programmable Scenes	64 Programmable Scenes
Unity Architectural Lighting Enabled (LitNet)	Yes
Load Voltage	120V (USA)
Mount Type	Wall
UL-Listing	UL-Listed
Output Power Type	Hardwired

Other Details

All Lightronics products are warranted for a period of TWO/FIVE YEARS from the date of purchase against defects in materials and workmanship. This warranty is subject to the following restrictions and conditions: A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies. Warranty is valid only for the original purchaser of the unit. C) This warranty does not apply to damage resulting from abuse, misuse, accidents, shipping, and repairs or modifications by anyone other than an authorized Lightronics service representative. D) This warranty is void if the serial number is removed, altered or defaced. E) This warranty does not cover loss or damage, direct or indirect arising from the use or inability to use this product. F) Lightronics reserves the right to make any changes, modifications, or updates as deemed appropriate by Lightronics to products returned for service. Such changes may be made without prior notification to the user and without incurring any responsibility or liability for modifications or changes to equipment previously supplied. Lightronics is not responsible for supplying new equipment in accordance with any earlier specifications. G) This warranty is the only warranty either expressed, implied, or statutory, upon which the equipment is purchased. No representatives, dealers or any of their agents are authorized to make any warranties, guarantees, or representations other than expressly stated herein. H) This warranty does not cover the cost of shipping products to or from Lightronics for service. I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty without prior notification.
