Product Description
ILC ILC-SWX-874-ELV-WH Wireless Phase Dimming Load Controller, Line Voltage 120VAC, White
Overview
The SENSORWORX wireless phase dimming load controller links to remote occupancy
sensors, photocells, and companion switches without low voltage wiring in order
to provide both manual and automatic lighting control. With no minimum load
requirements, this dimmer is perfect for even the smallest lighting zone. Additionally,
at less than one inch deep, the unit is significantly shallower than typical dimmers.
This results in less crowded wall boxes and quicker installation. All SENSORWORX
products are proudly made in the USA.
Features
- Dims LED, CFL, ELV, & Incandescent Lighting Loads
- Selectable Reverse (default) and Forward Phase Dimming in Same Unit
- Enclosure is 25-40% Shallower than Other Wall Dimmers (< 1” Depth into Wallbox)
- Modern Look and Individual Easy-Tap Buttons for On, Off, Raise, & Lower
- Links in Seconds with Wireless Sensors & Remote Wall Stations
- Configurable Dimming Parameters including High/Low Trims, Turn on Levels, and Curve Types
Ordering Information

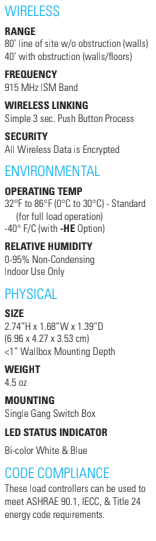

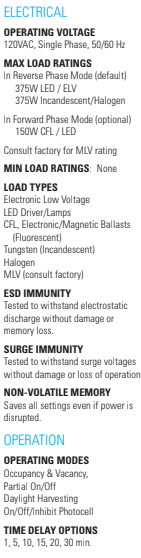

Specifications
