Product Description

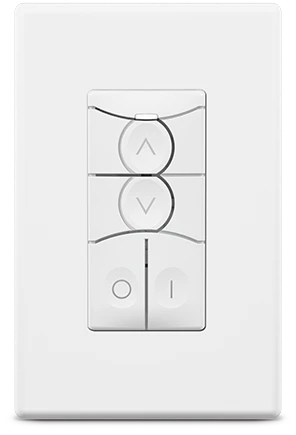

ILC ILC-SWX-864-ELV-WH Single Phase Dimmer Switch - Line Voltage 120VAC - Reverse Phase or Forward Phase - White
Overview
The SENSORWORX phase dimmer provides manual dimming control of 120V lighting
from a single location. With no minimum load requirements, this stand alone dimmer
is perfect for any lighting zone. Additionally, at less than one inch deep, the unit is
significantly shallower than typical dimmers. This results in less crowded wall boxes
and quicker installation. All SENSORWORX products are proudly made in the USA.
Features
- Dims LED, CFL, ELV, & Incandescent Lighting Loads
- Selectable Reverse (default) and Forward Phase Dimming in Same Unit
- Enclosure is 25-40% Shallower than Other Wall Dimmers (< 1” Depth into Wallbox)
- Modern Look and Individual Easy-Tap Buttons for On, Off, Raise, & Lower
- Configurable Dimming Parameters including High/Low Trims, & Turn on Levels
- White LED Indicator Changes Intensity as Dim Level is Adjusted
Specifications
Electrical
OPERATING VOLTAGE 120VAC, Single Phase, 50/60 Hz
MAX LOAD RATINGS
In Reverse Phase Mode (default)
375W LED/ELV
375W Incandescent/Halogen
In Forward Phase Mode (optional)
150W CFL/LED
Consult Factory for MLV rating
MIN LOAD RATINGS
None
LOAD TYPES LED Driver/Lamps, CFL, Electronic/Magnetic Ballasts (Fluorescent) Electronic Low Voltage (-ELV model) Tungsten (Incandescent) Halogen MLV (consult factory)
ESD IMMUNITY Tested to withstand electrostatic discharge without damage or memory loss.
SURGE IMMUNITY Tested to withstand surge voltages without damage or loss of operation.
NON-VOLATILE MEMORY Saves all settings even if power is disrupted.
Physical
SIZE 2.74”H x 1.68”W x 1.39”D
(6.96 x 4.27 x 3.53 cm)
<1” Wallbox Mounting Depth
WEIGHT 4.5 oz
MOUNTING Single Gang Switch Box
LED STATUS INDICATOR Bi-color White & Blue
Environmental
OPERATING TEMP 32°F to 86°F (0°C to 30°C)
(for full load operation)
RELATIVE HUMIDITY 0-95% Non-Condensing,
Indoor Use Only
