Product Description

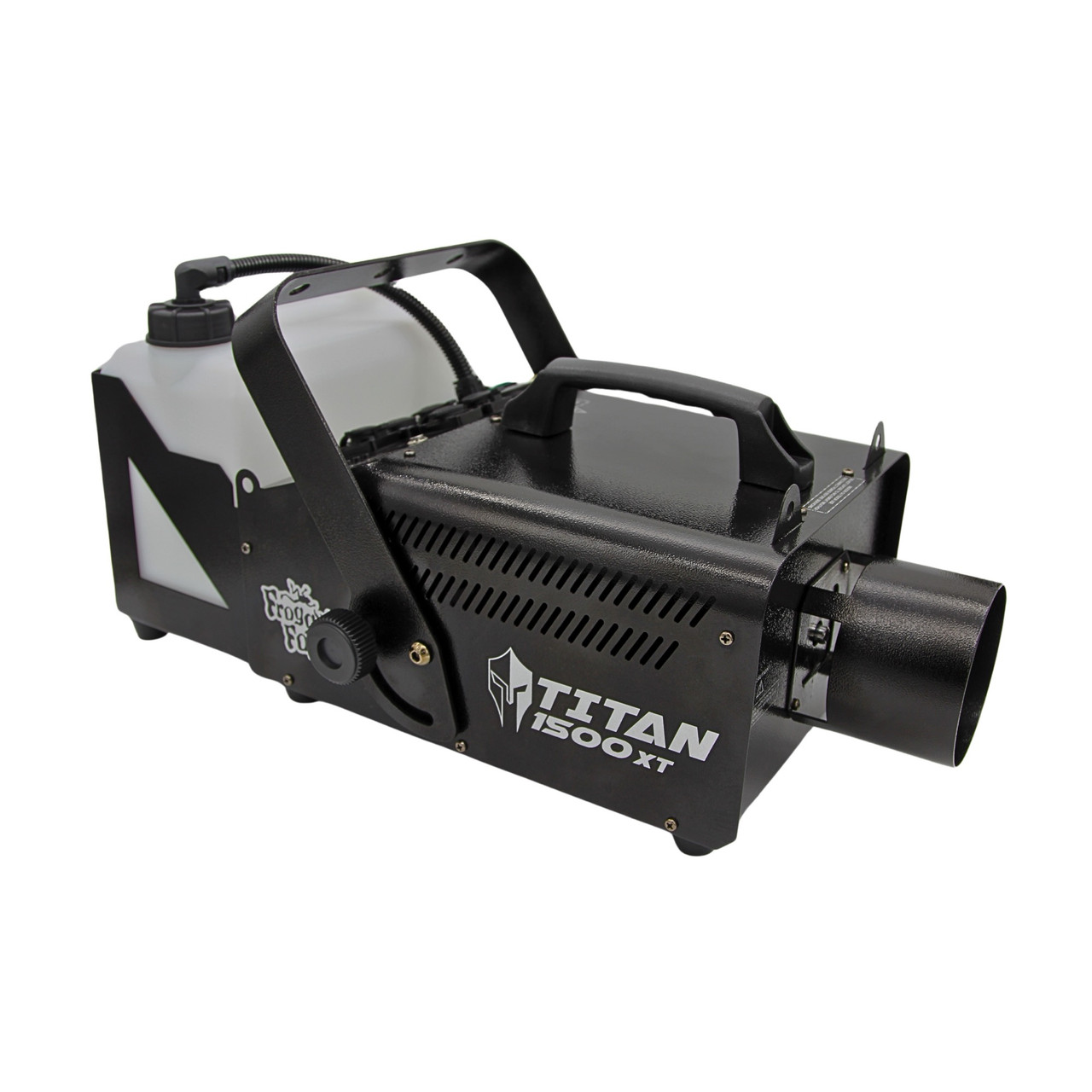

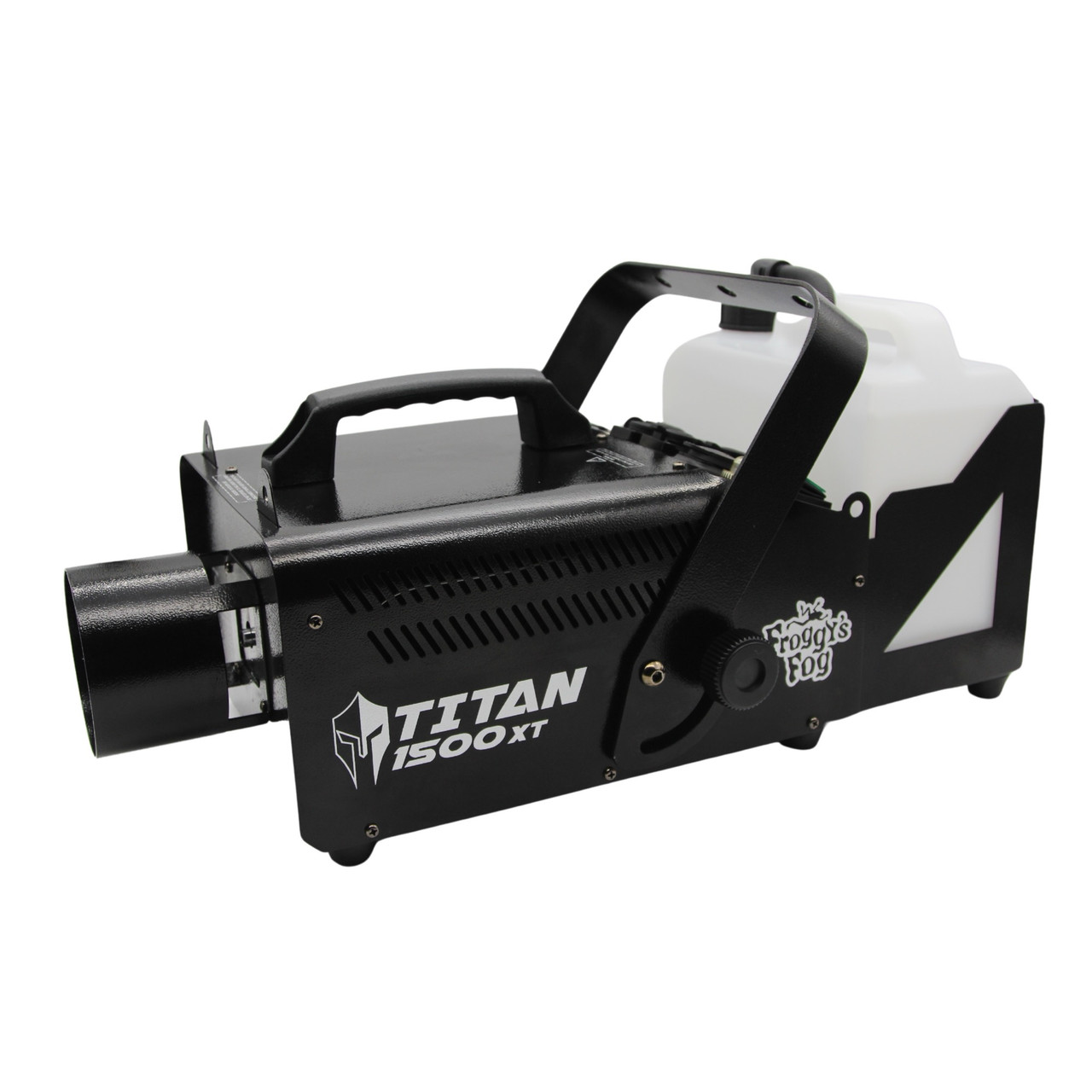

Froggy's Fog FFM-TITAN-1500-XT Titan 1500 XT Fog Machine, Extra Tough Edition

Overview

Titan fog machines from Froggy’s Fog are great for when you need a lot of fog fast. Upgraded from the Titan 1500 DMX, the 1500 XT includes IP rated connectors and a locking remote port. Whether you make films, work in the haunted attraction industry, or want to add atmosphere to you venue; the Titan lineup brings versatility at a reasonable price that is sure to deliver amazing effects across multiple applications.

Includes

Fluid reservoir, 5L Tank
Froggy's Fog Wired Controller
Power input cable: Blue PowerCon

Specifications

Physical
Length: 21.3 in. Box: 25.5 in.
Width: 12 in. Box: 14.4 in.
Height: 11.5 in. Box: 13.6 in.
Net Weight: 23.5 lbs Gross: 28.7 lbs.

Performance
Fluid consumption (100%): 100 ml/min
Maximum operating time, maximum output: 49 min
Ready time: 4 Min initial, 10 Sec. Reheat

Control and Programming
Control options: DMX, Wired Timer Remote
Control parameters: Continous or timer-controlled output
Fog Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing

Construction
Housing: Steel and aluminum
Color: Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir
Hanging bracket: Integrated yoke with safety attachment point
Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal

Connections
AC Power: IP Rated Tru1 Locking
DMX, link mode in/out: 3 and 5-pin locking XLR
Remote control: Locking Timer Remote

Electrical
US Model: AC power: 120 V, 60 Hz
Main fuse: 15A, 150 V
Typical power and current: 1550 W
