Product Description
Froggy's Fog FFM-TITAN-1500-DMX Titan 1500 DMX Fog Machine
Overview
The Titan® 1500 DMX is a powerful 1550W Fog Machine with over 25,000 CFM. The 1500 DMX features both 3 and 5 pin DMX, 4 Button Control Panel with LED SSD and timer functions. The Oversized Heater Core increases run times, Quick Ready Fog Technology (QRFT) has you ready to fog in less than 10 seconds after full cycle and it is ready to fog, and Advanced Low Fluid Sensing shuts down the machine when you run out of fluid to protect the heater core.
Features
- 1,550W Heater Core
- 25,000 CFM
- Oversized Heater Core for increased run times
- Quick Ready Fog Technology (QRFT) - Less than 10 seconds after full cycle and it is ready to fog
- Advanced Low Fluid Sensing
- Blue Powercon Connection
- 4 Button Control Panel with LED SSD
- 3” Venturi Style Nozzle Connection
Specifications
| Physical Length: 21.3 in. Box: 25.5 in. Width: 12 in. Box: 14.4 in. Height: 11.5 in. Box: 13.6 in. Net Weight: 23.5 lbs Gross: 28.7 lbs. Performance Fluid consumption (100%): 102ml/min Maximum operating time, maximum output: 49 min Ready time: 4 Min initial, 10 Sec. Reheat Control and Programming Control options: DMX, Wired Remote, Wireless Remote, Timer Control parameters: Continous or timer-controlled output Fog Variable output control, 0-100% DMX channels: 1 External fluid control: Fluid sensing Construction Housing: Steel and aluminum Color: Black Fluid pump: Dual oscillating piston, high pressure Fluid reservoir: 5L drop-in reservoir Hanging bracket: Integrated yoke with safety attachment point Installation Mounting: Standing or hanging Orientation: Up to +/-40° from horizontal |

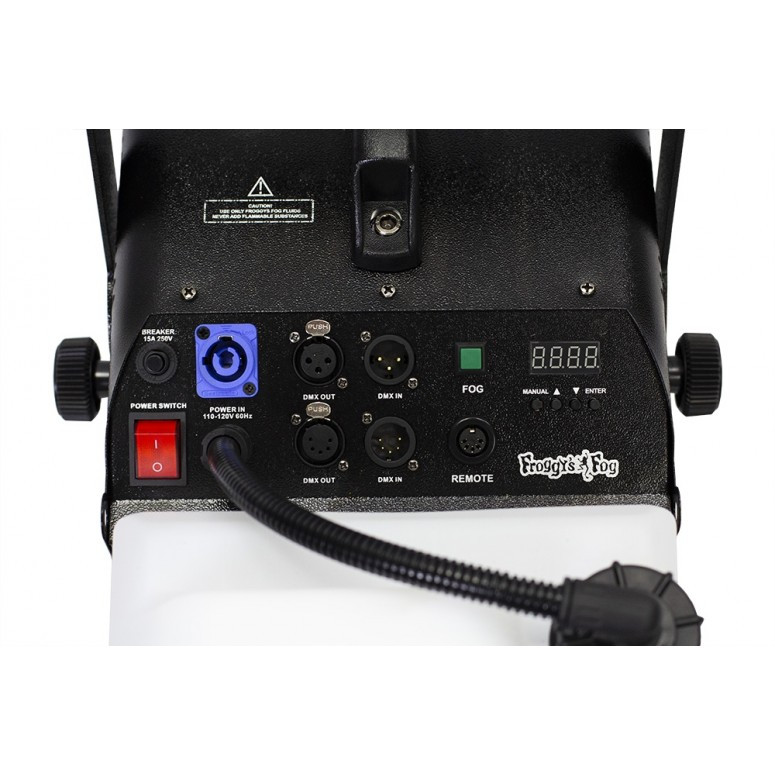

Connections
AC Power: Blue PowerCon
DMX, link mode in/out: 3 and 5-pin locking XLR
Remote control: Froggy's Timer Remote
Electrical
US Model: AC power: 120 V, 60 Hz
Main fuse: 15A, 150 V
Typical power and current: 1550 W
