Product Description

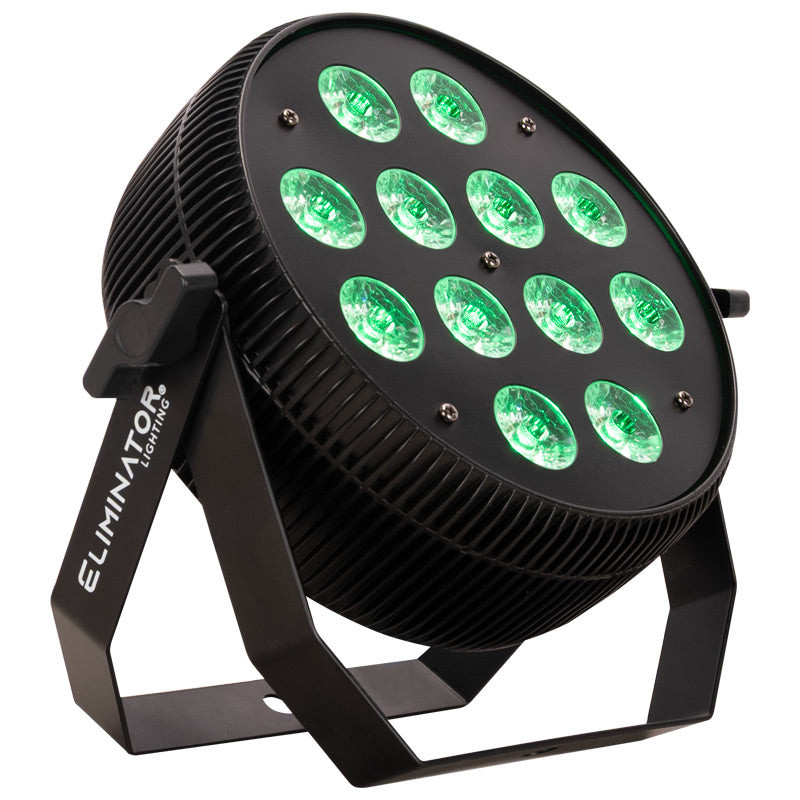

Eliminator Lighting LP HEX 12 PLUS RGBWA+UV LED Par Fixture
Overview
The Eliminator LP HEX 12 PLUS is a compact, high-output LED wash fixture engineered to deliver brilliant color performance for DJs, bands, production companies, theaters, houses of worship, and event venues. Equipped with 12 powerful 18W RGBWA+UV 6-in-1 LED's, it produces vibrant saturated colors, crisp whites, rich UV effects, and smooth pastel tones with excellent color mixing.
A 25° beam angle provides even wash coverage while maintaining strong output, making the fixture ideal for stage lighting, uplighting, wall washing, and special event applications. Built-in white light balance adjustment allow users to fine-tune output for consistent color reproduction across multiple fixtures.
The LP HEX 12 PLUS offers flexible operation with DMX512, Primary-Secondary, Auto Run, and Sound Active modes. Two DMX channel modes (6 or 10 channels) provide simple or expanded control options, while the onboard 4-digit, 7-segment LED display allows for quick and easy setup. Smooth 0–100% linear dimming and a high-speed electronic strobe add creative flexibility for dynamic lighting effects.
Constructed with a rugged metal housing, the fixture is designed for reliable indoor use in both portable and permanent installations. Locking power input/output connectors and 3-pin XLR DMX connections make setup simple and dependable, while universal auto-switching power ensures compatibility worldwide.
Specifications
SOURCE:
- 12 × 18W RGBWA+UV 6-in-1 LED's
PHOTOMETRIC DATA:
- 25° Beam Angle
- Pure Color Output
- Excellent Color Mixing
- Smooth Wash Output
COLOR:
- RGBWA+UV 6-in-1 Color Mixing
- White Light Balance Setting
EFFECTS:
- 0–100% Linear Electronic Dimming
- High-Speed Synchronous Strobe
CONTROL / CONNECTIONS:
- 2 DMX Channel Modes (6 / 10 Channels)
- DMX512
- Primary-Secondary Mode
- Auto Run Mode
- Sound Active Mode
- 4-digit, 7-segment LED display
- 3-pin XLR DMX In/Out
- Indoor Locking Power In/Out
SIZE / WEIGHT:
- Length: 8.27" (210mm)
- Width: 9.84" (250mm)
- Height: 7.48" (190mm)
- Weight: 5.51 lbs. (2.5kg)
ELECTRICAL / THERMAL:
- AC 100-240V, 50/60Hz
- Max Power Consumption: 110W
- Temperature Control Protection
CONSTRUCTION:
- Durable Metal Housing
APPROVALS / RATINGS:
- IP20
